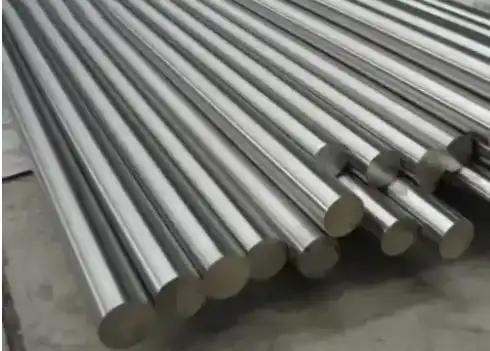

Grade 12 Titanium Round Bar
Sheet & Plate: ASTM B265 Gr12
Heat Exchanger Tube: ASTM B338 Gr12
Bars: ASTM B348 Gr12
Castings: ASTM B367 Gr12
Forgings: ASTM B381 Gr12
Nuts: ASTM F467 Gr12
Bolts: ASTM F468 Gr12
Description
Grade 12 Titanium Round Bar is a type of Commercially Pure with 0.8% Ni and 0.3%Mo light alloyed Titanium (Ti-0.8Ni-0.3Mo). The additives of 0.3% Mo and 0.8% Ni to titanium increase corrosion resistance at a lower cost than Pd (see Ti Grades 7 and 11). Moreover, the sample was annealed for 20 min. at 815°C and 5 min. at 788°C. Grade 12 is with higher strength than unalloyed Ti grade 1 to grade 4, yet still formable. Besides, Ti-Gr.12 has an equiaxed alpha microstructure, with acicular alpha, primarily in welds or heat-affected zones, with small amounts of beta.
The specified Features of Titanium Grade 12 are as follows: Highly weldable, near-alpha alloy, exhibiting improved strength and temperature capability over CP combined with superior crevice corrosion resistance and excellent resistance under oxidizing to mildly reducing conditions, especially chlorides.
Titanium Grade 12 (UNS R53401) Density:
| Physical Properties | Metric |
| Density | 4.52 g/cc |
Grade 12 Titanium Round Bar Mechanical Properties:
| Mechanical Properties | Metric |
| Hardness, Brinell | 180 |
| Tensile Strength, Ultimate | 620 MPa |
| Tensile Strength, Yield | 450 MPa |
| Elongation at Break | 0.22 |
Ti-Grade 12 Chemical Composition:
| Elements | Metric |
| Molybdenum, Mo | 0.003 |
| Nickel, Ni | 0.008 |
| Titanium, Ti | 0.989 |
Applications:
Chemical processing, in mildly reducing or variable oxidizing-reducing media – containers, heat exchangers, pumps, valves, pipes and fittings, Condenser tubes, heat transfer tubes, piping, linings, electrolysis vessels, industrial components, tubing, CPI equipment.
Available Products Forms:
Billet, bar, rod, plate, sheet, strip and tubing.
Specifications
Sheet & Plate: ASTM B265 Gr12
Heat Exchanger Tube: ASTM B338 Gr12
Bars: ASTM B348 Gr12
Castings: ASTM B367 Gr12
Forgings: ASTM B381 Gr12
Nuts: ASTM F467 Gr12
Bolts: ASTM F468 Gr12
|
|
Packing & Shipping |
|
1. Accept the request/customized packing |
|
|
2. Normally, goods will packed in poly bags, drawstring bags, carrying bags, and cartons |
|
|
3. For the Grade 12 Titanium Round Bar sample, we will use TNT, Fedex, UPS, DHL, etc to ship it, |
|
|
4. For bulk, it depends on the qty, by air, by train or by sea are all available. |
