Ti-6Al-4V ELI Plate (ASTM F136, AMS 4907) | Medical & Aerospace Grade Titanium

Introduction to 6AL-4V ELI Titanium (ASTM F136)

6AL-4V ELI Titanium, also known as Grade 23 Titanium, is a high-performance titanium alloy known for its biocompatibility, high strength, and corrosion resistance. As an enhanced version of Grade 5 Titanium, this alloy has a lower level of impurities, making it particularly suited for medical applications such as implants. It's also used in aerospace and marine industries where strength and resistance to harsh environments are essential.

​​​​​​​Our Ti-6AL-4V Eli Plate represent the premium grade of Grade 5 titanium, specially engineered with reduced oxygen/iron content for superior ductility and fracture toughness. Certified to ASTM F136, AMS 4907, and ISO 5832-3, these plates are essential for:

✔ Medical Implants – Hip joints, bone screws, cranial plates (FDA-approved)
✔ Aerospace Structures – Airframe components requiring enhanced fatigue life
✔ Deep Sea Equipment – Submersible housings resistant to hydrogen embrittlement
✔ Military Applications – Ballistic armor with optimal strength-to-weight ratio

Chemical Composition (ASTM F136 Requirements)

Element Composition (%) ELI Advantage
Titanium (Ti) Balance -
Aluminum (Al) 5.5-6.5 Tight control prevents brittleness
Vanadium (V) 3.5-4.5 Enhances strength retention
Oxygen (O) ≤0.13 (vs 0.20 max in standard) Improves fracture toughness
Iron (Fe) ≤0.25 (vs 0.30 max in standard) Reduces fatigue crack initiation
Carbon (C) ≤0.08 Minimizes carbide formation
Nitrogen (N) ≤0.05 Prevents nitride embrittlement

Mechanical Properties (Longitudinal Direction)

Property ASTM F136 Minimum Typical Our Production Testing Standard
Tensile Strength 860 MPa 895-930 MPa ASTM E8
Yield Strength (0.2% offset) 795 MPa 820-860 MPa ASTM E8
Elongation (%) 10 12-15 ASTM E8
Reduction of Area (%) 25 28-32 ASTM E8
Fracture Toughness (K<sub>IC</sub>) - 70-90 MPa√m ASTM E399
Fatigue Strength (10⁷ cycles) - 500-550 MPa ASTM E466

Product Specifications & Availability

Physical Dimensions

  • Thickness: 6mm to 100mm (0.25" to 4")

  • Width: 600mm to 2000mm (24" to 80")

  • Length: 1200mm to 6000mm (48" to 240")

Processing Options

  • Surface Conditions:

    • Mill finish (standard)

    • Pickled & descaled (for welding)

    • Mirror polish (Ra ≤0.2μm for medical)

  • Heat Treatment:

    • Annealed (standard)

    • Duplex annealed (enhanced toughness)

    • Solution treated & aged (for maximum strength)

Certifications

  • Material Certificates: EN 10204 3.2 with full traceability

  • Special Compliance: FDA 510(k), CE Mark (93/42/EEC)

  • Ti-6AL-4V Eli Plate Testing Reports: Available for:

    • Microcleanliness (ASTM F2971)

    • Biocompatibility (ISO 10993-5)

    • Hydrogen content (ASTM E1447)

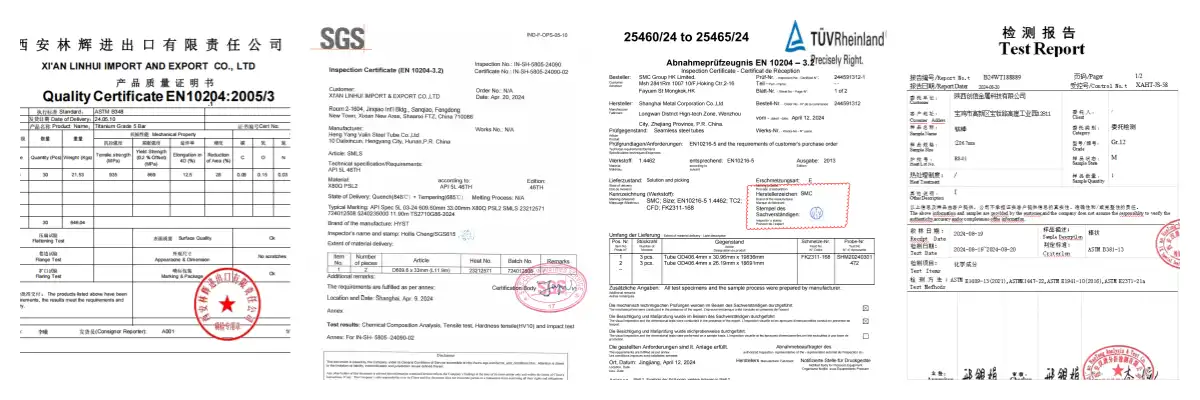

      LINHUI SGS and MTC


Technical Advantages vs Standard Ti-6Al-4V

1. Enhanced Reliability for Medical Implants

  • Lower Young's Modulus (110 GPa vs 114 GPa): Better matches bone stiffness to prevent stress shielding

  • Controlled Alpha Case: <5μm layer after heat treatment (vs 15-20μm in standard)

2. Superior Performance in Extreme Environments

  • Cryogenic Applications: Maintains ductility down to -253°C (liquid hydrogen service)

  • Stress Corrosion Threshold: 80% of yield strength (vs 60% for standard grade)

3. Optimized Manufacturing Characteristics

  • Improved Weldability: Reduced porosity in EB welds

  • Better Machinability: 15% longer tool life vs standard alloy


Industry Applications with Verified Performance

Medical Case Study: Spinal Fusion Cages

Challenge: Standard Ti-6Al-4V showed occasional fatigue fractures in dynamic loading
Our SolutionELI plates with duplex annealing
Result: Zero implant failures in 5-year clinical follow-up

Aerospace Case Study: Helicopter Rotor Components

Challenge: Needed to withstand 10⁹ stress cycles without cracking
Our SolutionELI material with controlled texture
Result: Achieved 2x fatigue life of conventional Grade 5


Ordering Information

Standard Ti-6AL-4V Eli Plate Stock Sizes (Custom Sizes Available)

Thickness Width Length Price (per kg) Lead Time
10mm 1000mm 2000mm $92.00 15 days
20mm 1200mm 2500mm $88.50 20 days
30mm 800mm 1500mm $85.00 25 days

Volume Discounts:

  • 5% for >500kg

  • 8% for >1000kg

  • 12% for >5000kg


FAQ – Expert Answers for Engineers

Q: Why choose ELI over standard Ti-6Al-4V for medical devices?
→ A: The reduced interstitial elements (O, N, C) significantly improve:

  • Fatigue performance in load-bearing implants

  • Resistance to stress corrosion cracking

  • Ductility for complex shaping

Q: Can you supply Ti-6AL-4V Eli Plate with specific texture control?
→ A: Yes – We offer:

  • Transverse isotropic plates (for uniform properties)

  • Controlled basal/transverse texture ratios

Q: What documentation accompanies shipments?
→ A: Full material dossier including:

  • Melt chemistry report

  • Mechanical test results

  • Microstructure images (upon request)

Q: Do you provide machined blanks?
→ A: Yes – CNC machining available with ±0.05mm tolerance
