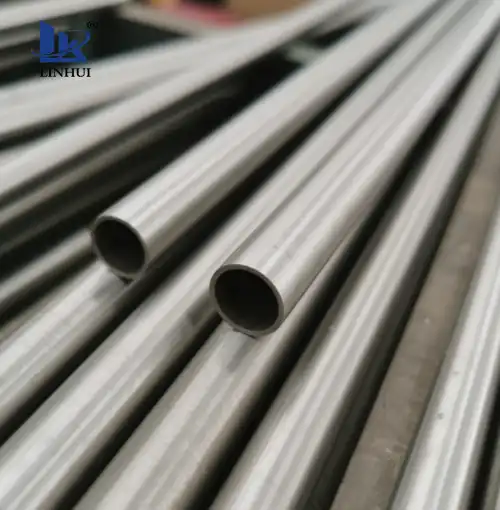

Titanium Alloy Tube – High-Performance Piping Solution
XI AN LINHUI operates two specialized factories with 30 titanium metal production lines, delivering 800 tons annually. With 21 years of titanium metal manufacturing expertise, we maintain systematic quality control certified by ISO/SGS/TUV. Our Titanium alloy tube products are engineered to solve critical challenges in high-pressure, corrosive, and weight-sensitive applications where standard materials fail.
Our fabricating coordinating alpha-beta stage microstructure optimization, conveying pliable quality surpassing 895 MPa whereas keeping up 55% weight decrease versus steel. We offer adaptable conveyance through DHL, FEDEX, discuss cargo, and ocean cargo with stock orders transported inside 3–7 days.
Key Features & Benefits
Superior Strength-to-Weight Ratio
Our item accomplishes aerospace-grade execution at essentially decreased mass. Review 5 (Ti-6Al-4V) conveys 895 MPa malleable strength—ideal for payload-sensitive systems.
Exceptional Erosion Resistance
Eliminates setting and push erosion breaking in chloride situations. Review 12 (0.3% Moment, 0.8% Ni) outflanks 316L stainless in acidic media.
High-Temperature Stability
Maintains auxiliary judgment up to 600°C, where aluminum combinations lose quality. Culminate for deplete frameworks and warm preparing gear.
Specifications
| Parameter | Details |
|---|---|
| Material Grades | Grade 2 (CP), Grade 5 (Ti-6Al-4V), Grade 7 (Ti-Pd), Grade 9 (Ti-3Al-2.5V) |
| Outer Diameter | 5mm – 300mm |
| Wall Thickness | 0.5mm – 30mm |
| Length | Customizable (up to 12 meters) |
| Surface Finish | Polished, pickled, or as-rolled |
| Standards | ASTM B338, AMS 4928, ASME SB338, ISO 5832-2 |
Manufacturing Process
Cold Rolling & Annealing
Controlled cold rolling achieves ±0.05mm thickness tolerance. Subsequent vacuum annealing refines grain structure for consistent forming performance.
Seamless Extrusion (ASTM B861)
Eliminates weld seams and corrosion weak points. Ideal for high-pressure hydraulic and pneumatic systems.
TIG Welded (ASTM B862)
Filler-free tungsten inert gas welding maintains base metal corrosion resistance throughout the weld zone.

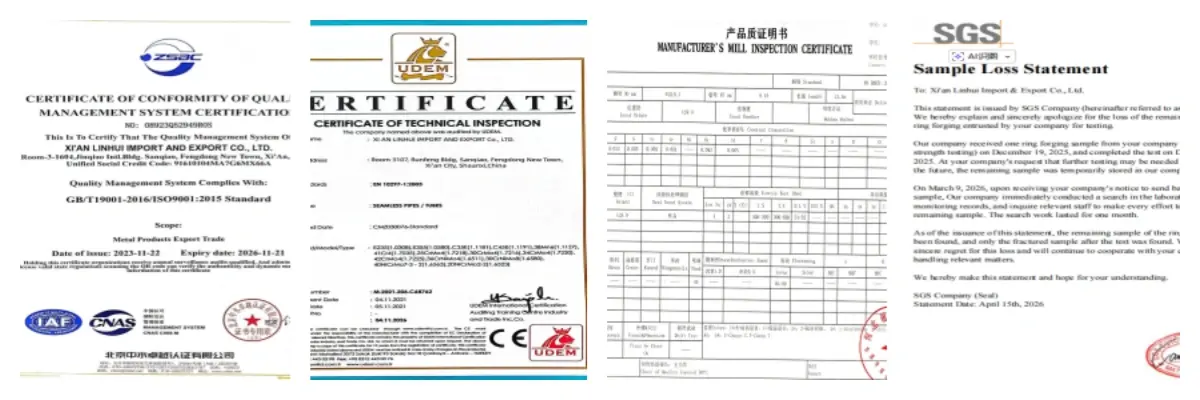

Quality Inspection
100% Non-Destructive Testing
Every Titanium alloy tube undergoes ultrasonic testing (ASTM E213) and eddy current testing (ASTM E426) to detect internal defects and surface cracks.
Mechanical Integrity Verification
Flare and flattening tests confirm ductility. Hydrostatic testing at 1.5× working pressure ensures zero-leakage performance.
Chemical & Microstructure Analysis
ICP-OES verifies alloying element ratios. Interstitial impurities (O, N, H) are controlled below 150 ppm to prevent brittleness.
Applications
· Aerospace: Hydraulic lines, engine ducting
· Chemical Processing: Heat exchangers, reactor coils
· Marine Engineering: Subsea piping, desalination systems
· Medical Devices: Surgical instruments, implantable components
· Oil & Gas: Offshore risers, downhole tubing
Export Markets
We have effectively conveyed to 60+ nations counting USA, Germany, Canada, UAE, Japan, South Korea, and Australia. Long-term organizations with PETRONAS, LUKOIL, and PDVSA approve our reliability.
Why Choose Us?
Direct Process Supply
Factory-direct estimating kills go betweens. Full warm number traceability with EN 10204 3.1/3.2 certificates.
Engineering Support
In-house metallurgists give fabric determination interview and custom manufacture guidance.
Flexible MOQ
Trial orders begin from 100 kg. Stock stock surpasses 200 tons for prompt shipment.

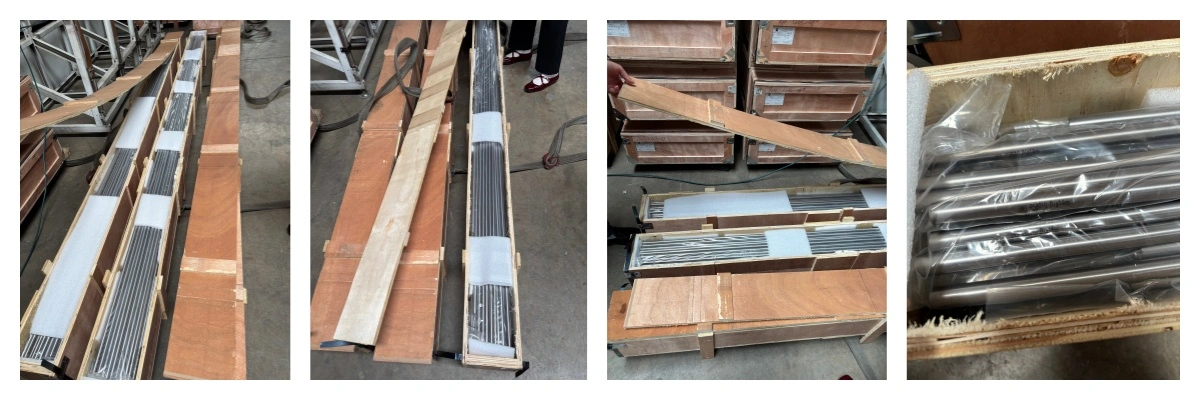

Packaging & Shipping
Tubes are stuffed in wooden cases with froth cushioning. Each bundle is wrapped in waterproof film and labeled with warm numbers. Shipping through DHL, FEDEX, discuss cargo, or ocean cargo based on your urgency.
FAQ
Q: What's the contrast between consistent and welded tubes?
A: Consistent (B861) has no weld crease, advertising higher weight appraisals. Welded (B862) employments filler-free TIG welding for fetched effectiveness without compromising erosion resistance.
Q: Can you give fabric test certificates?
A: Yes. EN 10204 3.1 certificates are standard. Third-party assessment (SGS, TÜV, DNV) accessible upon request.
Q: What's your lead time for custom sizes?
A: Stock things dispatch in 3–7 days. Custom orders require 25–40 days depending on complexity.
Q: Do you back little trial orders?
A: Completely. Our least arrange amount is 100 kg for stock grades.
Request a Quote
Need Titanium alloy tube for your next project? Contact our engineering team at linhui@lhtitanium.com for technical consultation and competitive pricing. Fast response within 4 hours.
