Titanium Alloy Grade 9 – High-Strength Lightweight Tubing & Sheet Solutions
XI AN LINHUI IMPORT AND EXPORT Co., LTD. supplies premium Titanium Alloy Grade 9 (Ti-3Al-2.5V / UNS R56320) conforming to ASTM B861, B862, B338, B265, and B348 standards. Our annealed-condition products bridge the gap between commercially pure titanium and Grade 5, delivering 20-50% higher tensile strength than CP grades while maintaining superior cold formability.
Available in pipes/tubes (OD 3.2–219mm, WT 0.5–10mm), sheets/plates (Thk 0.5–30mm), and bars (Φ6–150mm), our factory-direct supply ensures thickness tolerance within ±0.05mm and 100% NDT inspection for zero-defect quality control across aerospace hydraulic systems and marine applications.
Key Features & Benefits
Superior Strength-to-Weight Ratio
Grade 9 achieves tensile strength of 620–860 MPa while maintaining a density of just 4.48 g/cm³. You get 40% weight reduction versus steel without compromising structural integrity.
Excellent Cold Workability
Unlike high-strength Grade 5, this alloy allows seamless tube drawing and complex bending operations. Your production benefits from reduced processing costs and shorter lead times.
Marine-Grade Corrosion Resistance
Proven immunity to crevice corrosion in seawater and chloride environments. You eliminate maintenance downtime in offshore and subsea installations.
Titanium Alloy Gr.9 Density
| Physical Properties | Metric |
| Density | 4.48 g/cc |
Ti3Al2.5V Mechanical Properties
| Mechanical Properties | Metric |
| Hardness, Vickers | 300 |
| Tensile Strength, Ultimate | 620 MPa |
| Tensile Strength, Yield | 530 MPa |
| Elongation at Break | 0.2 |
| Charpy Impact | 92.0 J |
Chemical Composition
| Elements | Metric |
| Aluminium, Al | 2.5 – 3.5 % |
| Carbon, C | <= 0.050 % |
| Hydrogen, H | <= 0.015 % |
| Iron, Fe | <= 0.20 % |
| Nitrogen, N | <= 0.030 % |
| Other, each | <= 0.050 % |
| Other, total | <= 0.30 % |
| Oxygen, O | <= 0.15 % |
| Titanium, Ti | 92.755 – 95.5 % |
| Vanadium, V | 2.0 – 3.0 % |

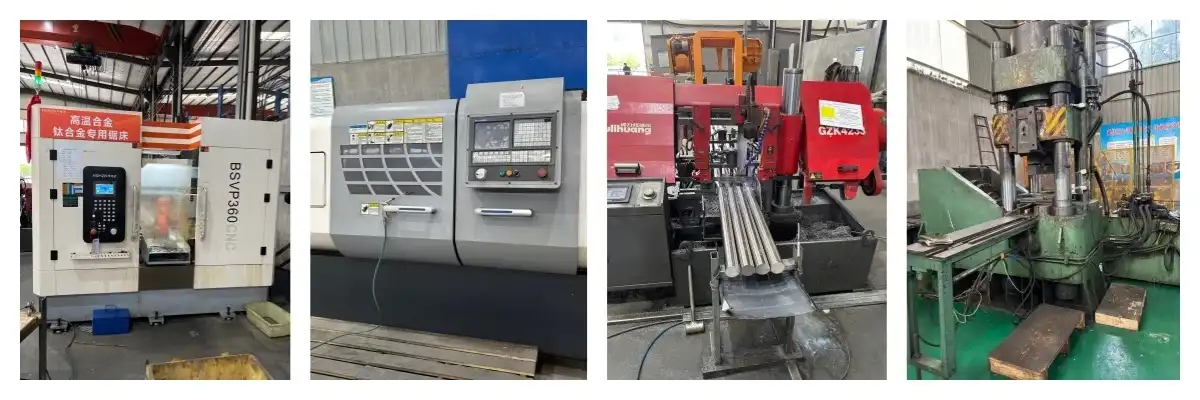

Manufacturing Process
Step 1: Controlled Forging
Ingots undergo multi-stage forging at 850-950°C to refine grain structure and eliminate internal voids.
Step 2: Cold Rolling/Drawing
Pipes achieve ±0.05mm dimensional accuracy through precision cold-drawing equipment. Sheets undergo controlled rolling for uniform thickness distribution.
Step 3: Annealing Treatment
Stress-relief annealing at 650-750°C for 2-4 hours ensures consistent mechanical properties and removes residual stresses.
Step 4: Surface Treatment
Acid pickling removes scale while preserving corrosion resistance. Optional electropolishing achieves Ra 0.4μm surface finish for hygienic applications.
Quality Inspection
· 100% Ultrasonic Testing: Detects internal flaws ≥0.8mm
· Eddy Current Testing: Verifies surface integrity of tubes
· Tensile & Hardness Tests: Every heat lot validated per ASTM E8
· Chemical Analysis: OES spectrometry ensures composition compliance

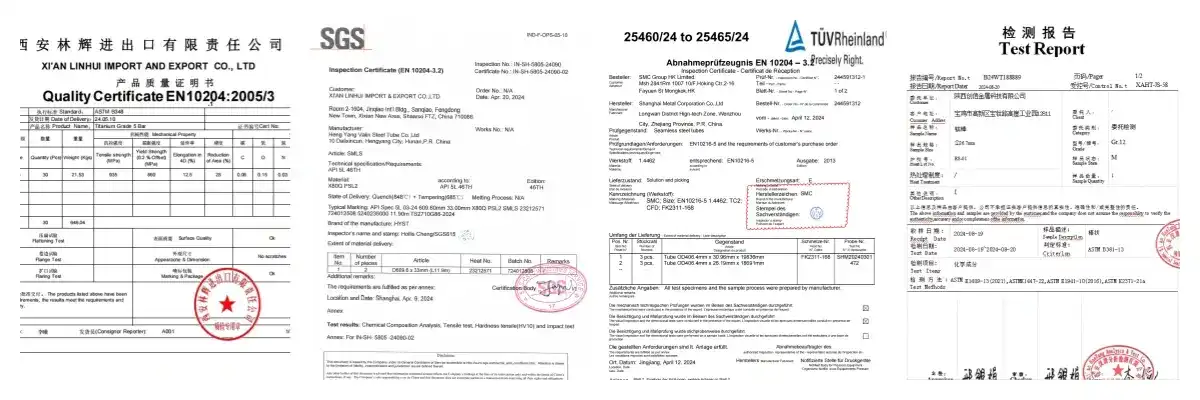

· Documentation: EN 10204 3.1/3.2 certificates with full traceability
Third-party inspection available through SGS, BV, TÜV upon request.
Applications
Aerospace Hydraulic Lines
You achieve 30% weight savings versus steel in aircraft fuel systems while withstanding -55°C to 400°C temperature swings.
Offshore Umbilical Tubes
Our seamless pipes eliminate weld weak points in subsea control systems. Expect 20+ years maintenance-free operation in saltwater.
High-Performance Bicycle Frames
Superior vibration dampening compared to carbon fiber creates comfortable ride quality without sacrificing stiffness.
Heat Exchanger Tubing
Higher allowable stress than Grade 2 permits increased flow rates in desalination plants and chemical processing equipment.
Export Markets
Primary Regions:
North America (USA, Canada), Europe (Germany, France, UK), Middle East (UAE, Saudi Arabia), Asia-Pacific (Japan, South Korea, Singapore)
Industry Concentrations:
Aerospace manufacturing hubs, offshore oil & gas fields, high-end sports equipment manufacturers, and marine engineering contractors for Titanium Alloy Grade 9
Why Choose Us?
Coordinate Process Supply
Factory estimating dispenses with agents. You spare 15-20% compared to exchanging companies.
200+ Tons Stock Inventory
Standard sizes dispatch inside 3-7 days. No holding up for generation cycles.
4-Hour Citation Response
Our building group surveys drawings and gives specialized arrangements inside one commerce day.
Full Fabric Traceability
Heat number following and MTC documentation guarantee compliance with your quality audits.
Flexible MOQ
Trial orders begin from 100 kg. We bolster model improvement and mass generation equally.
Packaging & Shipping
Standard Packaging:
Wooden cases with inward plastic wrapping for sheets/plates. Tubes ensured by conclusion caps and bundled per estimate. Person pieces clearly checked with warm numbers.
Container Loading:
20ft holders oblige 8-10 tons. 40ft holders handle 18-22 tons depending on dimensions.
Shipping Methods:
Sea cargo (conservative for bulk orders), discuss cargo (pressing conveyances inside 5-7 days), express messenger (tests beneath 50kg).
Documentation:
Commercial receipt, pressing list, fabric certificates, certificate of beginning, and third-party review reports as required.
FAQ
Q: What's the contrast between tempered and CWSR condition?
A: Toughened offers superior formability for advance handling. CWSR (Cold Worked Stretch Diminished) gives 15-20% higher quality for final-use applications.
Q: Can you give little amounts for testing?
A: Yes. We bolster test orders from 10kg with the same quality benchmarks as bulk production.
Q: How does Review 9 compare to Review 5 in welding?
A: Review 9 welds more effectively due to lower aluminum substance. You do not require preheating for thicknesses beneath 6mm, decreasing creation complexity.
Q: Do you offer custom cutting services?
A: Completely. We give cutting, twisting, and machining per your drawings. Share determinations for a point by point quote.
Q: What's your normal lead time for custom orders?
A: Standard generation completes in 15-25 days. Surge orders accessible with 10-15 day turnaround upon fabric accessibility affirmation.
Request a Quote
Get your Titanium Alloy Grade 9 quotation within 4 hours. Contact our engineering team at linhui@lhtitanium.com with specifications, quantity, and delivery requirements.
