Titanium Grade 9 (Ti-3Al-2.5V)
Available Forms: Seamless & Welded Tubes, Pipes, Rods
Size Range: 1/8" to 6" OD, Wall Thickness 0.028" to 0.5"
Standards: ASTM B338, AMS 4943, MIL-T-9047
Surface Finishes: Polished, Annealed, Cold Worked
Titanium Grade 9 (Ti-3Al-2.5V) – High-Strength Alloy for Demanding Industries
LINHUI TITANIUM specializes in manufacturing precision-engineered Titanium Grade 9 (Ti-3Al-2.5V) products. Available in seamless and welded tubes, pipes, and rods with sizes ranging from 1/8" to 6" OD and wall thickness from 0.028" to 0.5". Our production strictly follows ASTM B338, AMS 4943, and MIL-T-9047 standards.
With tensile strength reaching 620 MPa and yield strength of 530 MPa, this alpha-beta alloy offers 30% higher strength than commercially pure grades while maintaining excellent formability. Surface finishes include polished, annealed, and cold-worked options to meet your exact application needs. Backed by ISO 9001:2015 certification and full EN 10204 3.1/3.2 traceability, we deliver factory-direct quality with engineering support.
Key Features & Benefits
Superior Mechanical Performance
You gain exceptional strength-to-weight ratio with 89,900 psi tensile strength. The alloy's 20% elongation allows extensive cold working without cracking.
Outstanding Corrosion Resistance
Your equipment resists saltwater and mild acids effectively. Performance matches palladium-stabilized grades at lower cost.
Excellent Weldability
TIG welding maintains near-base-metal strength in heat-affected zones. No special filler metals required for joining.
Enhanced Formability
Cold forming capabilities exceed Grade 5. You can create complex shapes using standard press brake and hydroforming techniques.
Chemical Composition (ASTM B338 Requirements)
| Element | Composition (%) | Typical Value |
|---|---|---|
| Titanium (Ti) | Balance | Balance |
| Aluminum (Al) | 2.5-3.5 | 3.0 |
| Vanadium (V) | 2.0-3.0 | 2.5 |
| Iron (Fe) | ≤0.25 | 0.15 |
| Oxygen (O) | ≤0.15 | 0.12 |
| Carbon (C) | ≤0.08 | 0.05 |
| Nitrogen (N) | ≤0.03 | 0.02 |
| Hydrogen (H) | ≤0.015 | 0.010 |
Mechanical Properties (Annealed Condition)
| Property | ASTM B338 Requirement | Typical Value |
|---|---|---|
| Tensile Strength | ≥90 ksi (620 MPa) | 95 ksi (655 MPa) |
| Yield Strength (0.2% offset) | ≥70 ksi (483 MPa) | 75 ksi (517 MPa) |
| Elongation (%) | ≥15 | 18 |
| Reduction of Area (%) | ≥25 | 30 |
| Hardness (Rockwell B) | ≤80 | 75 |

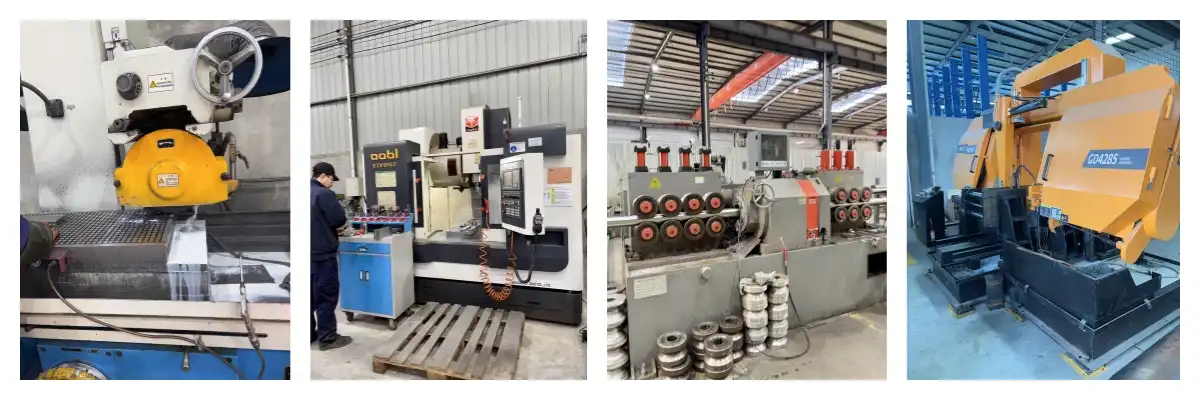

Manufacturing Process
Raw Material Selection
We source sponge Titanium Grade 9 (Ti-3Al-2.5V) from certified mills. Heat number traceability ensures batch consistency from ingot to finished product.
Hot Forming & Extrusion
Billets undergo rough forging at 900°C and finishing at 843°C. Seamless tubes are pilger-rolled to eliminate weld seams and internal defects.
Cold Rolling & Drawing
Controlled cold working achieves thickness tolerance within ±0.05 mm. This process enhances surface finish and dimensional accuracy for precision applications.
Heat Treatment
Solution annealing at 593–760°C for 3 hours optimizes ductility. Stress relief at 316–649°C removes residual stresses from forming operations.
Final Surface Treatment
Options include acid pickling for oxide removal, mechanical polishing to Ra 0.4 µm, and bead blasting for textured finishes.
Quality Inspection
100% Non-Destructive Testing
Every tube undergoes ultrasonic and eddy current inspection. You receive zero-defect products with complete test reports.
Mechanical Testing
Tensile, hardness, and elongation tests on each production lot. Results must meet or exceed ASTM B338 minimum requirements.
Chemical Analysis
Spectrometric analysis verifies alloy composition. Interstitial element control ensures oxygen ≤0.15% for consistent performance.
Dimensional Verification
CMM and optical measurement systems check OD, wall thickness, and straightness. Certificates include actual measured values.

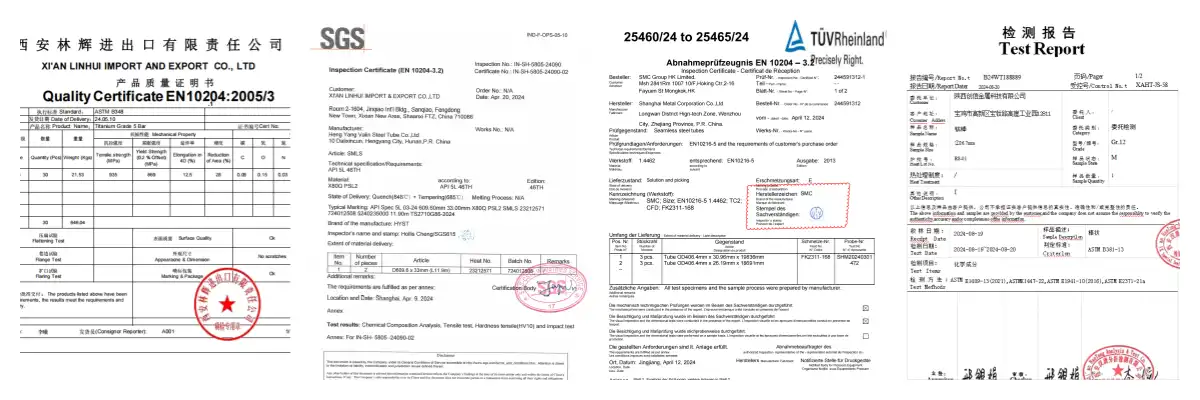

Traceability Documentation
You receive EN 10204 3.1 material test certificates. Heat numbers are laser-etched on each piece for full supply chain transparency.
Applications
Aviation Water powered Systems
Aircraft motor ducting and liquid lines advantage from weakness resistance. Weight reserve funds reach 40% compared to stainless steel.
Chemical Handling Equipment
Heat exchangers and weight vessels in oxidizing media. Benefit temperature up to 315°C with kept up erosion integrity.
Marine Engineering
Seawater-exposed components like propeller shafts and clasp. Predominant setting resistance in chloride environments.
Medical Gadget Manufacturing
Surgical instrument lodgings requiring autoclave sterilization. Biocompatible and non-magnetic properties meet FDA standards.
High-Performance Sports Equipment
Golf club shafts and bike outlines. Tall cycle weariness restrain guarantees strength beneath rehashed affect loads.
Why Choose Us?
Direct Process Supply
Factory-direct estimating dispenses with brokers. You spare 15–20% on acquirement costs with same-day quotations.
Engineering Back Team
In-house metallurgists help with fabric determination. Specialized meeting accessible in English, Chinese, and Spanish.
Flexible Arrange Quantities
Stock orders begin from 100 kg. Trial orders upheld for R&D ventures and model development.
Fast Conveyance Capability
200+ tons stock guarantees 3–7 days stock conveyance. Standard generation completed in 15–25 days with surge arrange options.
Comprehensive Certifications
ISO 9001:2015, PED 2014/68/EU, NORSOK M-650 certified. Third-party review by SGS, TÜV, and DNV accessible upon request.
Packaging & Shipping
Inner Protection
Each tube wrapped in polyethylene film. Froth embeds avoid surface scratches amid transit.
Outer Packaging
Wooden cartons with fumigation certificates for universal shipping. Reasonable for ocean cargo and discuss cargo.
Labeling & Documentation
Heat numbers, measurements, and taking care of informational clearly checked. Commercial solicitations and pressing records arranged for traditions clearance.
Logistics Partners
Cooperation with Maersk, COSCO, and DHL. Door-to-door benefit accessible with cargo protections coverage.
Export Markets
North America
USA, Canada, Mexico – aviation and defense contractors
Europe
Germany, UK, France – chemical handling and marine sectors
Middle East
UAE, Saudi Arabia – oil & gas seaward applications
Asia-Pacific
Japan, South Korea, Singapore – hardware and therapeutic industries
South America
Brazil, Chile – mining hardware and control era
FAQ
Q: What's the least arrange quantity?
A: Stock things begin from 100 kg. Custom details require 500 kg MOQ depending on estimate and complexity.
Q: Can you give fabric test certificates?
A: Yes, EN 10204 3.1 certificates included with each shipment. Third-party assessment organized at your request.
Q: How do I select between consistent and welded tubes?
A: Consistent tubes suit high-pressure applications up to 20,000 psi. Welded adaptations offer taken a toll investment funds for lower-pressure systems.
Q: What's your lead time for custom sizes?
A: Drawing survey completed in 24 hours. Generation takes 25–40 days depending on arrange volume and specifications.
Q: Do you offer specialized bolster for welding procedures?
A: Our metallurgists give WPS proposals. We recommend coordinating ER Ti-9 filler wire with argon protecting gas.
Q: Is the item appropriate for seawater environments?
A: Completely. The amalgam illustrates great setting resistance in chloride arrangements and performs dependably in marine applications.
Request a Quote
Ready to source high-quality Titanium Grade 9 (Ti-3Al-2.5V) for your project? Contact our sales team at linhui@lhtitanium.com with your specifications.
