GR5 titanium wires
gr5 titanium wire in stock, one-stop service integrating purchasing, processing, retailing and logistics.
Send Inquiry

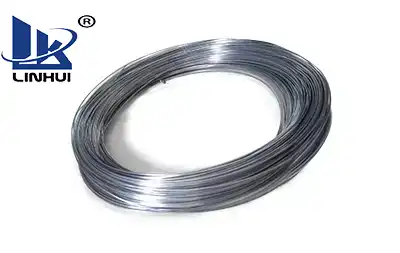

GR5 Titanium Wires
XI AN LINHUI IMPORT AND EXPORT Co., LTD. maintains substantial inventory of GR5 titanium wires with over 200 tons in stock for immediate delivery. Our one-stop service integrates purchasing, processing, retailing, and logistics solutions tailored to your project needs. With controlled cold rolling technology, we achieve diameter tolerance within ±0.02mm, ensuring consistent mechanical properties throughout.
Our factory operates under ISO 9001:2015 standards and provides full EN 10204 3.2 certification. Stock delivery completes in 3–7 days, while custom orders ship within 15–25 days.
Key Features & Benefits
High Strength-to-Weight Ratio
Ti-6Al-4V alloy offers superior tensile strength exceeding 900 MPa while maintaining low density of 4.43 g/cm³.
Excellent Corrosion Resistance
Forms protective oxide layer naturally, resisting seawater, chlorides, and most industrial chemicals.
Biocompatibility
FDA-compliant material suitable for medical device manufacturing and surgical applications.
Specifications
| Diameter | Tolerance | Surface Condition | Length |
|---|---|---|---|
| 0.1mm - 5.0mm | +/- 0.01mm | Polished or Acid Pickled | Customizable |
Chemical Composition
| Element | Percentage |
|---|---|
| Titanium (Ti) | Balance |
| Aluminum (Al) | 6.0 - 4.0% |
| Vannadium (V) | 4.0 - 6.0% |
| Iron (Fe) | 0.25% max |
| Oxygen (O) | 0.15% max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 895 - 1000 MPa |
| Yield Strength | 825 - 950 MPa |
| Elongation | 10 - 20% |
Manufacturing Process
Raw Material Selection
Virgin titanium sponge sourced from certified mills undergoes strict composition verification.
Vacuum Arc Melting
Multiple remelting cycles eliminate segregation and ensure uniform alloy distribution.
Hot Working & Cold Drawing
Precision die drawing achieves tight diameter tolerances. Intermediate annealing relieves internal stress.
Quality Inspection
Every production batch undergoes 100% dimensional inspection and mechanical testing. Ultrasonic testing detects internal defects down to 0.5mm. Chemical analysis verifies composition compliance via spectrometer. Surface quality inspection ensures no cracks, seams, or oxide contamination exist.
Applications Of GR5 titanium wires
Aerospace Engineering
Aircraft fasteners, spring components, and landing gear parts.
Medical Devices
Surgical instruments, orthodontic wires, and implantable components.
Marine Industry
Corrosion-resistant rigging, fishing gear, and subsea equipment.
Chemical Processing
Heat exchanger components and reactor vessel internals.
Export Markets
Customers in North America, the European Union, the Middle East, and Southeast Asia are served by our GR5 titanium wires. The United States, Germany, Japan, the United Arab Emirates, and South Korea are important travel destinations. We continue to collaborate with marine engineering companies, medical device manufacturers, and aircraft manufacturers in more than 40 nations.
Why Choose Us
Direct Factory Pricing
Eliminate intermediaries and reduce procurement costs by 15-25%.
Technical Support Team
In-house metallurgists provide material selection guidance and application consulting.
Flexible Order Quantities
Trial orders accepted starting from 100 kg with no maximum limit.
Complete Documentation
Full traceability with heat number tracking and material test certificates included.
Packaging & Shipping
After being coiled and wrapped in moisture-resistant paper, wires are fastened in foam-padded wooden containers. Product labels with the grade, size, heat number, and net weight are included with every package. DHL and FedEx are used for international shipment; sea freight is used for large orders. Commercial invoices, packing lists, and certificates of origin are among the export documents that are prepared.
FAQ
Q: What is the minimum order quantity?
A: Stock items start from 100 kg; custom sizes require 500 kg minimum.
Q: Can you provide material certificates?

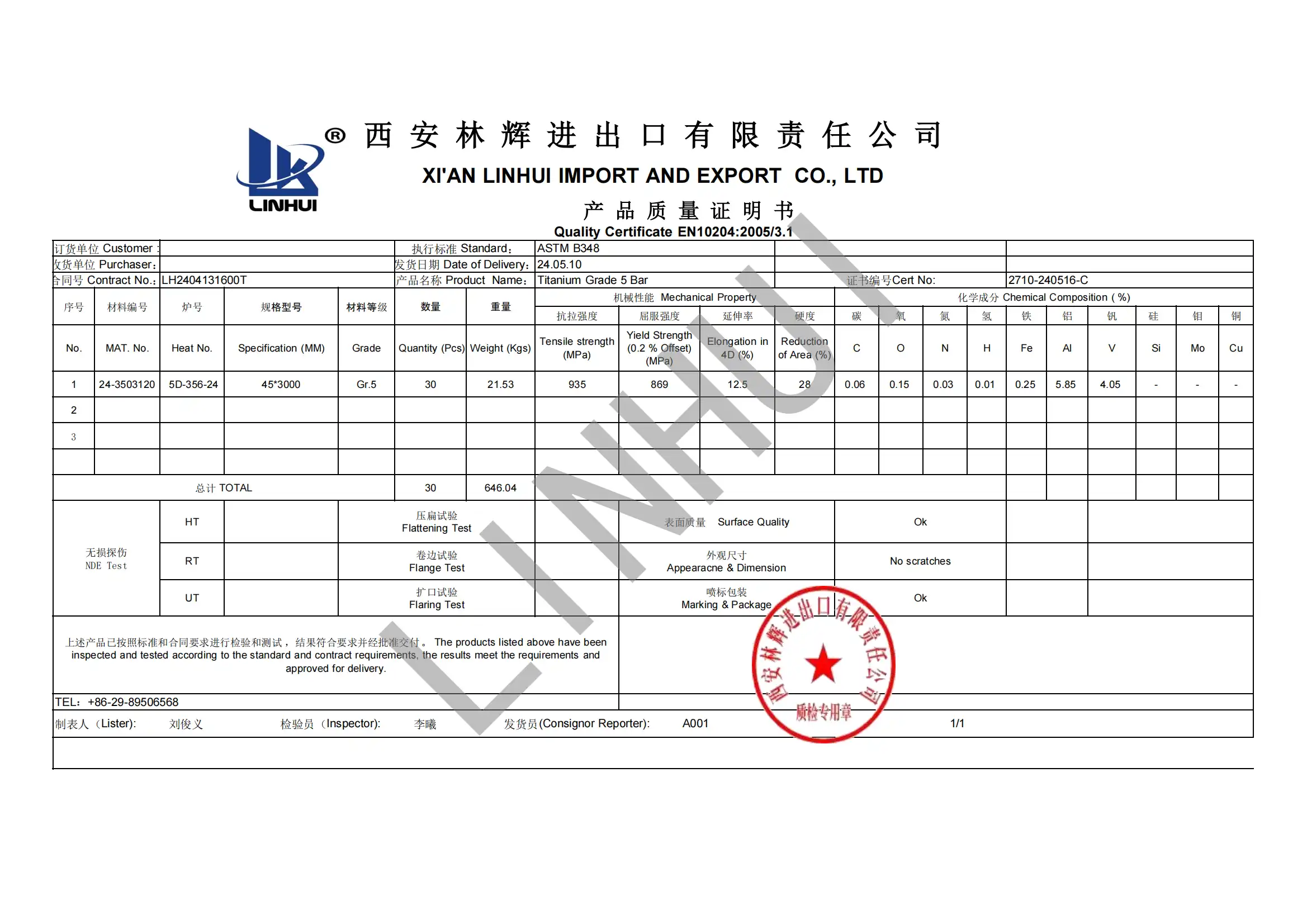

A: Yes, EN 10204 3.2 certificates with full chemical and mechanical test reports included.
Q: What surface conditions are available?
A: Bright annealed and acid-pickled finishes both available per your requirements.
Q: Do you accept third-party inspection?
A: Absolutely. SGS, BV, TÜV inspections welcomed before shipment.
Q: How do you ensure diameter consistency?
A: Automated laser measurement during production maintains ±0.02mm tolerance control throughout coil length.
Request a Quote
Ready to source premium GR5 titanium wires for your next project? Contact our technical sales team at linhui@lhtitanium.com with your specifications. Receive detailed quotations within 4 hours with technical data sheets included.
