Titanium Alloy Rod
Titanium alloy rod, large quantity and good price, complete varieties, Linhui Titanium specializes in the production and sale of Titanium alloy rod, stable product performance, corrosion resistance, professional experience! Welcome to purchase
Send Inquiry
Titanium Alloy Rod
LINHUI TITANIUM specializes in manufacturing premium Titanium Alloy Rod with large-scale production capacity and competitive pricing. Our comprehensive product range features Grade 5 (Ti-6Al-4V) and Grade 23 ELI rods with tensile strength from 895 MPa to 1100 MPa and density of 4.43 g/cm³.
Each item experiences 100% NDT review guaranteeing zero-defect conveyance. With over 20 a long time of metallurgical skill, we keep up thickness resilience inside ±0.05mm through controlled cold rolling. Our stock surpasses 200 tons empowering 3–7 day stock delivery.
Products comply with ASTM B348, AMS 4928, and ISO 5832-3 measures, highlighting total EN 10204 3.1/3.2 traceability. We've traded to 60+ nations serving aviation, therapeutic, and oil & gas divisions with proficient building support.
Key Features & Benefits
· Prevalent Strength-to-Weight Proportion: Review 5 poles convey 828 MPa abdicate quality at as it were 4.43 g/cm³ density
· Extraordinary Temperature Steadiness: Keeps up mechanical properties up to 400°C operational environments
· Erosion Insusceptibility: Inactive TiO₂ layer stands up to chloride SCC and sulfide attack
· Biocompatibility: Review 23 ELI meets FDA necessities for restorative implants
· Non-Magnetic Properties: Perfect for MRI-compatible and accuracy instrumented applications
Specifications
| Diameter | Length | Surface Finish |
|---|---|---|
| 6mm - 100mm | Up to 6000mm | Polished, Ground, Mill |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | 90 - 95 |
| Aluminium (Al) | 4 - 6 |
| Vacuum melt titanium (V) | 0.2 - 0.8 |
| Other elements | 0.05 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 800 - 1000 MPa |
| Yield Strength | 700 - 900 MPa |
| Elongation | 18 - 26% |
| Reduction in Area | 45 - 50% |

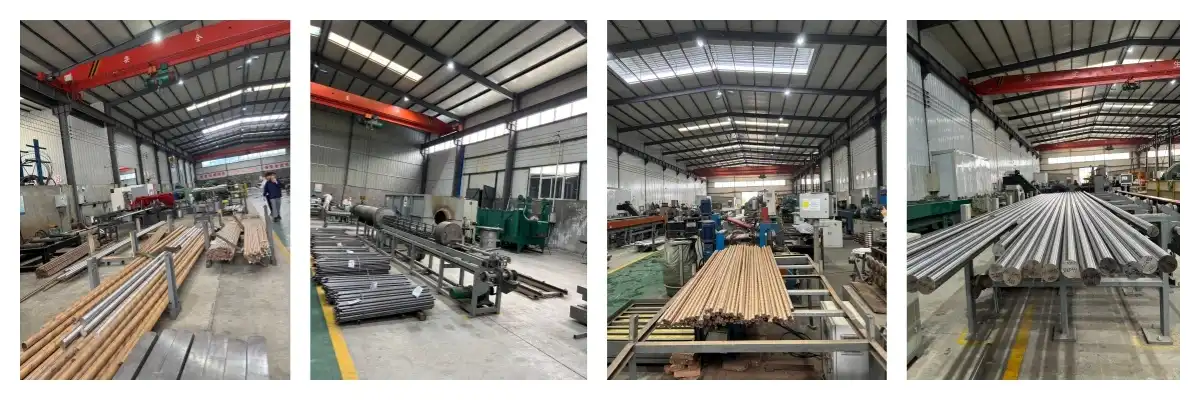

Manufacturing Process
Step 1: Crude Fabric Selection
We source certified titanium wipe adjusting to ASTM B348 requirements.
Step 2: Vacuum Bend Melting
Triple VAR prepare kills debasements and guarantees homogeneous microstructure.
Step 3: Hot Forging
Billets are produced at 950–1050°C to accomplish bi-modal alpha-beta stage distribution.
Step 4: Accuracy Cold Rolling
Controlled rolling keeps up breadth resistance inside h9/h11 standards.
Step 5: Arrangement Treatment & Aging
Heat treatment at 920°C taken after by maturing optimizes quality and ductility adjust.
Quality Inspection
· Ultrasonic Testing (UT): Detects internal discontinuities per ASTM E213
· Eddy Current Testing (ECT): Identifies surface cracks down to 0.5 mm
· Tensile & Hardness Testing: Each heat lot verified for mechanical properties
· Spectrometry Analysis: Chemical composition confirmed via OES equipment
· Metallographic Examination: Microstructure evaluated for alpha-case and grain size
Applications
Aerospace & Defense: Landing gear components, wing spars, and turbine blades requiring high-temperature strength retention.
Medical & Orthopedics: Bone nails, hip stems, and spinal rods leveraging osseointegration properties of Grade 23 ELI Titanium Alloy Rod.
Oil & Gas Downhole: Drilling tools and valve stems resisting H₂S and sour gas corrosion where stainless steel fails.
Marine Engineering: Propeller shafts and fasteners immune to seawater chloride attack.
Export Markets
We've delivered thousands of tons to:
· North America: USA, Canada, Mexico
· Europe: Germany, France, UK, Netherlands
· Asia-Pacific: Japan, South Korea, Singapore
· Middle East: UAE, Saudi Arabia, Qatar
· South America: Brazil, Ecuador, Peru
Why Choose Us?
· Coordinate Process Estimating: Factory-direct supply dispenses with brokers markup
· 24-Hour Designing Back: In-house metallurgists help with fabric selection
· Full Traceability: Warm number following with EN 10204 3.2 certificates
· Adaptable MOQ: Trial orders from 100 kg accepted
· Multilingual Group: English, Spanish, Arabic bolster accessible
Packaging & Shipping
Bars are independently wrapped in moisture-proof film and stuffed in wooden cases with froth cushioning. Each bundle incorporates MTC documentation and warm number names. We arrange shipping through DHL, FedEx, or ocean cargo with protections coverage.
FAQ
Q: What's the distinction between Review 5 and Review 23?
A: Review 23 has lower oxygen substance (≤0.13% vs ≤0.20%), giving predominant ductility for therapeutic implants.
Q: Can you give custom lengths?
A: Yes, we cut to your determinations with +5/-0 mm tolerance.

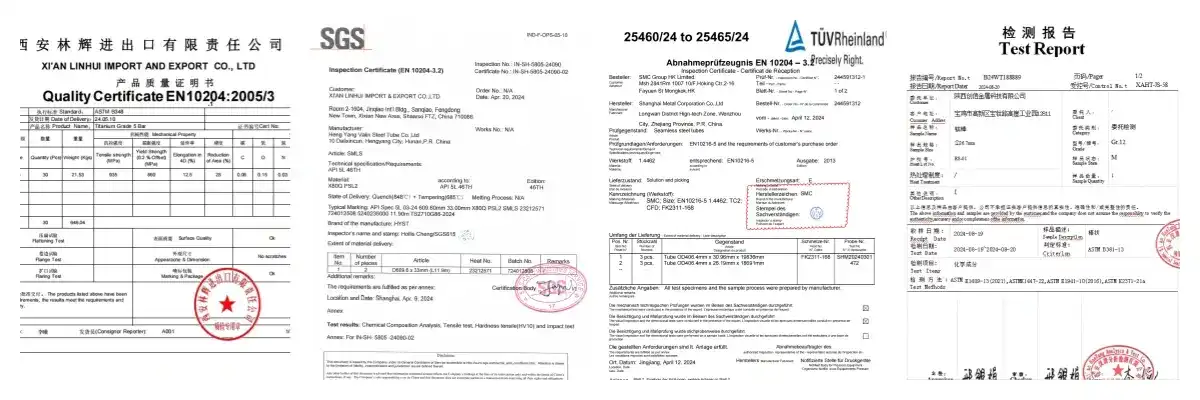

Q: What certifications go with shipments?
A: Each arrange incorporates EN 10204 3.1 Process Test Certificates. Third-party assessment (SGS/TÜV) accessible upon request.
Q: What's your lead time for 500 kg?
A: Stock things transport in 5 days. Custom sizes require 20–25 days.
Q: Do you offer solution-treated and matured (STA) condition?
A: Completely. Indicate warm treatment necessities when requesting your item.
Request a Quote
Ready to source high-performance titanium alloy rods for your project? Send your specifications to linhui@lhtitanium.com today—we respond within 4 hours with detailed quotations and technical support.
