Titanium 6Al-4V ELI ASTM F136
Medical titanium rod are available from stock, a professional manufacturer, complete models, sufficient inventory, complete specifications, trustworthy, one handshake, long-term supply, lifelong maintenance. Welcome friends to come for consultation, professional production of Medical titanium rod, sufficient stock.
Send Inquiry
Titanium 6Al-4V ELI ASTM F136 | Medical & Aerospace Grade Supplier
ASTM F136 Titanium 6Al-4V ELI Supplier | Medical Implant & Aerospace Grade | Full Specs
Global supplier of ASTM F136 Titanium 6Al-4V ELI rods, bars, plates. Certified biocompatible, full chemical & mechanical specs. Medical implants, aerospace applications. Get a quote!
✔ Implant-Grade Purity – Oxygen ≤0.13%, Iron ≤0.25%
✔ Certified Biocompatibility – ISO 5832-2/3, ASTM F136, FDA-approved
✔ High Strength & Corrosion Resistance – Tensile ≥860 MPa
✔ Global Supply – Stock in USA, Germany, Japan, and more
Why Choose Our Titanium 6Al-4V ELI ASTM F136?
✅ Direct Factory Supply – Competitive pricing, no middlemen
✅ Full Material Traceability – Mill Test Reports (MTRs) with each order
✅ Fast Global Shipping – Stock in USA, Germany, Japan, and more

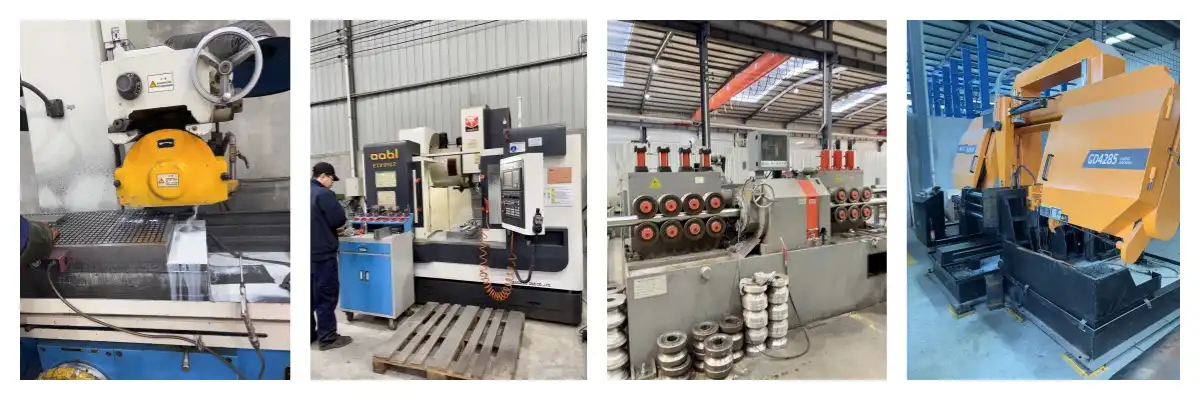

✅ Custom Machining – Cutting, drilling, and CNC machining available
✅ Certified Quality – ISO 9001, ASTM, RoHS compliant
Product Specifications
| Parameter | Value |
|---|---|
| Standard | ASTM F136, ISO 5832-2/3 |
| Oxygen Content | ≤0.13% (ELI Grade) |
| Tensile Strength | 860-965 MPa |
| Forms Available | Round Bars, Flat Bars, Plates, Sheets, Wires |
| Diameter/Thickness | 1mm – 300mm (custom sizes) |
| Surface Finish | Polished, Machined, Annealed |
Chemical Composition (ASTM F136 Standard)
| Element | Composition (%) | ASTM F136 Requirement |
|---|---|---|
| Aluminum (Al) | 5.5 - 6.5 | 5.5 - 6.5 |
| Vanadium (V) | 3.5 - 4.5 | 3.5 - 4.5 |
| Oxygen (O) | ≤ 0.13 | ≤ 0.13 (ELI Grade) |
| Iron (Fe) | ≤ 0.25 | ≤ 0.25 |
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.05 | ≤ 0.05 |
| Hydrogen (H) | ≤ 0.012 | ≤ 0.012 |
| Titanium (Ti) | Balance | Balance |
Mechanical Properties
| Property | Value | Test Standard |
|---|---|---|
| Tensile Strength | 860 - 965 MPa | ASTM E8 |
| Yield Strength (0.2% Offset) | ≥ 795 MPa | ASTM E8 |
| Elongation | ≥ 10% | ASTM E8 |
| Reduction of Area | ≥ 25% | ASTM E8 |
| Hardness (HV) | 310 - 350 | ASTM E384 |
| Modulus of Elasticity | 110 - 114 GPa | ASTM E111 |
| Fatigue Strength (10⁷ cycles) | 500 - 600 MPa | ASTM E466 |
Available Product Forms
-
Round Bars: Ø3mm - Ø300mm
-
Flat Bars: 5-200mm thick, 20-600mm wide
-
Plates/Sheets: 0.5-50mm thick
-
Wire: Ø0.1-6mm
-
Custom Machined Parts
Quality Certifications
-
ISO 9001:2015 Certified
-
ASTM F136 Compliant
-
ISO 5832-2/3 (Implants)
-
FDA 510(k) Submissions Support
-

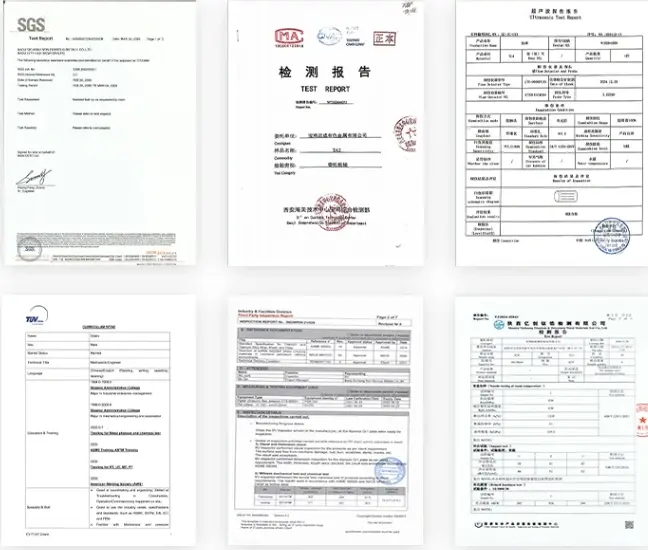

Full Traceability with Titanium 6Al-4V ELI ASTM F136 Mill Test Reports
Key Applications
Medical Implants (Primary Use)
-
Orthopedic Implants – Hip joints, spinal rods, bone screws
-
Dental Components – Implant abutments, root posts
-
Surgical Instruments – Forceps, retractors, drill guides
Aerospace & Defense
-
Aircraft engine components
-
Satellite & missile structural parts
High-Performance Engineering
-
Marine hardware (corrosion-resistant)
-
Chemical processing equipment

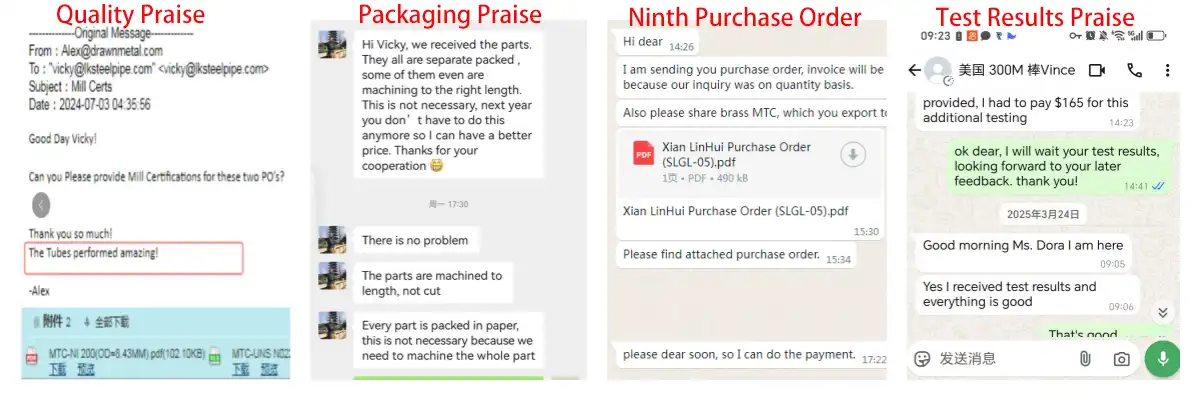

Customer Reviews
Frequently Asked Questions (FAQ)
Q: What’s the difference between ASTM F136 and F1472?
A: F136 is the medical-grade version with stricter oxygen/iron limits for implants, while F1472 is standard Ti-6Al-4V for industrial use.
Q: Do you provide FDA/CE documentation?
A: Yes, we supply full material certifications (MTRs) and biocompatibility test reports upon request.
Q: What’s the lead time for orders?
A: 2-4 weeks for standard sizes, 4-6 weeks for custom machining.
Q: Can I get samples before a bulk order?
A: Yes, we offer Titanium 6Al-4V ELI ASTM F136 small samples (1-5kg) for material testing.
Request a Quote – Worldwide Delivery
Need Titanium 6Al-4V ELI ASTM F136?
✅ Contact us for competitive pricing & fast delivery! 🚀
📞 Call: +86-29-89506568
📧 Email: linhui@lhtitanium.com
🌐 Website: www.lhtitanium.com
Order today for fast delivery to the USA, Germany, Japan, and more!
