Commercially Pure Titanium Grade 12 rod
Categories: Titanium Bar & Wire, Titanium Flanges, Titanium Pipe & Tube, Titanium pipe fittings, Titanium Plate & Sheet
Tags: CP-Ti Gr.12, Pure Titanium Gr.12, Ti-0.8Ni-0.3Mo, Titanium Gade 12, UNS R53401

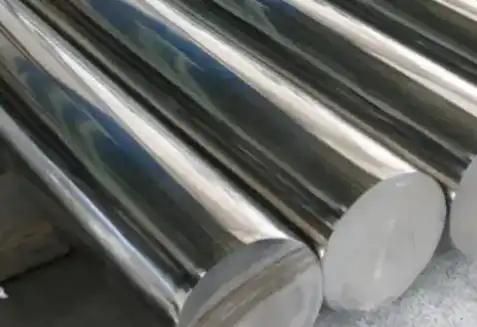

Commercially Pure Titanium Grade 12 Rod
LINHUI TITANIUM delivers factory-direct Commercially Pure Titanium Grade 12 rod (UNS R53401 / Ti-0.8Ni-0.3Mo) engineered for superior corrosion resistance in reducing acid environments. Our Grade 12 rods exceed ASTM B348 standards with controlled interstitial content (O ≤0.25%, Fe ≤0.30%) and precise dimensional tolerance within ±0.05mm. With 200+ tons stock inventory and ISO 9001:2015 certification, we supply pharmaceutical reactors, heat exchangers, and chemical processing equipment to 60+ countries. Our categories span Titanium Bar & Wire, Titanium Flanges, Titanium Pipe & Tube, Titanium Pipe Fittings, and Titanium Plate & Sheet—all backed by EN 10204 3.1 full traceability and third-party SGS inspection.
Key Features & Benefits
Enhanced Corrosion Performance
Grade 12 produces passive film stability in hot chloride solutions and diluted sulfuric acid by combining 0.8% nickel and 0.3% molybdenum. In reducing situations where ordinary CP titanium fails, this alloy performs better than Grade 2.
Formability & Weldability
You gain excellent cold-forming characteristics for complex tube bending and flanging operations. The material maintains base metal corrosion resistance after welding without filler metal requirements.
Lightweight Structural Advantage
At 4.51 g/cm³ density, our rods deliver 60% weight savings versus stainless steel while maintaining 345 MPa minimum yield strength for structural integrity in aggressive media.
Titanium Grade 12 (UNS R53401) Density
| Physical Properties | Metric |
| Density | 4.52 g/cc |
CP-Ti Grade 12 Mechanical Properties
| Mechanical Properties | Metric |
| Hardness, Brinell | 180 |
| Tensile Strength, Ultimate | 620 MPa |
| Tensile Strength, Yield | 450 MPa |
| Elongation at Break | 0.22 |
Ti-Grade 12 Chemical Composition
| Elements | Metric |
| Molybdenum, Mo | 0.003 |
| Nickel, Ni | 0.008 |
| Titanium, Ti | 0.989 |
Manufacturing Process
VAR, or vacuum arc remelting
To prevent macro-segregation and guarantee uniform Ni-Mo distribution, we employ triple-melt VAR technology. During ingot solidification, this procedure lowers the possibility of hydrogen pickup.
Rolling and Hot Forging
To improve grain structure, billets are subjected to multi-pass radial forging at 850–950°C. Rod cross-sections with consistent mechanical characteristics are produced using controlled rolling schedules.
Treatment of Solutions
To relieve stress, rods are annealed at 705°C (1300°F). By avoiding brittle beta-phase development, this treatment maximizes alpha-phase microstructure.
Accurate Machining
The diameter tolerance achieved by CNC centerless grinding is ±0.05mm. For smooth installation in tube bundles, the final straightness tolerance is 1 mm per meter.
Quality Inspection
Completely NDT Testing
In accordance with ASTM E213 Class A requirements, every commercially pure titanium Grade 12 rod is subjected to ultrasonic testing. Surface flaws deeper than 0.2 mm are found via eddy current inspection.
Verification of Tensile and Hardness
Yield Strength ≥345 MPa and Elongation ≥20% are confirmed by batch-specific tests. For constant machinability, Rockwell B hardness is kept between 70 and 85 HRB.
Traceability of Chemicals
Ni-Mo content and interstitial levels are confirmed by Inert Gas Fusion (IGF) analysis and Optical Emission Spectrometry (OES). EN 10204 3.2 Mill Test Certificates with heat number traceability are given to you.
Applications Of Commercially Pure Titanium Grade 12 rod
Chemical Processing: Distillation columns and reactor vessels in chlor-alkali plants
Pharmaceutical equipment includes fermentation tanks and sterile piping systems.
Heat Exchangers: Condenser tubes in desalination and geothermal systems
Marine engineering: ballast pipework, seawater-cooled systems
Oil and Gas: According to NACE MR0175, downhole components in sour service
Specifications
Sheet & Plate: ASTM B265 Gr12
Heat Exchanger Tube: ASTM B338 Gr12
Bars: ASTM B348 Gr12
Castings: ASTM B367 Gr12
Forgings: ASTM B381 Gr12
Nuts: ASTM F467 Gr12
Bolts: ASTM F468 Gr12
|
|
Packing & Shipping |
|
1. Accept the request/customized packing |
|
|
2. Normally, goods will packed in poly bags, drawstring bags, carrying bags, and cartons |
|
|
3. For the sample, we will use TNT, Fedex, UPS, DHL, etc to ship it, |
|
|
4. For bulk, it depends on the qty, by air, by train or by sea are all available. |
Export Markets
Commercially Pure Titanium Grade 12 rod has been supplied by LINHUI Titanium to:
USA, Canada, and Mexico in North America; Germany, France, the UK, and the Netherlands in Europe
Middle East: Saudi Arabia, Qatar, the United Arab Emirates
Asia-Pacific: Singapore, India, South Korea, Japan
Latin America: Colombia, Chile, and Brazil
We continue to have long-term supply agreements with CEFC, PTT, PETRONAS, and PEMEX.
Why Choose Us
Direct Mill Supply
Factory pricing eliminates middlemen markup. You receive consistent quality directly from our Xi'an production facility with ISO 9001:2015 certification.
Rapid Delivery
Stock orders ship within 3–7 days. Custom specifications complete production in 15–25 days with rush service available.
Engineering Support
Our metallurgists provide material selection guidance for your specific corrosion environment. We assist with ASME Section VIII pressure vessel calculations.
Flexible MOQ
Trial orders start from 100 kg. We support prototype projects and large-scale industrial procurement equally.
Packaging & Shipping
Packaging for Protection
Rods are placed in plywood cases, bundled with steel straps, and wrapped in waterproof paper. Desiccant packs are included in every bundle to stop moisture absorption while in transit.
Documentation Export
The Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, and EN 10204 3.1/3.2 MTCs are delivered to you. Certificates of REACH/RoHS compliance are available upon request.
Network of Logistics
Through relationships with Maersk, MSC, and DHL for air freight needs, we ship via major ports (Shanghai, Qingdao, Tianjin) with door-to-door service.
FAQ
Q: What's the difference between Grade 12 and Grade 2?
A: Grade 12 contains Ni-Mo additions providing 20–30% better corrosion resistance in hot chloride brines and dilute H₂SO₄. Use it when Grade 2 experiences pitting or crevice corrosion.
Q: Can you provide FDA-compliant material?
A:Yes. Our Grade 12 meets FDA 21 CFR 177.2460 for food contact applications. We supply pharmaceutical-grade material with additional purity documentation.
Q: What's your minimum order quantity?
A:Stock diameters (10–200mm) start from 100 kg. Custom sizes require 500 kg minimum due to forging setup costs.
Q: Do you offer cut-to-length service?
A:Absolutely. We provide precision sawing with +5/-0mm tolerance and deburred ends ready for welding or machining.
Q: How do I verify material authenticity?
A:Each rod is laser-engraved with heat number. You can request Positive Material Identification (PMI) testing via handheld XRF before shipment.
Request a Quote
Ready to source high-performance Commercially Pure Titanium Grade 12 rod for your project? Contact our engineering team at linhui@lhtitanium.com with your specifications. Receive detailed quotations within 4 hours and technical drawings review within 24 hours. Let's optimize your material selection today.
