Gr12 titanium tube
Our company has a large stock of Gr12 titanium alloy pipes all year round to ensure fast delivery
ISO9001 certified, providing a material list and spectrum detection
Gr12 titanium alloy pipes are customized, and special specifications can be customized quickly, welcome to call us for negotiation!
GR12 Titanium Tube (Ti-0.3Mo-0.8Ni) – High-Performance Corrosion-Resistant Tubing
Product Overview
GR12 Titanium Tubes (UNS R53400, ASTM B338 Grade 12) are premium corrosion-resistant titanium alloy tubes designed for extreme environments in chemical processing, marine, and oil & gas industries. With superior crevice corrosion resistance and excellent weldability, GR12 outperforms pure titanium (Gr2) in aggressive media like hot chlorides, acids, and seawater.
✅ Key Advantages for Buyers:
✔ Best-in-class corrosion resistance (better than Gr2 & Gr7)
✔ Higher strength than pure titanium (Gr2)
✔ Easier welding & fabrication vs. Gr7/Gr11
✔ Cost-effective alternative to nickel alloys
Technical Specifications (Buyers’ Top Priority)
1. GR12 Titanium Chemical Composition (ASTM B338)
| Element | Content (%) |
|---|---|
| Titanium (Ti) | Balance |
| Molybdenum (Mo) | 0.2–0.4 |
| Nickel (Ni) | 0.6–0.9 |
| Iron (Fe) | ≤ 0.30 |
| Oxygen (O) | ≤ 0.25 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.03 |
2. Mechanical Properties
| Property | Value | vs. Gr2 |
|---|---|---|
| Tensile Strength | ≥ 483 MPa | +40% |
| Yield Strength | ≥ 345 MPa | +25% |
| Elongation | ≥ 18% | Similar |
| Hardness (HV) | ~ 200 | Slightly higher |
| Max Operating Temp | 300°C | Comparable |
3. Corrosion Resistance Highlights
-
Superior to Gr2 in:
-
Hot chloride solutions (e.g., brine, seawater)
-
Reducing acids (HCl, H₂SO₄)
-
Crevice corrosion environments
-
-
Comparable to Gr7 (Ti-0.15Pd) at lower cost
Why Choose Our GR12 Titanium Tubes?
1. Quality Assurance
-
Certified to ASTM B338 & ASME SB338
-

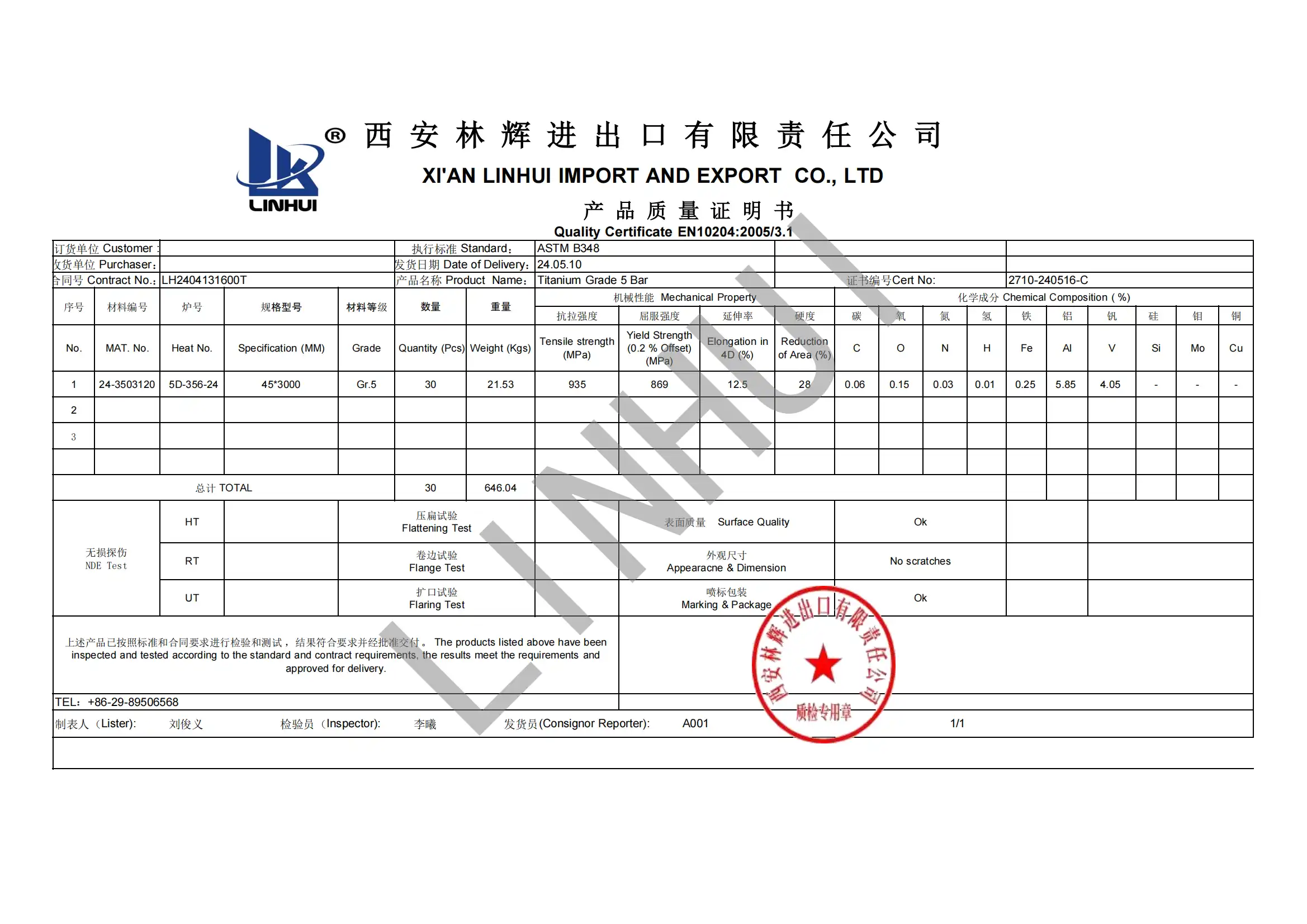

Full MTR (Mill Test Reports) with traceability
-
Ultrasonic testing (UT) & Eddy current testing available
2. Customization Options
-
Sizes: OD 3mm–300mm | Wall Thickness 0.5mm–20mm
-
Forms: Seamless & Welded | Annealed or Cold Worked
-
Surface Finish: Pickled, Polished, Beveled Ends
3. Competitive Procurement Benefits
-
Low MOQ (10kg for samples)
-
15-day fast delivery for standard sizes
-
Technical support for welding/fabrication
Industry Applications (Proven Performance)
| Industry | Use Cases | Why GR12? |
|---|---|---|
| Chemical Processing | Heat exchangers, reactor piping | Resists HCl, wet chlorine |
| Oil & Gas | Downhole tubing, risers | Handles H₂S/CO₂ environments |
| Marine | Seawater piping, desalination | No crevice corrosion |
| Pharmaceutical | CIP/SIP systems | Non-contaminating |
GR12 vs. Alternatives (Buyer’s Decision Guide)
| Alloy | Corrosion Resistance | Strength | Cost | Best For |
|---|---|---|---|---|
| GR12 | ★★★★★ (HCl, seawater) | ★★★★ | $$$ | Cost-effective harsh media |
| Gr2 | ★★★ (mild acids) | ★★ | $$ | General-purpose |
| Gr7 | ★★★★★ (HCl, oxidizers) | ★★★ | Extreme oxidizers | |
| Hastelloy | ★★★★★ | ★★★★ | $ | Hot sulfuric acid |
💡 Procurement Tip: GR12 cuts costs by 30–50% vs. Gr7/Hastelloy where oxidizers aren’t dominant.
FAQs
Q: Is GR12 titanium tube weldable?
A: Yes! GR12 welds more easily than Gr7 using standard TIG/GTAW. No post-weld annealing required.
Q: Can GR12 replace Gr7 in HCl service?
A: For <10% HCl at <60°C, GR12 is a cost-effective alternative. For stronger oxidizers, Gr7 is safer.
Q: What’s the price range for GR12 tubes?
A: Contact us for real-time quotes.
Call us now!
🔹 Request Free Samples (Verify quality before bulk orders)
🔹 Download GR12 Corrosion Data Sheet (PDF, 10+ test reports)
🔹 Get Instant Pricing:Email:linhui@lhtitanium.com
Limited GR12 Titanium Tubes Stock Alert: GR12 seamless tubes ready for shipment in 7 days!
