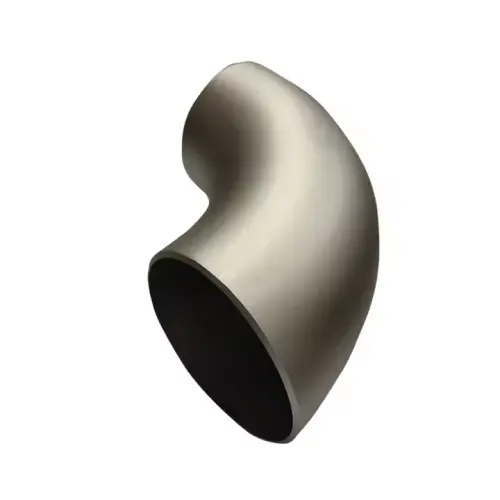

Titanium 90 Degree Elbow Fittings
Elbow type: 45-degree elbow, 90-degree elbow
Material: Titanium Grade 2
Standard: ASTM B363, ASME SB363
Diameter: 1/2″ – 48″ (DN15 – DN1200)

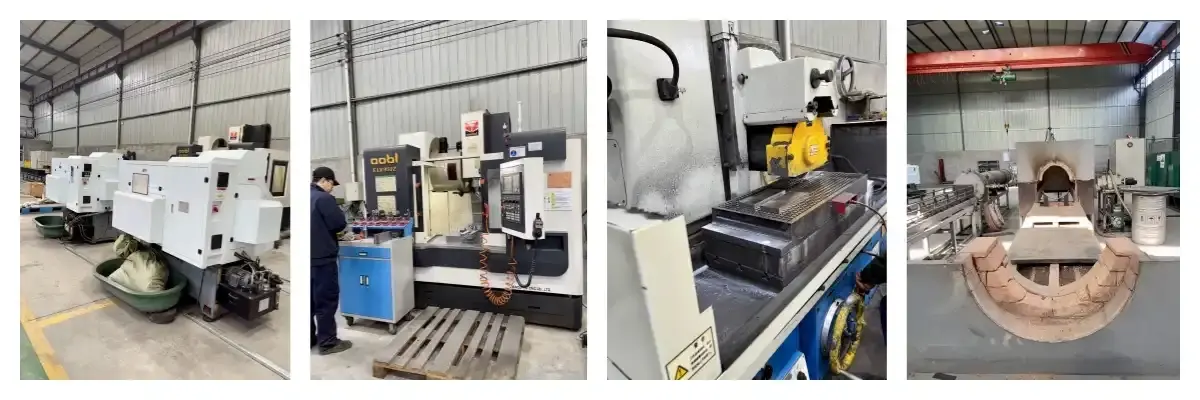

Two Factories & 30 titanium metal production lines
21 years of experience in titanium metal manufacturing
Systerm quality with ISO / SGS / TUV quality control.
Delivery term: DHL, FEDEX, Air freight,Sea freight
Annual production: 800 tons
Titanium 90 Degree Elbow Fittings
XI AN LINHUI specializes in manufacturing Titanium 90 Degree Elbow Fittings compliant with ASTM B363 and ASME SB363 standards. Our fittings are crafted from Titanium Grade 2, available in diameters ranging from 1/2″ to 48″ (DN15–DN1200).
With two production lines working 30 devoted titanium generation lines, we use 21 a long time of fabricating skill to convey 800 tons every year. Our efficient quality control is certified by ISO, SGS, and TÜV. We offer adaptable conveyance alternatives counting DHL, FEDEX, discuss cargo, and ocean cargo to meet your extend timelines. Whether you require 45-degree or 90-degree arrangements, our fittings give solid arrangements for requesting mechanical applications.
Key Features & Benefits
Superior Erosion Resistance
The self-healing TiO₂ oxide layer secures against chloride push erosion breaking in seawater and chemical environments.
Lightweight Strength
At 55% the thickness of steel, our fittings decrease establishment costs whereas keeping up malleable quality between 345–485 MPa.
Zero Support Design
Eliminates erosion stipend calculations for fit-and-forget establishments in subsea or chemical preparing systems.
Extended Benefit Life
Outperforms stainless steel and copper-nickel amalgams in high-velocity liquid frameworks and temperatures up to 315°C.
Specifications
| Parameter | Details |
|---|---|
| Elbow Type | 45-degree elbow, 90-degree elbow |
| Material | Titanium Grade 2 |
| Standard | ASTM B363, ASME SB363 |
| Diameter | 1/2″ – 48″ (DN15 – DN1200) |
| Production Lines | 30 titanium metal production lines |
| Annual Production | 800 tons |
| Quality System | ISO / SGS / TUV quality control |
| Delivery Term | DHL, FEDEX, Air freight, Sea freight |
Why Choose Us?
Coordinate Process Supply
Factory-direct estimating disposes of go betweens whereas guaranteeing full quality control from crude fabric to wrapped up product.
Full Traceability
Every fitting incorporates warm number following with EN 10204 3.1/3.2 fabric test certificates for total documentation.
Rapid Response
Quotations inside 4 hours, drawing surveys in 24 hours, and stock conveyance in 3–7 days keep your ventures on schedule.
Engineering Support
In-house metallurgists give specialized discussion for fabric choice and application-specific requirements.
Flexible Orders
We bolster trial orders beginning from 100 kg with no least amount limitations on stock items.

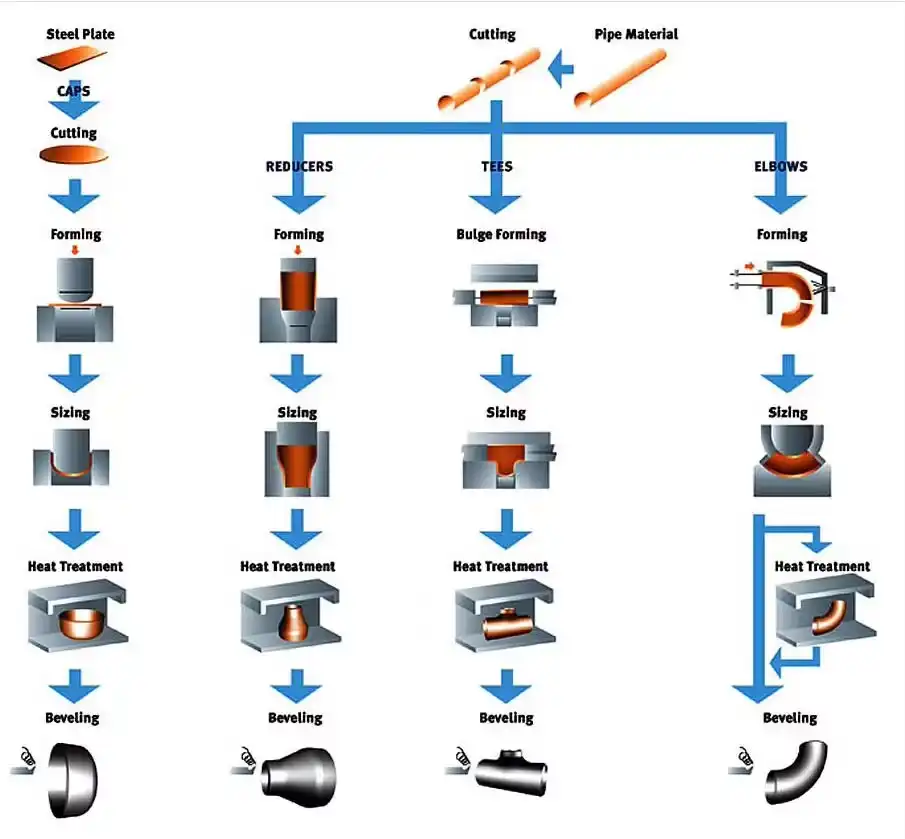

Manufacturing Process
Billet Preparation
Raw titanium ingots experience hot manufacturing to accomplish uniform grain structure and dispense with inside voids.
Forming & Bending
Seamless elbows are expelled from strong billets for high-pressure applications. Welded elbows are shaped from titanium plate utilizing accuracy mandrel bowing without filler metal.
Heat Treatment
Stress-relieving tempering at controlled temperatures reestablishes ductility and evacuates leftover stresses from shaping operations.
Surface Finishing
Options incorporate pickling for oxide expulsion, cleaning for clean applications, or sandblasting for progressed attachment in coating forms.
Applications
Offshore Oil & Gas
Fire water mains, seawater cooling systems, and subsea riser systems benefit from resistance to crevice corrosion in saltwater.
Chemical Processing
Pulp bleaching towers, chlor-alkali plants, and wet chlorine handling systems require immunity to hypochlorite attack.
Power Generation
Nuclear and thermal plant condensers use our fittings for seawater cooling circuits where high-velocity steam mixtures demand zero corrosion allowance.
Desalination Plants
Reverse osmosis and evaporator systems utilize thin-wall Titanium 90 Degree Elbow Fittings for enhanced heat transfer efficiency.
Packaging & Shipping
Defensive Packaging
Each products is exclusively wrapped in plastic film, at that point stuffed in plywood cases with shock-absorbing materials.
International Logistics
We facilitate DHL/FEDEX for pressing tests, discuss cargo for medium volumes, and ocean cargo for bulk orders with full send out documentation.
Compliance Documentation
Commercial receipt, pressing list, fabric certificates, and country-specific traditions printed material given for consistent clearance.
Export Markets
We've effectively conveyed to over 60 nations across:
· North America: USA, Canada, Mexico
· Middle East: UAE, Saudi Arabia, Qatar
· Europe: Germany, France, UK
· Asia-Pacific: Japan, South Korea, Singapore
· South America: Brazil, Ecuador, Venezuela
Our organizations with EPC temporary workers like PETRONAS and LUKOIL illustrate demonstrated unwavering quality in basic framework ventures.
Quality Inspection
Positive Material Identification (PMI)
Handheld XRF spectrometry verifies chemical composition compliance with Grade 2 specifications.
Dimensional Verification
Center-to-face distance, outside diameter, and wall thickness are measured to ensure ASME B16.9 tolerances.
Non-Destructive Testing (NDT)
100% radiographic testing for welded elbows detects internal porosity. Ultrasonic testing controls wall thickness uniformity in seamless fittings.
Dye Penetrant Inspection (DPI)
Surface examination identifies cracks, laps, or seams that could compromise structural integrity.
Mechanical Testing
Tensile and flattening tests on material coupons confirm yield strength and ductility before final approval.
FAQ
Q: What's the contrast between consistent and welded elbows?
A: Consistent elbows are expelled from billets for high-pressure applications. Welded elbows are shaped from plate and cost-effective for medium-pressure frameworks with 100% X-ray inspection.
Q: Can I interface titanium elbows to stainless steel pipes?
A: Coordinate contact in electrolytes causes galvanic erosion. We suggest utilizing rib segregation units to avoid the stainless steel from corroding.
Q: How do I select between long sweep and brief radius?
A: Long sweep (1.5D) minimizes weight drop for standard channeling. Brief span (1.0D) suits space-constrained establishments but increments grinding loss.
Q: Is post-weld warm treatment required?
A: Yes, ASTM B363 suggests stress-relieving after shaping to reestablish ductility and avoid postponed splitting in service.
Q: Why is Review 2 most common?
A: It equalizations erosion resistance, formability, weldability, and taken a toll superior than higher-strength amalgams for most mechanical applications.
Request a Quote
Ready to enhance your piping system with premium Titanium 90 Degree Elbow Fittings? Contact our technical team at linhui@lhtitanium.com for customized solutions and competitive pricing tailored to your project specifications.
