Difference Between Titanium Gr1 and Gr2: Key Properties and Applications

Home > Knowledge > Difference Between Titanium Gr1 and Gr2: Key Properties and Applications

Titanium is widely used in chemical, medical, and marine engineering due to its excellent corrosion resistance, high strength, and lightweight properties. Among commercially pure titanium (CP titanium), Grade 1 (Gr1) and Grade 2 (Gr2) are the most common grades, with key differences in mechanical properties and applications.

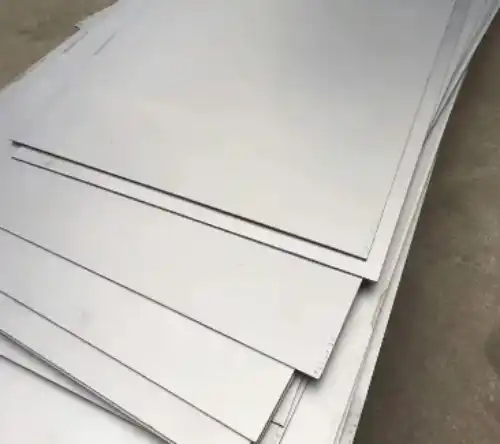

Corrosion resistant titanium alloy plate

1. Composition and Purity

Gr1: Highest purity (≥99.5% titanium), with extremely low impurity content.
Gr2: Slightly lower purity (≥98.9% titanium), containing trace amounts of iron and oxygen to enhance strength.

2. Mechanical Properties Comparison

Property	Gr1	Gr2
Tensile Strength	240-370 MPa	345-480 MPa
Yield Strength	170-300 MPa	275-380 MPa
Elongation	24-30%	20-25%
Hardness (HV)	120-150	150-200

Key Differences:

Gr1 is softer and more ductile, making it ideal for deep drawing and complex forming.
Gr2 offers higher strength, suitable for pressure-bearing or structural components.

3. Corrosion Resistance & Weldability

Both grades provide excellent corrosion resistance (resistant to seawater, acids, and alkalis), though Gr1 has a slight edge in extreme environments due to higher purity.
Weldability: Both Gr1 and Gr2 are easy to weld, but Gr1 offers better weld ductility.

4. Typical Applications

Gr1:
- Chemical equipment linings, electrolytic cells
- Parts requiring high formability (e.g., titanium foil, bellows)
- Architectural cladding (roofing, facades)
Gr2:
- Heat exchangers, piping systems
- Marine engineering (ship components, desalination equipment)
- Medical implants (bone screws, dental devices)

5. How to Choose?

Choose Gr1: For applications requiring extreme formability, high purity, or superior corrosion resistance.
Choose Gr2: For general industrial use where a balance of strength and corrosion resistance is needed (80% of industrial applications use Gr2).

Conclusion

Both Gr1 and Gr2 are commercially pure titanium, but Gr2 sacrifices slight ductility for higher strength, making it the "go-to" choice for most industrial applications. Meanwhile, Gr1 remains irreplaceable in specialized forming or high-purity requirements.
