Gr5 titanium tube

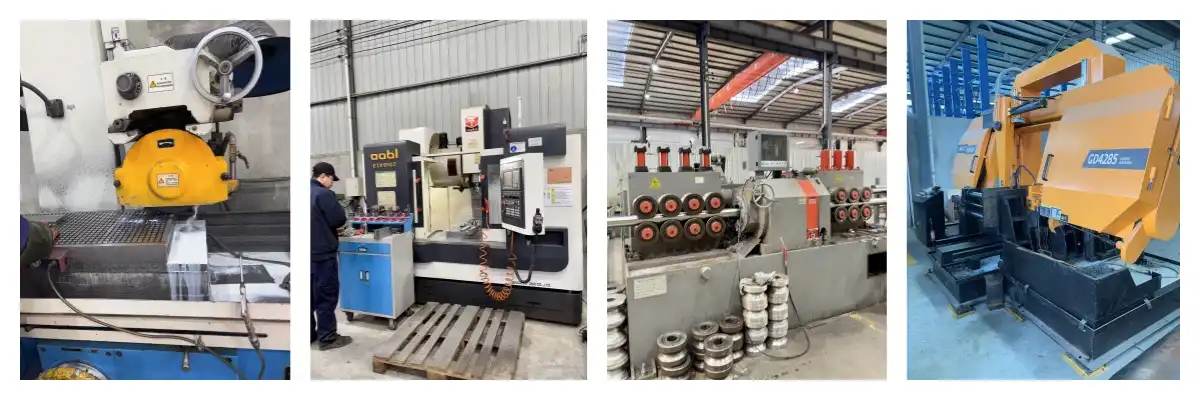

Two Factories & 30 titanium metal production lines21 years of experience in titanium metal manufacturingSysterm quality with ISO / SGS / TUV quality control.Delivery term: DHL, FEDEX, Air freight,Sea freightAnnual production: 800 tons
Send Inquiry

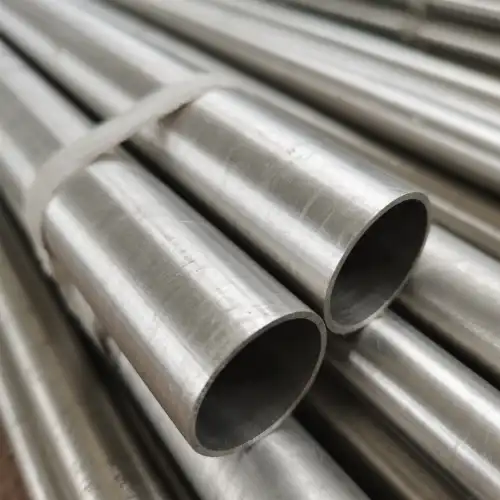

Gr5 Titanium Tube – High-Strength Solution for Demanding Industries
(Ti-6Al-4V Alloy Tubes Manufacturer & Supplier)
For over 21 years, LINHUI TITANIUM has delivered Gr5 titanium tube(Ti-6Al-4V alloy) to global industries requiring unmatched strength, corrosion resistance, and lightweight performance. With ISO, SGS, and TUV certifications, plus 800 tons of annual production capacity across two factories, we serve aerospace, medical, and energy leaders like GE Aviation and PETRONAS.
Product Description
Gr5 titanium tube are engineered for critical applications where failure isn't an option. Made from Ti-6Al-4V alloy, these tubes combine high-temperature resilience (up to 400°C) with 30% lighter weight than steel, making them ideal for fuel systems, surgical implants, and offshore platforms.
Specifications
| Parameter | Details |
|---|---|
| Material Grade | Ti-6Al-4V (ASTM B338 Gr5) |
| Outer Diameter | 6mm – 200mm |
| Wall Thickness | 0.5mm – 20mm |
| Length | Custom (Max 12m) |
| Surface Finish | Polished, Pickled, Annealed |
| Tolerance | ±0.05mm (Precision Medical Grades) |
Why Choose LINHUI's Gr5 Titanium Tube?
✅ Dual-Factory Production: 30 dedicated titanium lines ensure stable supply, even during global shortages.
✅ Zero Defect Guarantee: 100% ultrasonic testing + 3.1 material certificates for aerospace/medical clients.
✅ Fast Delivery: 15-day lead time for standard sizes – 40% faster than industry average.
Materials & Processing
Our Gr5 titanium tube are vacuum-arc remelted (VAR) to eliminate impurities, then cold-rolled for uniform grain structure. For ultra-high purity (O≤0.12%), we offer EB-melted grades meeting ASTM F136 implant standards.

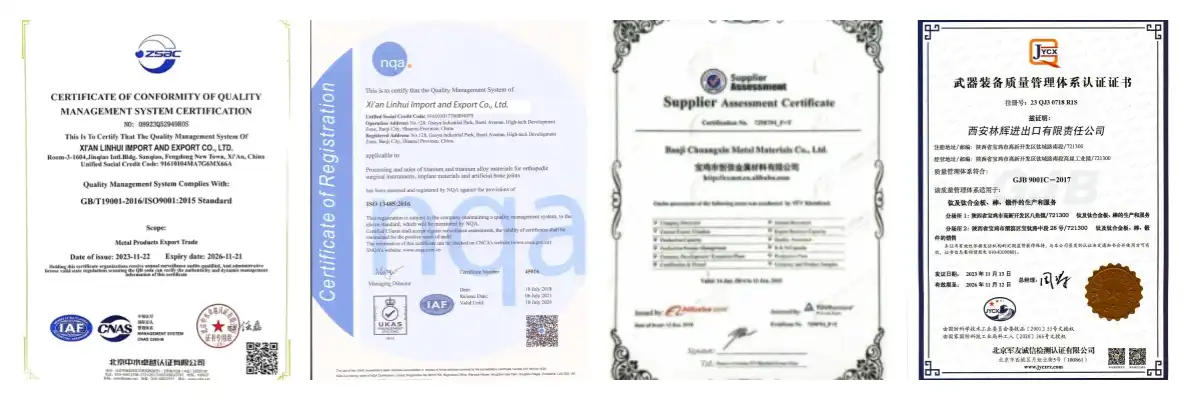

Certifications & Compliance
- Aerospace: AMS 4928, MIL-T-9047
- Medical: ISO 13485, FDA Submission Master Files
- Industrial: PED 2014/68/EU, NACE MR0175
Key Applications
- Aerospace: Hydraulic lines, engine bleed air systems (Airbus A320neo approved).
- Medical: Spinal fusion rods, dental implant abutments.
- Energy: Seawater desalination heat exchangers (30-year corrosion warranty).
- Automotive: EV battery cooling tubes with 2x thermal conductivity of aluminum.
Packaging & Shipping
- Medical Grades: Cleanroom-packed with nitrogen sealing.
- Bulk Orders: Wooden crates with anti-corrosion VCI coating.
- Global Logistics: DDP terms available via DHL/FedEx (3 days) or sea freight (25 days).
FAQ
Q: Can you supply thin-wall Gr5 titanium tube for heat exchangers?
A: Yes! We specialize in 0.5mm-wall tubes up to 8m long, tested at 150% working pressure.

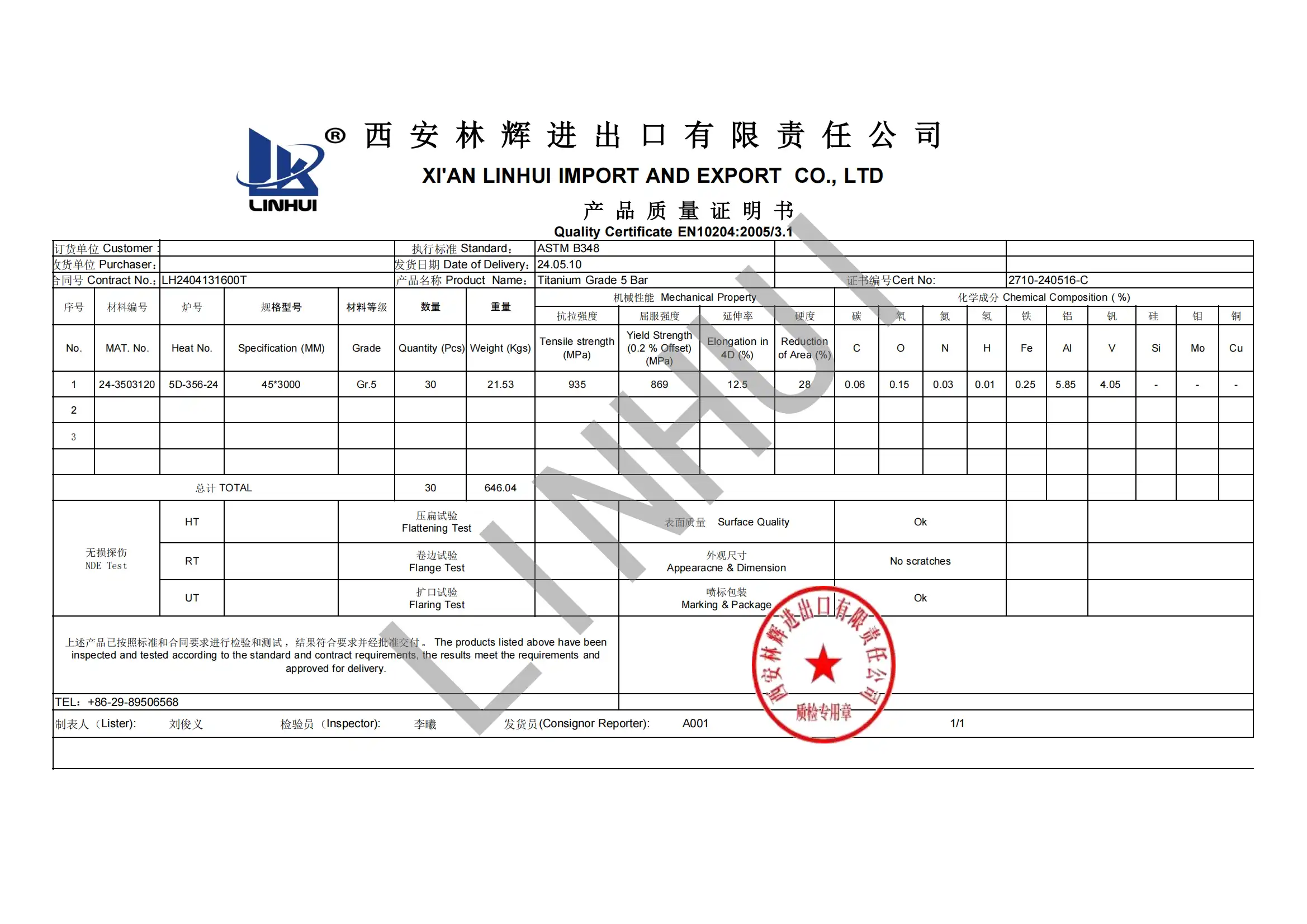

Q: Do you provide material traceability?
A: All batches include a 3.1/3.2 certificate with melt heat numbers and full chemical analysis.
Q: What's your MOQ?
A: 50kg for standard sizes; no MOQ for certified medical/aerospace orders.
Q: How do you handle welding challenges?
A: Free technical support includes TIG welding parameters and joint design templates.
Q: Can you match VSMPO's specs?
A: Our Gr5 tubes meet identical AMS standards at 20% lower cost – request a comparison report!
Your Trusted Gr5 Titanium Tube Partner
Facing Gr5 titanium tube supply chain uncertainties? With 60+ countries served and same-day quotation response, LINHUI TITANIUM is your bulletproof solution.
Contact Us Today, Email: linhui@lhtitanium.com
