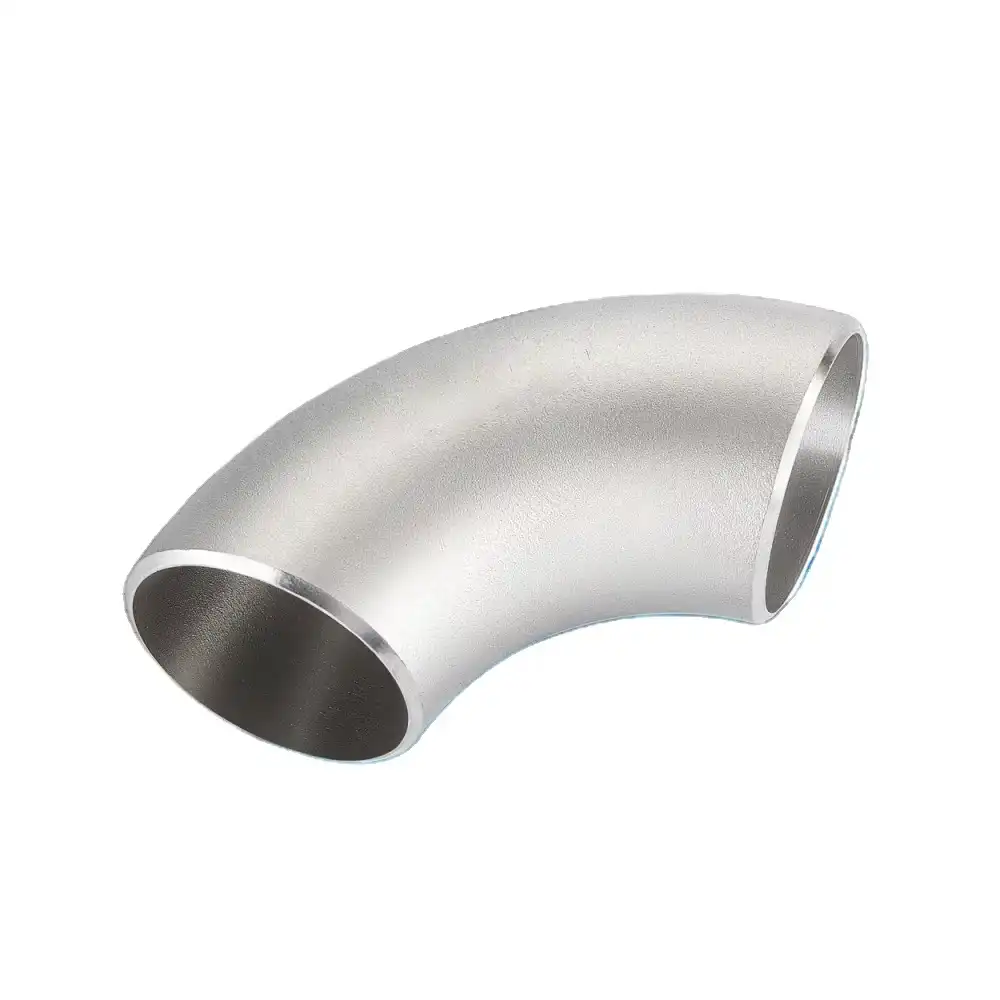

Butt Weld 90 Degree Elbow Fitting
Materials: carbon steel
Standard: Butt Weld 90 Degree Elbow Fitting
Manufacturing Process: Hot / Cold / Fabricate / Seamless / Welded / Induction
Outer Diameter: 1/2" NB TO 48" NB
Other Testing: ensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc.
Packaging: Carrate / Wooden Pallet / Wooden box-a
Test Certificate: Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Indian Boiler Regulations - 1950, IBR Approved, Bureau of Indian Standards BIS Approved Etc.
Butt Weld 90 Degree Elbow Fitting
For demanding piping systems, LINHUI Titanium produces high-end Butt Weld 90 Degree Elbow Fitting made of carbon steel. Our fittings are made using hot, cold, fabricate, seamless, welded, and induction methods, and their outside diameters range from 1/2" NB to 48" NB. According to NACE MR0175 and ASTM A262 standards, every fitting is put through a thorough testing process that includes tensile, hardness, PMI, ultrasound, Charpy Impact, and dye penetrant testing.
In addition to third-party inspection by SGS, TUV, DNV, LLOYDS, and ABS, we offer complete traceability with Manufacturer Test Certificates that adhere to EN10204 3.1/3.2. For international delivery, goods are safely packed in crates, wooden pallets, or boxes.
Key Features & Benefits
For high-pressure applications, our 90-degree elbow fittings provide exceptional structural stability. Excellent weldability and mechanical strength throughout temperature ranges are guaranteed by the carbon steel construction.
Every fitting passes dimensional examination to ASME B16.9 standards thanks to our thorough quality control. While the welded versions preserve constant base metal qualities, the seamless options remove weak areas.
You can fulfill strict project deadlines thanks to our 200+ ton inventory's prompt delivery. We accept short trial orders starting at 100 kg, which are perfect for testing before to large-scale purchases.
Specifications
Below is a detailed table outlining the specifications of our Butt Weld 90 Degree Elbow Fitting:
| Parameter | Details |
|---|---|
| Material | Carbon Steel |
| Standard | Butt Weld 90 Degree Elbow Fitting |
| Outer Diameter | 1/2" NB to 48" NB |
| Manufacturing Process | Hot/Cold/Fabricate/Seamless/Welded/Induction |
| Testing | Tensile, Hardness, Chemical Analysis, PMI Testing, etc. |
| Packaging | Crate/Wooden Pallet/Wooden Box |
| Test Certificate | Manufacturer Test Certificate as per EN10204 3.1/3.2 |
Manufacturing Process
We employ multiple forming techniques based on your requirements. Hot forming suits larger diameters above 24" NB, maintaining grain structure integrity under controlled temperature.
Cold fabrication produces tight-tolerance fittings for smaller sizes. Seamless manufacturing eliminates weld seams entirely, perfect for critical service conditions.
Induction bending creates smooth radius bends without wrinkles or wall thinning. Each process undergoes 100% dimensional verification before packaging.
Quality Inspection
Each Elbow Fitting passes a series of inspections. Dimensional checks confirm out-of-roundness and center-to-end measurements against ASME B16.9 norms.
Dye penetrant surface analysis and ultrasonic wall thickness scanning are examples of non-destructive testing. Pressure integrity is verified to 1.5x design specifications by hydrostatic testing.
Independent audits are carried out by third-party organizations like SGS and TUV. Complete material traceability paperwork, including test reports and heat data, is provided to you.
Applications Of Butt Weld 90 Degree Elbow Fitting
These fittings serve chemical processing plants handling corrosive media in piping networks. Power generation facilities rely on them for steam and condensate distribution systems.
Oil and gas operations use our elbows in gathering lines and processing units. Water treatment plants benefit from the durability in high-flow distribution networks.
HVAC contractors prefer them for commercial building installations requiring code compliance.
Export Markets
LINHUI TITANIUM ships Butt Weld 90 Degree Elbow Fitting to over 60 countries across North America, South America, and the Middle East. Our clients include EPC contractors like CEFC, PTT, and PETRONAS.
We maintain strong presence in Southeast Asian markets and CIS regions. African infrastructure projects regularly specify our fittings for reliability.
European customers value our PED 2014/68/EU compliance for pressure equipment applications.
Why Choose Us
Direct mill supply eliminates middlemen, reducing your procurement costs while maintaining quality control. Our engineering team provides technical consultation for material selection and specification.
Quotation response within 4 hours keeps your projects moving. Stock items ship in 3-7 days, with custom fabrication completed in 25-40 days.
Multilingual support in English, Chinese, Spanish, and Arabic ensures clear communication. We've built 20+ years of industry reputation through consistent quality delivery.
Packaging & Shipping
Fittings are wrapped in protective film then secured in wooden crates for ocean freight. Smaller orders use wooden pallets with steel banding for container consolidation.
Wooden box packaging provides maximum protection for high-value specialty items. All packages include desiccants and rust-preventive treatment for long-distance shipping.
We arrange logistics through trusted freight forwarders with door-to-door tracking capabilities.

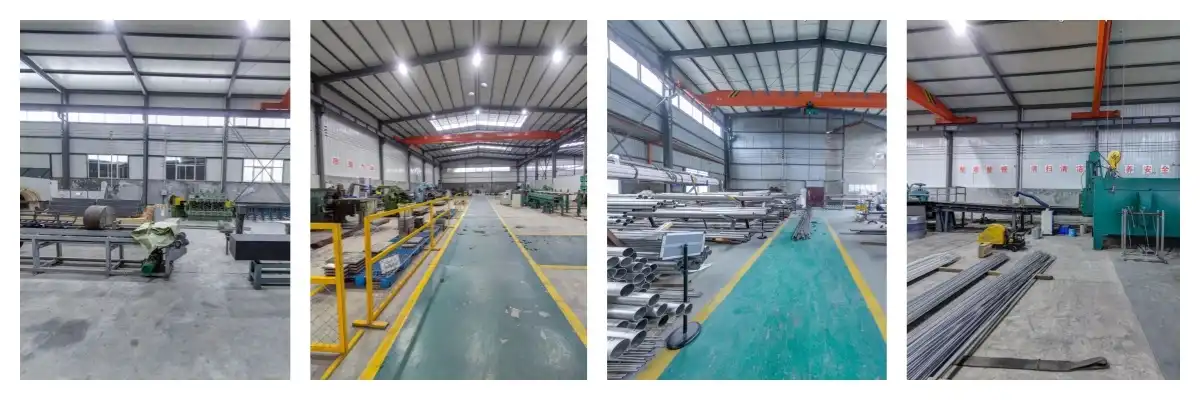

Our Factory
Linhui is a leading factory in the titanium industry, dedicated to providing top-tier products. We are equipped with modern machinery and a team of experts committed to innovation, efficiency, and customer satisfaction.
Certifications
We are certified by multiple reputable agencies, including:
- TUV Nord AD2000-W0
- PED 2014/68/EU
- ISO 9001:2015 QMS Certificate
- And many more renowned third-party inspection agencies.
FAQ
Q: What is the minimum order quantity that you accept?
A: Depending on your testing requirements, we can accommodate trial orders for stock items starting at 100 kg.
Q: Are material certificates available?
A: EN10204 3.1/3.2 certificates with complete chemical and mechanical test data are included in every shipment.
Q: Are custom specifications accepted?
A: Definitely. Within a day, our technical staff evaluates drawings and takes into account unique material or dimensional specifications.
Q: What kind of inspection are you able to set up?
A: Prior to shipment, we enable third-party inspection by SGS, TUV, DNV, LLOYDS, or ABS.
Q: How do you guarantee a constant level of quality?
A: Reliability is ensured by 100% NDT testing, ISO 9001:2015 certified processes, and rigorous adherence to ASTM/ASME standards.
Request a Quote
Ready to source reliable Butt Weld 90 Degree Elbow Fitting for your project? Contact our technical team at linhui@lhtitanium.com with your specifications. We'll respond within 4 hours with competitive pricing and delivery schedules.
