Titanium welding wires
Grade: GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12
Standard: GB,ASTM, BS, BSW, ISO ASTM B863 ASTM B348 ASTM F67 ASTM F136
Ti (Min): 99.8%
Strength: 240
Wire Gauge: 0.1-7.0mm
Titanium Welding Wires
XI AN LINHUI IMPORT AND EXPORT Co., LTD. manufactures precision Titanium welding wires conforming to ASTM B863, ASTM B348, ASTM F67, and ASTM F136 standards. Our wire portfolio covers Grades GR1, GR2, GR3, GR4, GR5, GR7, GR9, and GR12, with a minimum titanium purity of 99.8%. Wire gauge ranges from 0.1mm to 7.0mm, offering tensile strength starting at 240 MPa. Each spool is traceable via heat number, ensuring full EN 10204 3.1 compliance. With controlled low interstitial content (Hydrogen <0.005%, Oxygen <0.10%), our wires eliminate porosity defects during TIG and MIG welding operations, delivering leak-proof joints for critical industrial environments.
Key Features & Benefits
Our items give predominant erosion resistance in chlor-alkali plants, seaward stages, and control era offices. The self-healing oxide layer anticipates setting in seawater up to 260°C, expanding benefit life past 20 years.
High strength-to-weight proportion diminishes basic stack in aviation congregations. Biocompatible grades meet FDA necessities for therapeutic inserts. Shinning surface wrap up dispenses with defilement dangers, guaranteeing clean circular segments and defect-free welds.
Product Information
| Product name | Titanium welding wire |
| Grade | GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 |
| Standard | GB,ASTM, BS, BSW, ISO ASTM B863 ASTM B348 ASTM F67 ASTM F136 |
| Ti (Min) | 99.8% |
| Strength | 240 |
| Wire Gauge | 0.1-7.0mm |
| Surface | Surface |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Feature | Excellent Corrosion Resistance |
| Product situation | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
| Application | Chemical equipment, such as pipes, heat exchangers, evaporators, heaters, reaction kettles et |
Manufacturing Process
Wire drawing begins with forged titanium billets, progressively reduced through carbide dies. Intermediate annealing at 650–750°C relieves stress without grain coarsening.
Acid pickling removes surface oxides using HF-HNO₃ solutions. Final diameter tolerance is maintained within ±0.02mm. Spools undergo ultrasonic testing to detect subsurface cracks before packaging.
Quality Inspection
· 100% Dimensional Verification: Laser micrometers check diameter uniformity
· Chemical Analysis: Spectroscopy confirms grade compliance
· Tensile Testing: Random sampling per ASTM E8 standards
· Surface Inspection: Visual and microscopic examination for scratches

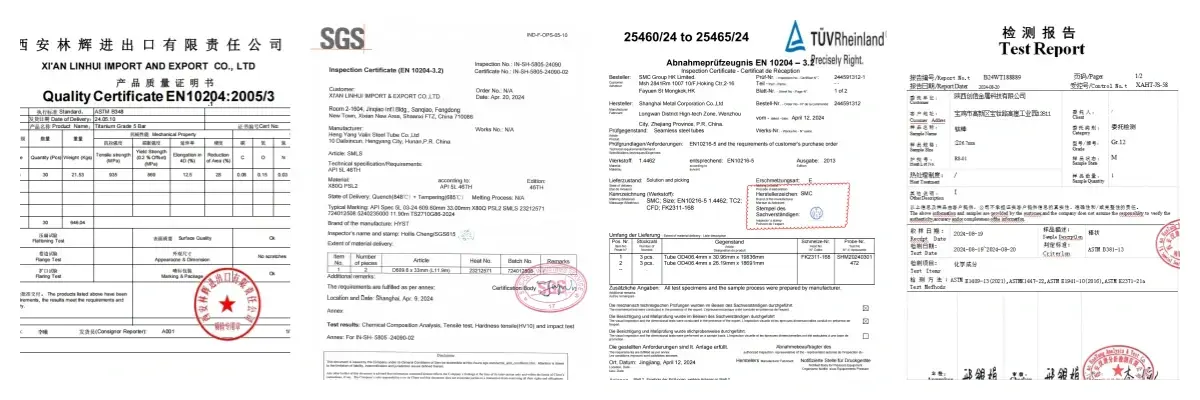

· Third-Party Certification: SGS, BV, TÜV reports available upon request
Applications
Titanium welding wires serve demanding industries:
Chemical Handling: Welding warm exchangers and response vessels uncovered to chlorine, sulfuric corrosive, and hypochlorite arrangements. Review 7 wires exceed expectations in diminishing corrosive environments.
Marine Designing: Joining seawater channeling, desalination plant tubing, and seaward fix components where hole erosion resistance is mandatory.
Power Era: Creating condenser tubing in atomic and fossil fuel plants, guaranteeing zero cooling water spillage in steam cycles.
Aerospace: Get together of airframe structures and motor components requiring tall strength-to-weight proportions at raised temperatures.
Export Markets
We supply over 60 nations over North America, Europe, the Center East, Southeast Asia, and South America. Long-term clients incorporate EPC temporary workers in oil & gas, chemical preparing, and marine sectors.
Why Choose Us?
· Direct Process Estimating: Factory-direct supply kills middlemen
· Fast Reaction: Citations inside 4 hours; stock conveyance in 3–7 days
· Flexible MOQ: Trial orders from 100 kg supported
· Engineering Back: In-house metallurgists help with fabric selection
· Full Traceability: Warm number following with EN 10204 3.1/3.2 certificates
Packaging & Shipping
Wires are wound on corrosion-resistant plastic spools, fixed in vapor boundary film, and pressed in plywood cases. Each case incorporates MTC documentation and pressing records. Shipping through discuss cargo or ocean cargo to your assigned port.
FAQ
Q: What's the least arrange quantity?
A: Stock orders begin from 100 kg. Custom sizes require 500 kg minimum.
Q: Can you give NORSOK-certified wire?
A: Yes, Review 2 and Review 7 wires meet NORSOK M-650 for seaward applications.
Q: How do you anticipate contamination?
A: Shinning tempering and corrosive washing dispose of surface oils. Vacuum bundling avoids oxidation amid transport.
Q: Do you offer test spools?
A: Yes, 1–5 kg tests accessible for weld capability testing.
Q: What welding forms are compatible?
A: TIG (GTAW), MIG (GMAW), and plasma circular segment welding.
Request a Quote
Need customized wire specifications or technical consultation with Titanium welding wires? Contact our engineering team at linhui@lhtitanium.com for immediate assistance.
