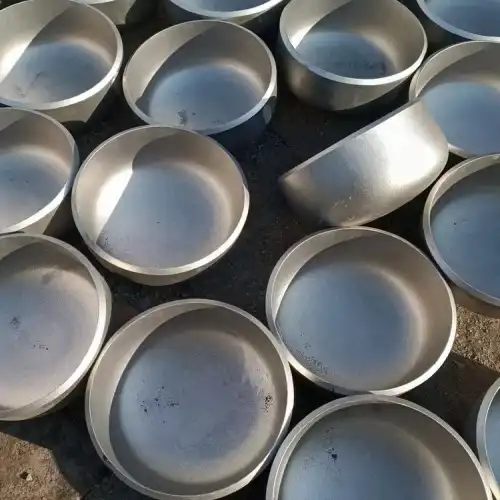

When fixing channelling frameworks or weight vessels, choose the right parts. The crucial distinction between a pipe dish end cap and a standard pipe cap lies in their auxiliary design and pressure-handling capabilities. Dished End Caps include a concave, dome-shaped profile that conveys inner pressure equally over the surface, making them perfect for high-pressure applications in vessels and tanks. Standard pipe caps, by contrast, regularly have level or somewhat adjusted plans suited for low-pressure line terminations. Understanding these qualifications makes a difference; procurement experts select components that guarantee system integrity, compliance with security measures, and operational life span over oil, gas, chemical, and marine businesses.
Understanding Pipe End Caps: Definitions and Basic Concepts
Pipe end caps serve as critical sealing components across industrial infrastructure, preventing fluid escape, contamination, and system compromise. These fittings terminate piping runs or close off vessel openings, maintaining system integrity during operation, testing, or dormancy.
What Are Pipe End Caps?
Pipe end caps are closure devices welded, threaded, or mechanically fastened to pipe ends or vessel nozzles. Their primary function involves sealing systems against leakage while accommodating operational pressures and temperatures. In pressure vessel construction, end caps must withstand internal forces without deformation or failure, making material selection and geometric design paramount considerations.
Industrial Applications and Use Cases
These components find broad arrangements over different segments. In oil and gas facilities, caps seal investigation well casings and transmission pipeline terminuses. Chemical preparation plants utilise them on reactor vessels and heat exchanger tube sheets where corrosive media demand specialised combinations. Sea applications incorporate balance tank closures and offshore platform channelling, where saltwater exposure requires prevalent erosion resistance. Aviation water-powered frameworks utilise lightweight, high-strength caps to minimise weight while keeping up security edges. HVAC establishments utilize less difficult plans for ductwork, where weight requirements stay modest.
Manufacturing Materials and Production Methods
Carbon steel remains the workhorse material for general industrial applications, offering adequate strength at economical pricing. Stainless steel grades like 304 and 316 provide enhanced corrosion resistance for chemical and marine environments. Titanium alloys, particularly Grade 2 and Grade 5, deliver exceptional strength-to-weight ratios and unmatched corrosion immunity in the harshest conditions, from offshore desalination to aerospace fluid systems. Manufacturing processes include hot forging for thick-walled pressure vessel caps, cold forming for thinner components, and precision machining for critical tolerances. Advanced manufacturers employ deep drawing and spinning techniques to create seamless dished profiles without weld seams that could compromise integrity.
Industry Standards Governing End Caps
Compliance with built-up codes guarantees security and interoperability. ASME B16.9 indicates measurements, resistances, and checking requirements for factory-made steel butt-welding fittings, including caps. ASTM B363 oversees titanium and titanium alloy consistent and welded fittings, specifying their chemical composition and mechanical properties. API benchmarks apply to petroleum industry applications, whereas PED 2014/68/EU certification is obligatory for weight gear promoted in Europe. Classification societies such as DNV, ABS, and Lloyd's Register endorse sea components, confirming material traceability, non-destructive testing, and fabrication quality frameworks.
Core Differences Between Dish End Caps and Regular Pipe Caps
The structural and functional distinctions between these components directly impact their suitability for specific applications, affecting everything from pressure ratings to lifecycle costs.
Structural Design and Geometry
Dished end caps incorporate a curved, bowl-like profile that may be hemispherical, elliptical, or torispherical depending on application requirements. This geometry creates a shell structure that converts internal pressure into membrane stresses distributed across the cap surface, minimising stress concentrations. Regular pipe caps typically feature flat or slightly domed profiles with straight sidewalls. Flat caps concentrate stress at the cap-to-pipe junction, limiting their pressure capacity. The curvature radius, knuckle radius, and straight flange dimensions in dished designs are precisely calculated per ASME Section VIII Division 1 to optimise strength while controlling material costs.
Material Specifications and Thickness Considerations
While both cap types are available in similar material grades, dished configurations often permit reduced wall thickness compared to flat designs under equivalent pressure. The self-supporting curved geometry requires less material to achieve the same strength, translating to weight and cost savings in large-diameter applications. Titanium dished end caps exemplify this advantage, where the material's high tensile strength allows thin-walled construction that would be impossible with traditional alloys. Material selection also impacts thermal expansion behaviour, with titanium's low coefficient minimising stress during temperature cycling compared to austenitic stainless steels.
Pressure Performance and Stress Distribution
Pressure vessel theory demonstrates that spherical shells experience uniform tensile stress equal to pressure times radius divided by twice the wall thickness. Flat plates, conversely, develop bending stresses proportional to the square of the radius, rapidly escalating stress levels as diameter increases. This fundamental difference explains why dished configurations dominate high-pressure vessels while flat caps remain relegated to low-pressure piping. Finite element analysis of dished caps reveals stress intensification only at the dish-to-flange transition, a localised concern addressed through thickness transitions or reinforcement pads. Regular caps exhibit peak stresses at the centre and edges, requiring substantially heavier construction for equivalent safety margins.
Fatigue Resistance and Thermal Cycling
Repeated pressure fluctuations and temperature swings induce fatigue damage that eventually leads to cracking. Dished geometries distribute cyclic stresses more uniformly, extending fatigue life compared to flat designs where stress concentrations accelerate crack initiation. Titanium alloys exhibit excellent fatigue properties, particularly Grade 5 with its elevated strength and fracture toughness. Thermal cycling presents challenges when dissimilar materials are welded together; titanium's compatibility with various alloys and its resistance to thermal fatigue make it advantageous in steam systems and cryogenic applications where temperature excursions are routine.
How to Choose Between a Dish End Cap and a Regular Pipe Cap for Your Project?
Selecting the appropriate cap type requires evaluating operational parameters, economic factors, and regulatory requirements specific to your installation.
Matching Design to Operational Demands
Pressure conditions dictate initial design direction. Systems operating above 150 psi typically benefit from dished configurations, while low-pressure applications below 50 psi may utilise simpler flat caps. Environmental factors matter equally—corrosive atmospheres, cryogenic temperatures, or elevated heat narrow material choices toward specialised alloys. Titanium emerges as the preferred solution where simultaneous demands for corrosion immunity, weight reduction, and pressure capacity exist, particularly in offshore oil production, chemical tanker construction, and aerospace fuel systems. Vessel diameter influences geometry selection; small-bore piping under 6 inches accommodates flat caps economically, whereas large-diameter vessels mandate dished designs to control material costs and weight.
Comparative Advantages and Limitations
Dished end caps offer superior pressure ratings, reduced weight for equivalent strength, and longer service life in demanding conditions. Their curved profiles resist deformation and distribute loads efficiently, minimising support structure requirements. Limitations include higher initial manufacturing costs and more complex welding procedures requiring qualified personnel and weld procedure specifications. Regular pipe caps provide cost-effective solutions for non-critical applications, simpler installation, and readily available inventory in common sizes. Their limitations become apparent under high pressure, where excessive thickness makes them impractical, and in corrosive environments where flat surfaces trap contaminants and accelerate degradation.
Procurement Considerations for Large-Scale Projects
Bulk procurement requires assessing provider capabilities beyond unit estimating. Certification portfolios matter tremendously—manufacturers holding PED, ASME U-stamp, and classification society endorsements illustrate quality framework development and review framework. Fabric traceability through process test certificates gives archived confirmation of chemistry and mechanical properties, basic for code compliance. Customisation capabilities empower optimisation; providers advertising in-house building can tailor cap plans to particular pressure-temperature combinations, lessening over-specification costs. Lead time administration becomes basic in project planning; set up producers with coordinated supply chains keep up fabric inventories and production capacity to meet forceful conveyance necessities without quality compromises.
The procurement group ought to confirm provider testing capabilities, including positive fabric identification, ultrasonic examination, radiography, and hydrostatic testing. Guarantee terms and after-sales specialized bolster give confirmation, especially when indicating intriguing materials like titanium where welding expertise and compatibility information are basic. Building connections with producers experienced in serving oil majors, EPC contractors, and OEMs guarantees access to application designing bolster that optimises component choice and long-term execution.
Installation and Maintenance of Dished End Caps vs Regular Pipe Caps
Proper installation techniques and maintenance protocols directly impact system reliability, safety, and operational costs over the equipment lifecycle.
Installation Best Practices and Procedures
The dished end cap establishment requires consideration of fitment resistance and arrangement. Pre-welding planning incorporates beveling the cap and pipe edges per ASME B16.25, keeping up cleanliness to anticipate defilement, and tack welding at different points to control mutilation. Welding methods must be qualified for the particular fabric combination; titanium requires inactive gas protection on both root and cap passes, with trailing shields securing the cooling weld zone from air defilement. Interpass temperature control avoids grain development and keeps up mechanical properties. Post-weld warm treatment may be indicated for carbon steel caps in thick areas to calm remaining stresses, although titanium by and large does not require PWHT. Customary level caps take after comparative methods but display challenges with roots accessing level faces, regularly requiring backing rings or consumable embs.
Maintenance Inspection and Longevity
Scheduled inspection intervals should include visual examination of external surfaces for corrosion, mechanical damage, or coating degradation. Ultrasonic thickness measurements detect internal corrosion or erosion before wall thinning compromises pressure capacity. Weld joint inspection via magnetic particle or dye penetrant testing reveals surface-breaking cracks that develop from fatigue or stress corrosion. Dished configurations typically require less frequent intervention due to their stress distribution advantages and resistance to localised corrosion. Titanium components extend inspection intervals substantially; installations in seawater service have demonstrated decades of service without measurable corrosion, contrasting sharply with carbon steel requiring coating maintenance and eventual replacement.
Common Installation Challenges and Solutions
Misalignment between cap and pipe creates welding difficulties and stress risers. Using proper fixturing and alignment tools ensures concentricity before tacking. Distortion during welding can be minimised through balanced welding sequences and thermal management. Titanium's sensitivity to contamination requires extra precautions; back-purging with argon eliminates oxidation on the root side, while surface cleaning removes oils and moisture that compromise weld quality. Training welding personnel on titanium-specific techniques prevents common defects like porosity and tungsten inclusions that reduce joint strength. Regular caps often trap condensate or process fluids in the flat cavity, accelerating corrosion; drainage provisions or venting holes address this concern.
Market Overview: Brands, Pricing and Procurement Strategies
Understanding market dynamics helps procurement professionals navigate supplier selection, pricing negotiations, and quality assurance when sourcing pipe end caps.
Leading Manufacturers and Certification Standards
The worldwide market for weight vessel components incorporates specialised producers focusing on high-performance materials and applications. LINHUI TITANIUM stands among recognised providers of titanium dished end caps, leveraging over two decades of involvement serving oil, gas, chemical, and marine businesses. The company holds comprehensive certifications, including PED 2014/68/EU, ASME code stamps, and classification society endorsements from DNV, ABS, Lloyd's Enlist, and others, approving fabrication quality frameworks and item conformance. Set up connections with major clients like national oil companies, worldwide EPC contractors, and worldwide energy enterprises to illustrate demonstrated capability in conveying large-volume orders and assembling exacting specifications. Other legitimate producers incorporate manufacturing houses specialising in heavy-weight vessel heads and accuracy fabricators creating thin-gauge aviation components. Supplier assessment ought to confirm certification, assessment capabilities, and fabric sourcing transparency. Coordinate producer connections regularly to secure superior estimating and specialised backup compared to merchants, especially for custom determinations requiring designing input.
Pricing Factors and Cost Analysis
Fabric choice rules for estimating structures. Carbon steel caps are the most common, but stainless steel caps cost 2 to 3 times more, depending on the amount of nickel in them and how they are displayed. Titanium commands premium estimating, reflecting crude fabric costs, specialised preparation hardware, and quality control meticulousness. Despite higher initial investment, lifecycle cost-benefit analysis regularly favours titanium in corrosive situations where upkeep, substitution, and downtime costs of lesser materials accumulate quickly. Generation volume altogether impacts unit estimating; producers offer significant rebates for bulk orders as fixed costs are spread over bigger amounts. Customisation includes building and tooling costs but dispenses with execution compromises from utilising standard components in non-standard applications. Lead time considerations influence project budgets. Assisted generation carries premium charges, whereas standard conveyance windows empower cost optimisation through proficient generation planning. Cash changes impact universal procurement; long-term agreements with cost stabilisation clauses secure against instability. Transportation costs vary based on weight and destination; titanium's lightweight nature reduces cargo costs compared to similar steel components.
Effective Procurement Strategies for Industrial Buyers
Strategic sourcing approaches maximise value while ensuring quality and delivery reliability. Developing approved supplier lists based on certification verification, reference checks, and sample evaluation streamlines future purchasing. Long-term partnership agreements provide volume pricing, priority production allocation, and collaborative product development opportunities. Maintaining dual sources mitigates supply chain risks without sacrificing negotiating leverage. Standardising specifications across projects increases volume with individual suppliers, improving commercial terms while simplifying inventory management. Technical collaboration with manufacturers during the design phases optimises component selection. Suppliers experienced in pressure vessel applications contribute engineering insights that balance performance requirements against cost constraints. Material selection guidance based on service conditions prevents over-specification while ensuring adequate safety margins. Prototype testing validates design assumptions before committing to production quantities, reducing risk in critical applications.
Quality assurance provisions should mandate material certifications, dimensional inspection reports, and non-destructive testing documentation. Third-party inspection services provide independent verification when internal resources are limited. Establishing clear acceptance criteria and non-conformance procedures protects project interests while maintaining supplier accountability. Building collaborative relationships transforms suppliers into partners invested in project success rather than transactional vendors focused solely on order fulfilment.
Conclusion
The distinction between dished end caps and regular pipe caps centres on structural geometry, pressure capacity, and application suitability. Dished configurations provide superior performance in high-pressure vessels through efficient stress distribution and reduced weight, while regular flat caps serve adequately in low-pressure piping terminations. Material selection, particularly titanium alloys, delivers exceptional corrosion resistance and strength-to-weight ratios that extend service life and reduce lifecycle costs despite higher initial investment. Procurement decisions should evaluate operational demands, certification requirements, and supplier capabilities to optimise component selection. Proper installation techniques and maintenance protocols ensure system integrity and safety throughout the equipment lifecycle.
FAQ
Can dished end caps and regular pipe caps be used interchangeably in pressure vessel applications?
They cannot be substituted freely. Dished end caps are specifically engineered for pressure vessel service, with calculations per ASME Section VIII determining required thickness based on geometry and material properties. Regular flat caps lack the structural efficiency for high-pressure containment and would require impractically thick construction to achieve equivalent safety. Using a flat cap where a dished design is specified violates code requirements and creates serious safety hazards.
What material grade is optimal for high-pressure corrosive environments?
Titanium Grade 2 provides outstanding corrosion resistance with adequate strength for moderate pressures, while Grade 5 (Ti-6Al-4V) offers nearly triple the tensile strength for extreme pressure conditions. The selection depends on specific pressure-temperature combinations and corrosive media. Duplex stainless steels offer an intermediate solution with better corrosion resistance than austenitic grades at lower cost than titanium, though they cannot match titanium's performance in chloride and acidic environments.
How does wall thickness compare between dished and flat designs at equivalent pressure ratings?
Dished configurations typically require 40-60% less wall thickness than flat plates at equivalent pressure due to membrane stress versus bending stress mechanics. This advantage increases with diameter; large-diameter flat caps become prohibitively heavy while dished designs remain practical. The precise ratio depends on geometry, with hemispherical heads offering maximum efficiency and torispherical providing a cost-performance balance.
Are there weight advantages when specifying titanium dished end caps versus steel?
Substantial weight reduction occurs due to titanium's density being 60% lower than steel while maintaining comparable or superior strength. A Grade 5 titanium dished cap weighs approximately half that of a stainless steel equivalent with a similar pressure rating. This becomes critical in offshore platforms, aerospace applications, and mobile equipment where weight directly impacts performance, fuel efficiency, or payload capacity.
Partner With a Trusted Dished End Caps Manufacturer
LINHUI TITANIUM provides precision-engineered dished end caps and pipe closure solutions, supported by international certifications such as PED and ASME, and approvals from DNV, ABS, and Lloyd's Register. Our Xi'an manufacturing facility employs advanced forming technology, rigorous quality testing with ultrasonic flaw detection and metallographic analysis, and experienced engineering support to meet the exacting demands of oil, gas, chemical, and marine applications. Whether you require Grade 2 commercially pure titanium for corrosion resistance or Grade 5 alloy for high-strength aerospace applications, our team provides tailored solutions with competitive pricing for bulk orders. Contact our specialists at linhui@lhtitanium.com to discuss your project requirements, request technical specifications, or obtain quotations for your next procurement.
References
1. American Society of Mechanical Engineers. (2021). ASME Boiler and Pressure Vessel Code, Section VIII, Division 1: Rules for Construction of Pressure Vessels. New York: ASME Press.
2. Harvey, J.F. (1991). Theory and Design of Pressure Vessels, 2nd Edition. New York: Van Nostrand Reinhold.
3. ASTM International. (2022). ASTM B363-20: Standard Specification for Seamless and Welded Unalloyed Titanium and Titanium Alloy Welding Fittings. West Conshohocken: ASTM International.
4. European Parliament. (2014). Directive 2014/68/EU on the Harmonisation of the Laws of the Member States Relating to the Making Available on the Market of Pressure Equipment. Official Journal of the European Union.
5. Schutz, R.W. and Watkins, H.B. (1998). Recent Developments in Titanium Alloy Application in the Energy Industry. Materials Science and Engineering A, Volume 243, Issues 1-2, Pages 305-315.
6. Boyer, R., Welsch, G., and Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. Materials Park: ASM International.
