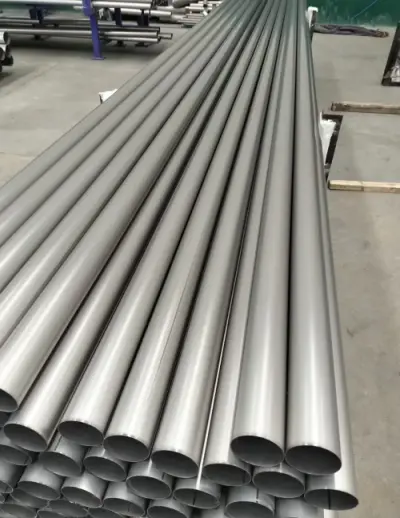

When it comes to industrial pipes, stainless steel and aluminum alloys might come to mind. However, in high-tech fields like aerospace, deep-sea exploration, and medical implants, a more robust pipe material is emerging: titanium welded pipe. Relying on real-world test data and field validation, it overcomes the shortcomings of traditional pipes in strength, lightweighting, and corrosion resistance. Today, we'll examine eight key factors that make titanium-welded pipes the new favorite in high-end manufacturing!
1. Strong and Tough: Lightweight and Pressure-Resistant
Titanium welded pipes boast a tensile strength of 600-900 MPa, significantly stronger than 304 stainless steel (520 MPa) and 6061 aluminum alloy (290 MPa), yet boast only 60% of the density of steel. In satellite propulsion systems, replacing stainless steel pipes results in 30% thinner walls, a 15% increase in pressure resistance, and a 35% reduction in weight per pipe, directly increasing satellite payload capacity by 5%. Even in deep-sea exploration equipment, it can withstand high pressure without deforming, and its service life is 2.5 times that of traditional steel pipes.
2. Lightweighting: Helping New Energy Vehicles Go Further
The density of titanium (4.51g/cm³) is much lower than that of steel (7.85g/cm³) and copper (8.96g/cm³). After a new energy vehicle company switched to titanium-welded pipes for engine cooling ducts, the weight of a single pipe dropped from 1.2kg to 0.6kg. This weight reduction is equivalent to reducing the vehicle's carrying capacity by two passengers, resulting in a 5% increase in range and an 8% improvement in cooling efficiency. More importantly, while its initial cost is higher than aluminum pipes, it offers better corrosion resistance, a maintenance cycle twice as long, and comparable lifecycle costs.
3. Corrosion Resistance "Ceiling": Three Years of No Pitting in the South China Sea
The oxide film (TiO₂) on the titanium surface can withstand hydrochloric and sulfuric acid concentrations up to 25%, and is also resistant to seawater corrosion. A heat exchanger on an offshore platform using titanium welded pipes has remained corrosion-free for three years in the high-salt environment of the South China Sea, while 316L stainless steel pipes showed pitting corrosion after just one year. Test data shows that the annual corrosion rate of titanium welded pipes is only 0.002mm/year, one-tenth the rate of stainless steel pipes (0.02mm/year). In the chemical industry, the 10-year maintenance cost of titanium welded pipes is 30% lower than that of 316L stainless steel pipes, reducing the annual maintenance costs of one chemical company from 2 million yuan to 1.4 million yuan.
4. Wide Temperature Resistance: Stable from -253°C to 500°C
Titanium alloys maintain stable performance between -253°C and 500°C. A liquid oxygen delivery system using titanium welded pipes experienced 50,000 thermal cycles from -196°C to +200°C without leaking, while aluminum pipes cracked after 2,000 cycles. In petrochemical cracking units, titanium welded pipes offer comparable temperature resistance to nickel-based alloy pipes, but at a 40% lower cost. They can also operate at 500°C for two years without deformation, whereas nickel-based alloy pipes require annual replacement.
5. Ultra-stable Dimensions: They remain stable even under temperature fluctuations.
Titanium's coefficient of linear expansion (8.6 × 10⁻⁶/°C) is significantly lower than that of carbon steel (12 × 10⁻⁶/°C) and aluminum (23 × 10⁻⁶/°C). After one company switched steam pipes to titanium-welded pipes, they experienced a 30% reduction in pipe expansion, an 80% drop in flange leakage, and a reduction in annual maintenance visits from eight to two. In semiconductor equipment, titanium-welded pipes' low thermal expansion improves fluid transmission accuracy by 10%, reducing chip scrap rates from 3% to 1.5%.
6. Good Biocompatibility: The 10-Year Loosening Rate of Artificial Joints is Only 2%
Titanium's elastic modulus (105 GPa) is close to that of human bone tissue, and it is non-magnetic and non-toxic. Artificial joints made from titanium welded tubes have a 10-year loosening rate of only 2%, significantly lower than cobalt-chromium alloys (6%), and the post-operative infection rate is also reduced by 40%. A hospital tracking 500 patients found that the rejection rate of titanium-welded tube implants was only 0.8%, far lower than the 3.2% for cobalt-chromium alloys. 3D-printed titanium welded tube stents can now be customized, shortening patient recovery time by 30% and reducing the five-year restenosis rate to 5%.
7. Cost-effectiveness Throughout the Lifecycle: 50% Cost Savings Over 15 Years
Although the initial cost of titanium welded tubes is 30% higher than that of 316L stainless steel tubes, they offer a 15-year service life, 2.5 times that of stainless steel and four times that of carbon steel. A certain offshore platform project initially spent an additional 2 million yuan on titanium welded pipes, but over 10 years, it saved 6 million yuan in maintenance costs, paying for itself in just four years. Furthermore, its lifecycle carbon emissions are 40% lower than those of steel pipes, aligning with the trend toward low-carbon manufacturing.
8. Wide Application Scenarios: From Satellites to Consumer Goods
Titanium-welded pipes are no longer limited to aerospace. In marine engineering, they address the rapid corrosion of stainless steel pipes in seawater. In the medical field, they reduce the risk of implant rejection. In the new energy sector, their high-temperature resistance of 500°C has made them a preferred pipe material for hydrogen storage and transportation, and they are gradually penetrating more consumer projects.
