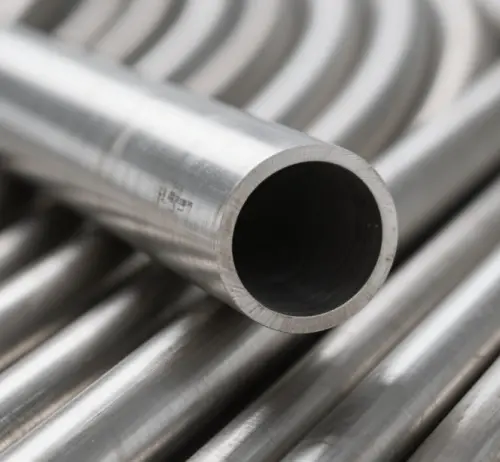

Titanium tubes are widely used in aerospace, chemical, medical, and marine engineering fields due to their excellent strength, corrosion resistance, and lightweight properties. However, hydrogen embrittlement is a serious problem that may occur in titanium alloys under certain conditions, which can cause material embrittlement, cracking, and even failure. This article will explore the causes, hazards, and effective preventive measures of hydrogen embrittlement of titanium tubes to help engineers and manufacturers ensure the long-term reliability of titanium tubes.
1. What is hydrogen embrittlement of titanium tubes?
Hydrogen embrittlement refers to the phenomenon that after titanium alloys absorb excessive hydrogen atoms, the toughness of the material decreases, resulting in brittle fracture. Hydrogen atoms can penetrate the lattice structure of titanium and form hydrides under stress, thereby reducing the ductility and impact resistance of the material.
Main characteristics of hydrogen embrittlement
Sudden fracture without obvious plastic deformation
Cracks usually extend brittlely
Failure may also occur under low stress conditions
2. Main causes of hydrogen embrittlement of titanium tubes
- Environmental factors
Wet or acidic environment: water vapor, acid mist, etc., will promote hydrogen penetration.
High temperature and high-pressure hydrogen environment, such as chemical reactors, petroleum refining equipment, etc.
Electrochemical corrosion: Titanium tubes may absorb hydrogen during cathodic protection or electroplating.
- Manufacturing and processing factors
Improper welding: Insufficient shielding gas during welding causes hydrogen to enter the molten pool.
Acid pickling or chemical treatment: Using hydrogen-containing acid (such as hydrofluoric acid) to clean titanium tubes may introduce hydrogen.
Machining: High stress processing (such as cold forming) may promote hydrogen adsorption.
- Material factors
Alloy composition: Some titanium alloys (such as α+β type Ti-6Al-4V) are more susceptible to hydrogen embrittlement than pure titanium.
Microstructure: β-phase titanium alloys are more resistant to hydrogen embrittlement than α-phase titanium alloys, but excess hydrogen can still cause problems.
3. How to prevent hydrogen embrittlement in titanium tubes? Key preventive measures
🔹 1. Strictly control the processing environment
Welding protection: Use high-purity argon (≥99.999%) to protect the welding area and avoid hydrogen contamination.
Avoid pickling: Use mechanical polishing or low-hydrogen chemical cleaning agents instead of corrosive media such as hydrofluoric acid.
Dry storage: Titanium tubes should be stored in a low-humidity (RH<40%) environment to avoid long-term exposure to water vapor.
🔹 2. Optimize the heat treatment process
Vacuum annealing: Vacuum heat treatment at 600-800℃ can effectively drive out absorbed hydrogen.
Avoid high-temperature oxidation: When heat treating in an air furnace, the oxygen content needs to be controlled to prevent hydrogen from reacting with oxygen to generate water vapor.
🔹 3. Choose the right titanium alloy
Low hydrogen sensitivity alloys, such as Ti-3Al-2.5V (GR9), are more resistant to hydrogen embrittlement than Ti-6Al-4V (GR5).
β titanium alloys, such as Ti-15V-3Cr-3Sn-3Al, have better resistance to hydrogen embrittlement.
🔹 4. Surface treatment and protection
Anodizing: Forms a dense oxide film on the surface of the titanium tube to prevent hydrogen penetration.
Coating protection: Use PTFE, ceramic coating, or titanium nitride (TiN) coating to reduce hydrogen adsorption.
🔹 5. Regular inspection and maintenance
Hydrogen content detection: Use the thermal conductivity method (TCD) or mass spectrometry (MS) to monitor the hydrogen content of titanium tubes (usually <150 ppm).
Non-destructive testing (NDT): Ultrasonic (UT) or X-ray testing (RT) to check for potential cracks.
4. Remedial measures after hydrogen embrittlement occurs
If the titanium tube has shown signs of hydrogen embrittlement, the following measures can be taken:
✅ Vacuum annealing (650℃×2h) to drive out hydrogen
✅ Mechanical removal of hydrogen embrittlement layer (such as grinding or machining)
✅ Replace the affected tube section (when hydrogen embrittlement is serious)
5. Conclusion: How to avoid hydrogen embrittlement of titanium tubes for a long time?
Optimize manufacturing process (welding, heat treatment, surface treatment)
Select suitable alloys (low-hydrogen sensitive materials)
Strictly control the environment (humidity, acidity, hydrogen exposure)
Regular inspection and maintenance (hydrogen content monitoring + non-destructive testing)
Through the above measures, the risk of hydrogen embrittlement of titanium tubes can be greatly reduced, ensuring their long-term stability and safety in harsh environments.
