The outstanding strength-to-weight ratio, superb corrosion resistance, and remarkable fatigue qualities of titanium 6Al4V wire make it a material that significantly improves performance across a variety of industries. This Grade 5 titanium alloy wire offers a weight reduction of forty percent in comparison to steel while keeping the same level of strength. As a result, it is a vital component for use in aircraft applications, medical devices, and chemical processing equipment. Because of its biocompatibility and its ability to be manufactured with precision, the wire enables ground-breaking developments in the field of high-performance engineering components and surgical implants.
Understanding Titanium 6Al4V Wire — Composition and Properties
Titanium 6Al4V wire is the pinnacle of metallurgical engineering. It is created by combining six percent aluminum and four percent vanadium with pure titanium to produce an alloy that possesses exceptional performance qualities. Through the application of this particular composition, the properties of the base metal are altered, resulting in a significant improvement in tensile strength, yield strength, and overall durability.
Alloy Composition and Microstructure
As an alpha stabilizer, the aluminum that is present in Ti-6Al-4V wire helps to improve the wire's strength while simultaneously reducing its density. On the other hand, vanadium serves as a beta stabilizer, which helps to improve the wire's ductility and workability. As a result of this dual-phase microstructure, a material is produced that strikes a balance between its strength and its formability, which is required for wire drawing activities. According to the criteria of ASTM B863 and AWS 5.16, our Grade 5 titanium wire is in compliance with these standards, which guarantees that the chemical composition and mechanical qualities of each batch are consistent.
Mechanical Properties and Heat Treatment
The mechanical qualities of 6Al4V wire can be optimized using heat treatment procedures that are specifically adapted for this wire, without sacrificing the overall dimensional stability. Even when subjected to higher temperatures, the wire is able to keep its strength qualities, and it has outstanding creep resistance up to 400 degrees Celsius. Because of its high thermal stability, titanium alloy wire is an excellent choice for use in both aeronautical engine components and industrial applications that frequently experience temperature swings.
How Titanium 6Al4V Wire Enhances Performance in Industrial Applications?
As the application of Ti-6Al-4V wire is examined across a variety of challenging industrial areas, the performance advantages of this wire become particularly apparent. Due to the exceptional combination of qualities that it possesses, it is able to concurrently handle several technical issues, hence providing solutions that conventional materials are unable to match.
Superior Strength-to-Weight Characteristics
Because of its remarkable strength-to-weight ratio, the wire is revolutionizing the design of components for applications that are sensitive to weight. Manufacturing companies in the aerospace industry take advantage of this benefit when it comes to aircraft fasteners and engine components. This is because every gram that is saved results in greater fuel economy and payload capacity. Our wire, which is created with accuracy, is available in diameters ranging from 0.05mm to 6mm. It is precisely constructed with tolerances of ±0.02mm, which guarantees consistent performance across all applications.
Fatigue Resistance and Durability
In cyclic loading scenarios, Ti-6Al-4V wire performs exceptionally well to meet the requirements of dynamic loading conditions, which require materials with outstanding fatigue resistance. The fatigue strength of the alloy is estimated to be close to sixty percent of its ultimate tensile strength, which is much higher than the strength of stainless steel alternatives. In applications where reliability cannot be compromised, such as in the case of medical devices, chemical processing equipment, and naval hardware, this quality proves to be of extraordinary value.
Biocompatibility and Medical Applications
Medical-grade Ti-6Al-4V wire meets ASTM F136 standards, which means it is safe for use in surgical implants and other medical products. The inert quality of the material keeps tissues from reacting badly, and it has the mechanical strength needed for dental and orthopedic implants. The precise drawing method we use to make our wire makes smooth surfaces that are great for medical uses.
Comparing Titanium 6Al4V Wire to Alternative Materials
Knowing how Ti-6Al-4V wire stacks up against other materials helps people who buy things make smart choices based on the needs of the job and the available budget.
Titanium 6Al4V vs. Stainless Steel Wire
Stainless steel wire costs less at first, but titanium 6Al4V wire is more valuable in the long run because it is less likely to rust and lighter. In marine settings, chloride-induced corrosion breaks down stainless steel, but titanium wire stays strong forever. Titanium wire's 40% weight loss often makes up for its higher price in aerospace and automotive uses, where weight loss is important.
Grade 5 vs. Pure Titanium Wire
When it comes to strength, Ti-6Al-4V wire is much better than pure titanium types (Gr1/Gr2). Pure titanium is very resistant to rust, but Grade 5 titanium wire has almost twice as much tensile strength. This means that parts can have smaller cross-sections and designs can be more flexible. Because it is stronger than pure titanium, 6Al4V wire can be used in structural applications where pure titanium would not work.
Procurement Insights — Sourcing Quality Titanium 6Al4V Wire
To get titanium 6Al4V wire, you need to carefully look at the skills, certifications, and quality control systems of the suppliers you are considering. Because handling titanium is so complicated, it's important to work with well-known companies that have a track record of success.
Essential Certifications and Standards
Suppliers of high-quality titanium 6Al4V wire keep a full set of certifications, such as ISO 9001:2015 quality management systems, ASTM material standards compliance, and approvals specific to the industry. Our factory is certified by DNV, ABS, CCS, and GL, among other major classification societies. This makes sure that our wire meets the strictest international standards. The PED 2014/68/EU certification shows that we follow the European guidelines for pressure equipment.
Supply Chain Reliability and MOQ Considerations
Reliable suppliers have flexible minimum order amounts and always meet quality standards. Our 1 kg MOQ for drawn titanium wire can be used for both making prototypes and mass production. Lead times depend on the diameter and surface finish requirements, but reliable suppliers keep extra stock on hand in case an urgent job comes up.
Supporting Your Procurement and Manufacturing Needs
Since 2000, LINHUI TITANIUM has been a top producer and supplier of high-quality titanium products, working closely with energy companies, aerospace makers, and industrial contractors around the world. Our headquarters in Xi'an are ideally located along the Belt and Road initiative, which makes shipping to places around the world easier and faster.
Comprehensive Product Portfolio

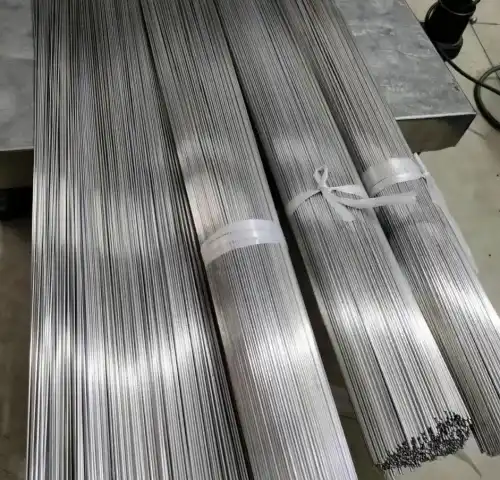

Our idea of a titanium products supermarket gives customers access to a range of grades and specs from a single source. This line of Ti-6Al-4V wire comes in both straight and twisted shapes, and its diameters range from 0.05mm to 6mm to meet a wide range of needs. Our drawing process skills guarantee consistent quality in terms of size and finish.
Global Reach and Proven Performance
LINHUI TITANIUM has been in business for 20 years and has sent hundreds of thousands of tons of titanium products to more than 60 countries and areas. Well-known companies like CEFC, PTT, PDVSA, PETROECUADOR, and PEMEX are among our clients, which shows that we can handle the complex needs of large energy and industry projects. Because we have a history of doing good work, procurement workers are confident in our ability to provide consistent quality and reliable supply chains.
Conclusion
Titanium 6Al4V wire is a revolutionary material that can help businesses that need high performance, dependability, and the lowest possible weight. Its unique mix of strength, resistance to corrosion, and biocompatibility makes it possible for big steps forward in the medical, industrial, and aircraft fields. The wire's high resistance to fatigue and stability at high temperatures make it valuable over time, and the lower upkeep costs and better performance often make up for the higher cost. For implementation to go smoothly, you need to work with well-known providers who have all the necessary certifications, have made products before, and know how to handle the global supply chain. Because LINHUI TITANIUM has a lot of experience and is dedicated to high excellence, we are the best partner for businesses that need reliable titanium 6Al4V wire solutions.
FAQ
Q: What industries benefit most from titanium 6Al4V wire applications?
A: Aerospace, medical device manufacturing, chemical processing, and marine industries derive the greatest benefits from Ti-6Al-4V wire due to its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. Aerospace applications include aircraft fasteners and engine components, while medical applications encompass surgical implants and orthodontic devices.
Q: How does heat treatment affect titanium 6Al4V wire properties?
A: Heat treatment significantly enhances the mechanical properties of Ti-6Al-4V wire by optimizing the alpha-beta microstructure. Proper heat treatment increases tensile strength, improves ductility, and enhances fatigue resistance while maintaining dimensional stability. The process must be carefully controlled to prevent grain growth and maintain wire drawing characteristics.
Q: What certifications should buyers prioritize when sourcing titanium 6Al4V wire?
A: Priority certifications include ISO 9001:2015 for quality management, ASTM B863 for material standards compliance, AMS 4951 for aerospace applications, and ASTM F136 for medical-grade wire. Additionally, classification society approvals from DNV, ABS, or GL assure marine and offshore applications.
Partner with LINHUI TITANIUM for Superior Titanium 6Al4V Wire Solutions
Transform your manufacturing capabilities with aerospace and medical-grade titanium 6Al4V wire from LINHUI TITANIUM, your trusted titanium 6Al4V wire supplier. Our comprehensive certification portfolio, including PED, ISO 9001:2015, and multiple classification society approvals, ensures compliance with the most demanding international standards. With over two decades of experience serving global energy companies and industrial contractors, we provide reliable supply chains, competitive pricing, and technical expertise to support your critical projects. Contact us at linhui@lhtitanium.com to discuss your specific requirements and receive a customized quote for premium-grade titanium wire solutions.
References
1. Boyer, R. R. (1996). An overview of the use of titanium in the aerospace industry. Materials Science and Engineering: A, 213(1-2), 103-114.
2. Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behaviour of Biomedical Materials, 1(1), 30-42.
3. Williams, J. C., & Boyer, R. R. (2020). Opportunities and issues in the application of titanium alloys for aerospace components. Metals, 10(6), 705.
4. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
5. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
6. Lutjering, G., & Williams, J. C. (2007). Titanium: Engineering Materials and Processes. Berlin: Springer-Verlag.
