Astm B352 Zirconium Alloy Plate
Two Factories & 30 titanium metal production lines
21 years of experience in titanium metal manufacturing
Systerm quality with ISO / SGS / TUV quality control.
Delivery term: DHL, FEDEX, Air freight,Sea freight
Annual production: 800 tons
ASTM B352 Zirconium Alloy Plate
With 21 years of manufacturing experience, XI AN LINHUI IMPORT AND EXPORT Co., LTD. has two state-of-the-art plants with 30 specialized titanium and zirconium metal production lines. With a hafnium concentration regulated below 0.01%, our ASTM B352 Zirconium Alloy Plate satisfies strict nuclear-grade requirements and ensures minimal neutron absorption. With an annual manufacturing capacity of 800 tons and system quality certified by ISO/SGS/TUV, we ship internationally by DHL, FEDEX, air freight, and sea freight. With controlled cold rolling technique, this nuclear-grade plate offers unparalleled dimensional stability and thickness tolerance of ±0.05mm.
To ensure zero-defect performance in crucial reactor applications, every Plate is subjected to 100% ultrasonic and eddy current NDT examination.
Key Features & Benefits
superior resistance to corrosion in situations with strong acids, including as sulfuric, hydrochloric, and nitric acids. Stress corrosion cracking (SCC) is prevented under severe heat cycling conditions by the self-healing ZrO2 oxide layer.
High mechanical strength, with a minimum yield strength of 205 MPa (30 ksi) and a minimum tensile strength of 380 MPa (55 ksi). In nuclear reactor cores, ultra-low hafnium content guarantees safe neutron flux performance.
outstanding formability for intricate vessel construction. preserves structural integrity under operating environments ranging from 400°C to cryogenic temperatures.
Manufacturing Process
Four crucial steps are involved in the creation of our Astm B352 Zirconium Alloy Plate. First, contaminants are removed and chemical homogeneity throughout the ingot is guaranteed using vacuum arc remelting (VAR).
Second, the ingot is changed into an intermediate slab shape by hot forging at regulated temperatures. Third, with outstanding flatness control, precision cold rolling reaches the desired thickness.
Lastly, grain structure is optimized for better corrosion resistance through annealing heat treatment. Complete traceability documentation with heat number tracking is given to each batch.
Quality Inspection
To find internal discontinuities, each plate is subjected to ultrasonic testing (UT). Surface integrity and oxide layer quality are confirmed by eddy current testing (ECT).
Tensile testing verifies that mechanical characteristics adhere to ASTM B352 requirements. Composition limitations are validated by chemical analysis using optical emission spectrometry.
SGS, BV, TÜV, and DNV offer third-party inspection; each shipment is accompanied by EN 10204 3.1/3.2 material test certificates.
Applications Of Astm B352 Zirconium Alloy Plate
Core structural elements and cladding for nuclear reactor vessels. equipment used in chemical processing that handles hot hydrochloric and sulfuric acids.
heat exchangers in the production of pulp and paper. SCC immunity is necessary for pressure vessels in petrochemical refineries.
pharmaceutical reactors that require sterile surfaces and biocompatibility. systems for controlling pollution that are subjected to corrosive flue gas cleaning conditions.
Export Markets
Asia-Pacific (Japan, South Korea, Singapore), Middle East (UAE, Saudi Arabia), North America (USA, Canada), and Europe (Germany, France, UK). formed alliances with EPC contractors and nuclear power operators, including as CEFC, PTT, and PETRONAS.
Why Choose Us
Competitive price is achieved by eliminating middlemen through direct mill supply. Technical advice for material selection is given by internal metallurgists.
For urgent projects, a stock inventory of more than 200 tons allows for delivery in three to seven days. Trial orders starting at 100 kg are supported by the flexible MOQ.
The multilingual service team provides assistance in Arabic, Chinese, Spanish, and English. 21 years of demonstrated dependability in more than 60 nations.
Technical Specifications
| Property | Value |
| Standard | ASTM B352/B352M-2017 |
| Grades | Available R60001, R60802, R60804, R609017 |
| Density | 6.51 g/cm³ |
| Melting Point | 1852°C |
| Thickness Range | 0.5–50 mm |
| Surface Finish | Polished, Annealed, or Customized |

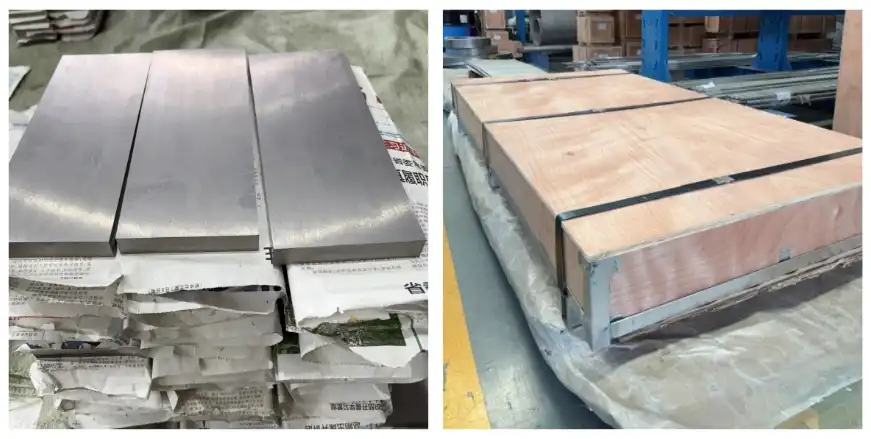

Packaging & Shipping
timber containers for container transportation and plates covered in weatherproof paper. Desiccants and edge protection guard against moisture damage while in transit.
Reinforced plywood boxes are used in air freight packing to speed up delivery. For excessive dimensions larger than that of conventional containers, custom crating is offered.
FAQ
Q: What makes ASTM B352 different from ASTM B551?
A: B551 permits up to 4.5% Hf for industrial use, but B352 needs Hf below 0.01% for nuclear uses.
Q: Is it possible to use this plate with hydrofluoric acid?
A: No, oxide layer dissolving causes zirconium to erode quickly in HF at any concentration.
Q: What safety measures are required when welding?
A: Oxygen embrittlement is avoided by completely covering both sides with argon until the temperature drops below 400°C.
Q: What is the difference between a plate and a sheet?
A: According to ASTM categorization guidelines, plate thickness begins at 4.75 mm.
Q: What is the average lead time?
A: Custom manufacturing takes 25–40 days, whereas stock orders ship in 3–7 days.
Request a Quote
For technical specifications regarding ASTM B352 zirconium alloy plate, please contact our engineering team at linhui@lhtitanium.com, pricing, and delivery schedules. Quotation response within 4 hours guaranteed for your nuclear-grade zirconium requirements.
