Ti-6AL-4V ELI Titanium Sheet
✧ 15+ Years Medical Titanium Experience
✧ Clean Room Packaging for Implant-Grade Sheets
✧ DNV-GL Certified for Marine Applications
✧ Just-In-Time Inventory - No Minimum Order Quantity
✧ Laser Cutting & CNC Machining Services Available

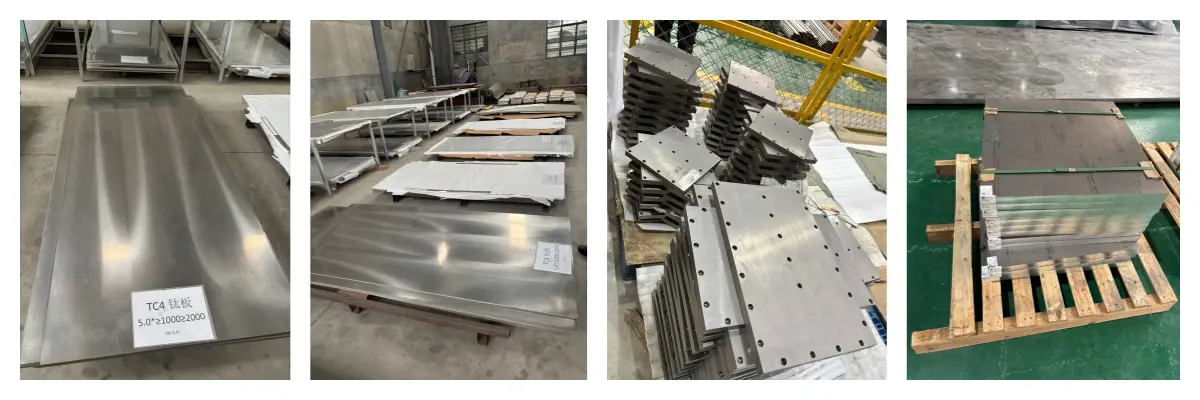

Ti-6AL-4V ELI Titanium Sheet
LINHUI TITANIUM delivers premium Ti-6AL-4V ELI Titanium Sheet backed by 15+ years of medical-grade titanium expertise. Our ELI (Extra Low Interstitial) sheets meet ASTM F136 and AMS 4907 standards, with oxygen content ≤0.13%, nitrogen ≤0.05%, ensuring superior fracture toughness down to -253°C.
Each sheet experiences clean room bundling to keep up implant-grade virtue. With DNV-GL certification for marine applications and just-in-time stock, we back adaptable arrange quantities—no least required. Our in-house laser cutting and CNC machining administrations give ready-to-use components. Coordinate process supply ensures EN 10204 3.1 traceability and competitive estimating for your basic applications.
Key Features & Benefits
Enhanced Break Toughness
The decreased interstitial substance gives you remarkable harm resistance in cryogenic situations and high-stress applications.
Biocompatible Excellence
With a modulus of versatility (113.8 GPa) closer to human bone, this sheet minimizes stretch protecting in orthopedic implants.
Corrosion Resistance
Superior execution in forceful seawater and body liquid situations compared to standard titanium grades.
Non-Magnetic Property
Fully congruous with MRI gear, perfect for surgical rebellious and therapeutic gadgets.
Chemical Composition (ASTM F136 Standard)
| Element | Content (%) | ASTM F136 Requirement |
|---|---|---|
| Aluminum (Al) | 5.5-6.5 | 5.5-6.5 |
| Vanadium (V) | 3.5-4.5 | 3.5-4.5 |
| Iron (Fe) | 0.25 max | 0.25 max |
| Oxygen (O) | 0.13 max | 0.13 max |
| Carbon (C) | 0.08 max | 0.08 max |
| Nitrogen (N) | 0.05 max | 0.05 max |
| Hydrogen (H) | 0.012 max | 0.012 max |
| Titanium (Ti) | Balance | Balance |
Mechanical Properties
| Property | Typical Value | ASTM F136 Minimum |
|---|---|---|
| Tensile Strength | 860-965 MPa | 825 MPa |
| Yield Strength | 795-875 MPa | 760 MPa |
| Elongation | 10-15% | 10% |
| Reduction of Area | 25-30% | 25% |
| Hardness (HV) | 310-350 | - |
Product Variants
| Thickness | Width | Length | Surface Finish | Tolerance |
|---|---|---|---|---|
| 0.5mm-6mm | 300-1200mm | 1000-3000mm | Polished (Mirror) | ±0.02mm |
| 6mm-12mm | 600-1500mm | 2000-4000mm | Satin Finish | ±0.05mm |
| 12mm-50mm | 800-2000mm | 2000-6000mm | Mill Finish | ±0.1mm |
Manufacturing Process
Vacuum Circular segment Remelting (VAR)
Triple-melted ingots dispense with macro-segregation and guarantee uniform chemical conveyance all through your sheets.
Controlled Hot Rolling
Beta transus temperature kept up at 975°C±15°C for ideal grain structure and mechanical properties.
Precision Cold Rolling
Thickness resilience controlled to ±0.05mm, giving you steady shaping execution for complex geometries.
Heat Treatment
Mill-annealed condition (700-800°C) soothes leftover stretch whereas keeping up strength-ductility balance.
Quality Inspection
100% NDT Testing
Every sheet experiences ultrasonic and whirlpool current review to distinguish subsurface abandons some time recently shipment.
Dimensional Verification
Laser filtering guarantees thickness, width, and levelness meet your indicated tolerances.
Chemical Analysis
Spectroscopic testing affirms interstitial component compliance with ASTM F136 requirements.
Mechanical Testing
Tensile, affect, and weariness tests performed per group with full documentation provided.
Surface Quality Control
Visual assessment and surface harshness estimation guarantee defect-free fabric for basic applications.
Applications
Medical Inserts (ASTM F136)
Craniofacial plates, bone obsession gadgets, and pacemaker casings advantage from predominant biocompatibility and decreased push shielding.
Aerospace Cryogenic Components
Liquid hydrogen and oxygen tanks keep up auxiliary astuteness at -253°C where standard grades gotten to be brittle.
Surgical Instruments
Ultrasonic edges and orthopedic devices use tall weariness quality and non-magnetic properties for MRI-safe operation.
Marine Engineering
Offshore auxiliary components and warm exchangers stand up to stretch erosion splitting in seawater situations.
Export Markets
LINHUI TITANIUM has successfully supplied Ti-6AL-4V ELI Titanium Sheet to 60+ countries across:
· North America: USA, Canada, Mexico
· Europe: Germany, France, UK, Netherlands
· Asia-Pacific: Japan, South Korea, Singapore, Australia
· Middle East: UAE, Saudi Arabia, Qatar
· South America: Brazil, Chile, Colombia
Why Choose Us?
Direct Mill Pricing
Factory-direct supply eliminates intermediaries, reducing your material costs by 15-20%.
Engineering Support
Our metallurgists provide material selection guidance and custom heat treatment solutions for your specific needs.
Rapid Response
Quotations within 4 hours, stock delivery in 3-7 days, and expedited production available.
Complete Traceability
EN 10204 3.2 certificates with heat number tracking ensure full compliance documentation.
Value-Added Services
In-house laser cutting, water-jet cutting, and CNC machining deliver ready-to-install components.
Packaging & Shipping
Clean Room Packaging
Medical-grade sheets are individually wrapped in polyethylene film within ISO Class 8 clean rooms.
Protective Layering
Interleaved with acid-free paper to prevent surface scratches during transportation.
Wooden Crate Export Packing
Fumigated plywood cases comply with ISPM 15 standards for international shipping.
Logistics Partners
Collaboration with DHL, FedEx, and major freight forwarders ensures timely global delivery.
FAQ
Q: What's the difference between ELI and standard Ti-6Al-4V?
A: ELI grade has lower oxygen (≤0.13% vs ≤0.20%), providing 30% better fracture toughness at cryogenic temperatures.
Q: Can you provide FDA compliance documentation?
A: Yes, we supply ASTM F136 certificates and FDA Declaration of Conformity for medical-grade sheets.
Q: What is your minimum order quantity?
A: We maintain stock inventory with no minimum order requirement. Trial orders start from 50 kg.
Q: Do you offer custom thickness tolerances?
A: Absolutely. We can achieve ±0.03mm tolerance for precision applications with additional processing.
Q: How do you ensure material traceability?
A: Each sheet is laser-etched with heat number and comes with EN 10204 3.2 certificates traceable to original ingot.
Q: What surface finishes are available?
A: We offer bright annealed (BA), 2B pickled, and polished finishes down to Ra 0.4μm for biomedical use.
Request a Quote
Ready to source high-performance Ti-6AL-4V ELI Titanium Sheet for your critical projects? Contact our technical sales team today for competitive pricing and material certificates.
Email: linhui@lhtitanium.com
