Custom Titanium Tubing

Custom Titanium Tubing

XI AN LINHUI IMPORT AND EXPORT Co., Ltd. operates two factories with 30 titanium metal production lines, delivering 800 tons annually. With 21 years of titanium metal manufacturing experience, we produce Custom Titanium Tubing under ISO/SGS/TÜV quality control systems. Our tubing solutions maintain ±0.05mm thickness tolerance through controlled cold rolling technology. We offer both seamless (ASTM B861) and welded (ASTM B862) configurations with 100% NDT inspection. Delivery options include DHL, FEDEX, air freight, and sea freight. Stock orders ship within 3–7 days.

Our Titanium Tubing serves aerospace, chemical processing, and medical industries worldwide.

Key Features & Benefits

Increased Resistance to Corrosion

In settings with saltwater, acids, and chlorides, the creation of passive oxide films stops deterioration. Palladium-stabilized grade 7 versions are excellent at reducing acids like as HCl and H2SO4.

Loss of Weight

Our tube is 45% lighter than steel with a density of 4.51 g/cm³. In automobile and aeronautical applications, this increases fuel efficiency.

Integrity of Pressure

Weld weak areas are eliminated by seamless construction. Every tube passes hydrostatic and pneumatic testing to confirm pressure containment.

Specifications For Custom Titanium Tubing

Why Choose Us

Direct Mill Supply

Factory pricing eliminates middlemen. Full traceability via heat numbers and MTC documentation.

Flexible MOQ

Trial orders from 100 kg supported. Stock inventory exceeds 200 tons for immediate shipment.

Engineering Support

In-house metallurgists assist with material selection and welding procedures. Multilingual team (English, Chinese, Spanish, Arabic) ensures clear communication.

Fast Turnaround

Quotations within 4 hours. Drawing reviews within 24 hours. Rush orders accommodated.

Materials & Processing

We use CP titanium (Grade 2) and Ti-6Al-4V (Grade 5) for optimal strength-to-weight ratios. Advanced techniques include:

• Cold Pilgering: For ultra-thin walls (0.5 mm) in medical tubing.
• Laser Welding: Zero-porosity joints for aerospace fuel lines.
• Electropolishing: Mirror finishes (Ra ≤0.4 μm) for semiconductor applications.



Manufacturing Process

Step 1: Material Selection

We source titanium ingots meeting ASTM B348 chemical requirements. Heat numbers ensure full traceability.

Step 2: Extrusion or Rolling

Seamless tubes undergo hot extrusion. Welded tubes use precision TIG welding without filler metal.

Step 3: Cold Working

Multiple cold rolling passes achieve ±0.05mm wall tolerance and uniform mechanical properties.

Step 4: Heat Treatment

Annealing at 650–750°C relieves residual stress and optimizes ductility.

Step 5: Surface Treatment

Acid pickling removes scale. Bright annealing provides clean, oxide-free surfaces.

Quality Inspection

Completely NDT Testing

Surface fractures are found via eddy current testing. Internal flaws are found through ultrasonic testing. Reliability is guaranteed by a zero-defect policy.

Mechanical Examination

Tests for flattening and flaring confirm formability. Tensile testing verifies that Grade 2 yield strength is greater than 275 MPa.

Alloy composition is verified by Chemical Analysis Spectroscopy. Embrittlement is avoided when the hydrogen level is less than 0.015%.

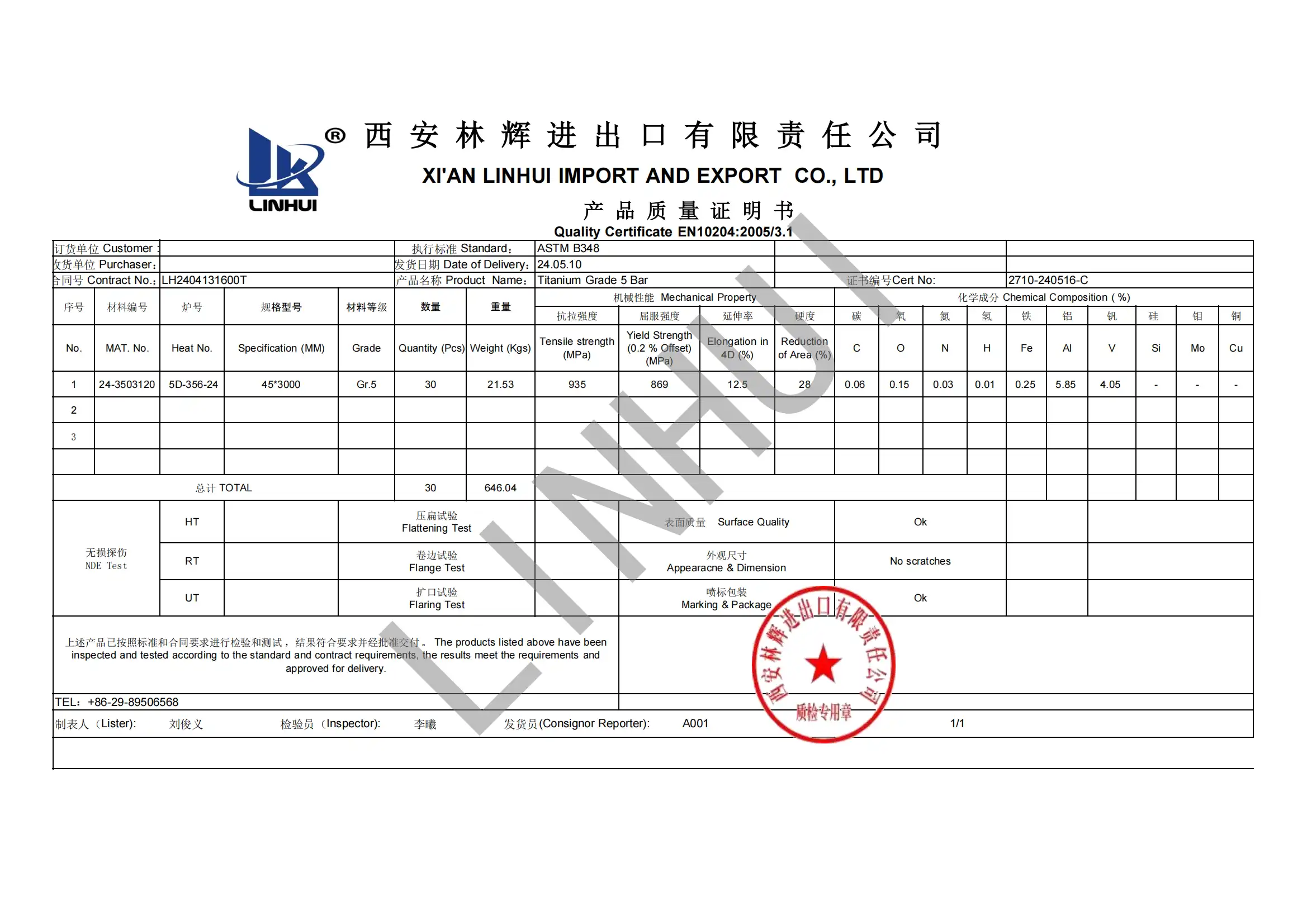

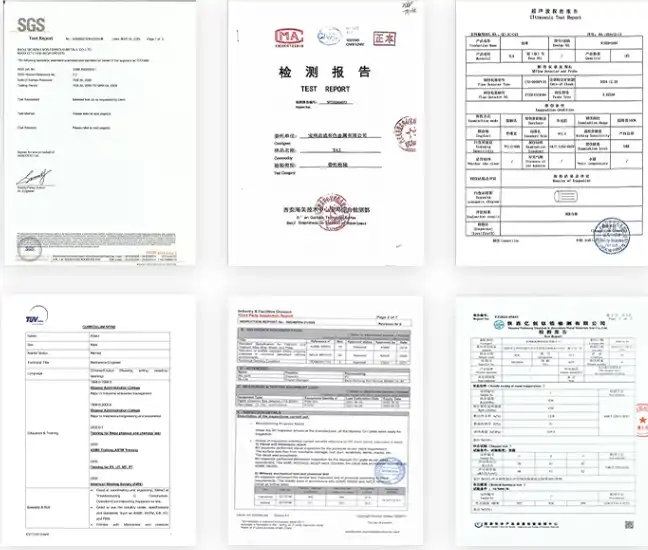

Heat numbers, test data, and dimensional reports are included in the documentation for EN 10204 3.1/3.2 certificates. SGS, BV, and TÜV are available for third-party inspection.

Applications

Processing Chemicals

Heat exchanger tubes in chlorine manufacturing and pickling baths. resists hydrochloric acid and sulfuric acid at high temperatures.

Defense & Aerospace

structural frames and hydraulic lines. Grade 9 tubing preserves pressure integrity while lowering aircraft weight.

Medical Equipment

Surgical implant grade 23 ELI Custom Titanium Tubing. corrosion-free and biocompatible with bodily fluids.

Engineering for the Sea

desalination facilities and seawater cooling systems. Grade 2 is permanently resistant to corrosion from saltwater.

Export Markets

Asia (Japan, South Korea, Singapore), South America (Brazil, Ecuador), Europe (Germany, France, UK), Middle East (UAE, Saudi Arabia), and North America (USA, Canada).

exported to more than 60 nations while adhering to PED 2014/68/EU and NORSOK M-650.

Certifications

• ISO 9001:2015 | AS9100D | ISO 13485:2016
• SGS Material Test Reports | RoHS Compliance| Certificate of Origin| Custom Titanium Tubing MTC



Packaging & Shipping

Packaging

Tubes bundled with wooden crates or steel frames. Plastic caps protect thread ends. Moisture-proof wrapping prevents oxidation.

Shipping

DHL and FEDEX for samples. Air freight for urgent orders. Sea freight for bulk shipments.

Export documentation includes commercial invoice, packing list, certificate of origin, and material certificates.

FAQ

Q: Can you weld titanium tubing to stainless steel?

A: No. Direct welding forms brittle compounds. Use mechanical flanges or explosion-bonded transition joints.

Q: What causes blue discoloration on welds?

A: Insufficient shielding gas during welding. Blue/purple indicates oxidation and requires rework. Silver/bright welds meet standards.

Q: Do you offer low-iron Grade 2?

A: Yes. Fe <0.05% available for nitric acid and high-corrosion environments.

Q: What's the difference between seamless and welded tubing?

A: Seamless (B861) is extruded, ideal for high pressure. Welded (B862) offers better wall uniformity and cost efficiency.

Q: How do you prevent hydrogen embrittlement?

A: We control hydrogen <0.015% during production. Grade 7 recommended for hydrogen-rich environments.

Request a Quote

Need Custom Titanium Tubing tailored to your specifications? Contact our engineering team at linhui@lhtitanium.com with your requirements. Receive quotations within 4 hours and technical support for your project.
