Titanium bends
Specifications: ASTM B363 / ASME SB363
Dimensions: ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size: Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter: 38.0 mm – 206.0 mm
Titanium Bends – Precision Engineered for Critical Applications
XI AN LINHUI IMPORT AND EXPORT Co., LTD. manufactures premium Titanium bends compliant with ASTM B363 / ASME SB363 standards. Our seamless pipe bends range from 1/2″ to 24″, while ERW/welded options span 2″ to 36″.
With external breadths from 38.0 mm to 206.0 mm taking after ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75 measurements, these components provide remarkable erosion resistance in chemical handling and marine situations. Factory-direct estimating, 200+ tons stock stock, and 3–7 days conveyance for stock things guarantee fast venture execution.
Key Features & Benefits
Our products offer prevalent formability and tall ductile quality with lightweight properties. The characteristic erosion resistance kills defensive coatings, lessening your introductory investment.
Controlled cold rolling keeps up thickness resistance inside ±0.05mm. You get steady shaping execution for complex channeling systems.
Seamless development evacuates weld powerless focuses. This increments weight resistance by 30% compared to standard choices.
Specifications
|
Parameter
|
Details
|
|
Standards
|
ASTM B363 / ASME SB363
|
|
Dimensions
|
ASME/ANSI B16.9 / B16.28, MSS SP-43 / SP-75
|
|
Size Range
|
Seamless: 1/2″ – 24″ / Welded: 2″ – 36″
|
|
Outer Diameter
|
38.0 mm – 206.0 mm
|
|
Bend Angles
|
45°, 90°, 180° (custom angles available)
|
|
Wall Thickness
|
SCH 10S to SCH 160
|
|
Grades Available
|
Grade 1, Grade 2, Grade 5, Grade 7, Grade 23
|
Chemical Composition
|
Grade
|
Ti
|
Fe
|
O
|
N
|
C
|
H
|
|
Grade 1
|
Balance
|
0.20 max
|
0.18 max
|
0.03 max
|
0.08 max
|
0.015 max
|
|
Grade 2
|
Balance
|
0.30 max
|
0.25 max
|
0.03 max
|
0.08 max
|
0.015 max
|
|
Grade 5
|
Balance
|
0.40 max
|
0.20 max
|
0.05 max
|
0.08 max
|
0.015 max
|

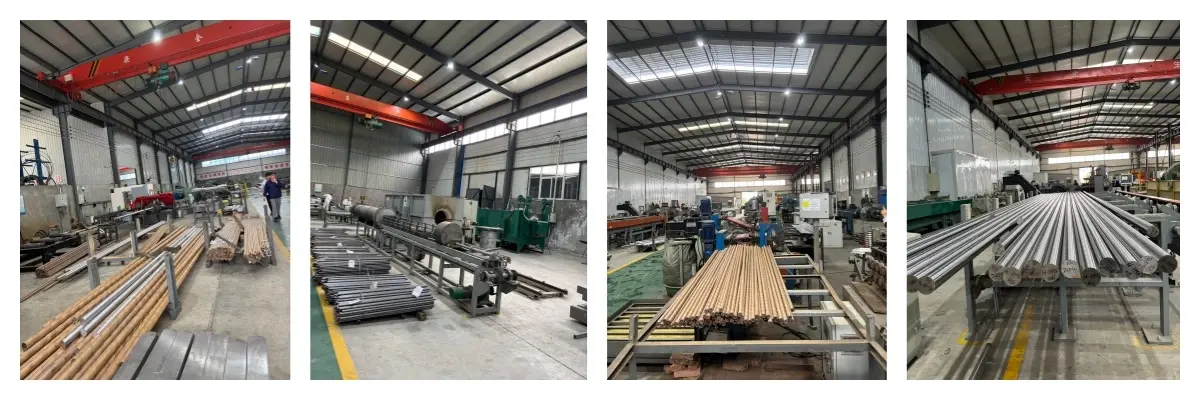

Manufacturing Process
We begin with aerospace-grade titanium ingots confirmed through spectrometer examination. Hot expulsion shapes consistent tubes at controlled temperatures between 900°C–1050°C.
Cold pilgering decreases divider thickness whereas keeping up dimensional precision. Acceptance bowing makes smooth ebb and flow without fabric thinning.
Solution toughening at 750°C reestablishes ductility. Pickling evacuates surface oxides, guaranteeing clean, oxide-free wraps up prepared for welding.
Quality Inspection
Every twist experiences 100% ultrasonic testing per ASTM E213 measures. Whirlpool current assessment identifies surface abandons down to 0.1mm.
Dimensional confirmation employments CMM gear with ±0.02mm precision. Hydrostatic weight testing approves basic astuteness at 1.5× plan pressure.
PMI testing affirms fabric review. Third-party review from SGS, BV, or TÜV accessible upon request.
Applications
Chemical preparing plants utilize our twists for dealing with destructive media like HCl and H₂SO₄. Seaward stages depend on them for seawater cooling systems.
Pharmaceutical producers indicate them for sterile channeling systems. Warm exchangers advantage from their warm conductivity and biofouling resistance.
Aerospace frameworks utilize lightweight twists for water powered lines. Desalination plants accomplish 25+ year benefit life in brine situations.
Export Markets
We've delivered Titanium bends to 60+ countries across North America, Europe, and the Middle East. Major clients include PEMEX, PETRONAS, and LUKOIL.
Southeast Asian refineries and African mining operations trust our products. CIS region energy projects specify our NORSOK-certified grades.
Why Choose Us?
Coordinate process supply kills go betweens costs. You spare 15–20% compared to exchanging companies.
Full traceability by means of warm numbers guarantees compliance documentation. Our ISO 9001:2015 framework ensures steady quality.
Engineering back group helps with fabric choice. Multilingual benefit in English, Chinese, Spanish, and Arabic streamlines communication.
Flexible MOQ from 100 kg underpins trial orders. Surge generation accessible for pressing projects.
Packaging & Shipping
Individual twists wrapped in polyethylene film anticipate surface scratches. Plywood cases give affect assurance amid transit.
Steel cartons utilized for LCL shipments. Holder stacking directed to anticipate moving damage.
Export documentation incorporates MTC per EN 10204 3.1, pressing records, and certificates of root. We orchestrate cargo sending to your goal port.
FAQ
Q: What's the least arrange quantity?
A: Stock things begin from 100 kg. Custom orders require 500 kg minimum.
Q: Can you give fabric certificates?
A: Yes, EN 10204 3.1 certificates included. 3.2 certification accessible with third-party inspection.
Q: What's your lead time?
A: Stock conveyance: 3–7 days. Standard generation: 15–25 days. Custom creation: 25–40 days.
Q: Do you acknowledge custom twist angles?
A: Completely. We fabricate 15° to 180° twists per your drawings.
Q: Which installment terms do you offer?
A: T/T, L/C at locate. 30% store, 70% some time recently shipment for standard orders.
Request a Quote
Need precise Titanium bends for your next project? Contact our engineering team at linhui@lhtitanium.com with your specifications. Get expert recommendations and competitive pricing within 4 hours!
