Titanium elbow
Standard: ASTM Standard B338
Material: Gr1, Gr2, Gr7, Gr12
Size: DN15--DN1200
Thickness: 1mm--15mm
Packed: Wooden Case
Technics: Forged
Titanium Elbow – Industrial Grade Pipe Fitting by LINHUI TITANIUM
LINHUI TITANIUM manufactures premium Titanium elbow fittings engineered to ASTM B363 and ASME B16.9 standards, delivering exceptional corrosion resistance for critical piping systems. Our forged elbows are available in Gr1, Gr2, Gr7, and Gr12 materials, covering sizes from DN15 to DN1200 with wall thickness ranging 1mm–15mm. Each product undergoes 100% ultrasonic and radiographic testing to ensure zero-defect performance.
With 200+ tons of stock stock, we bolster fast conveyance inside 3–7 days for standard orders. All items dispatch with EN 10204 3.1 certification and full warm number traceability, pressed safely in wooden cases for secure transit.
Key Features & Benefits
Superior Erosion Resistance
Grade 2 and Review 7 choices withstand forceful chloride, sulfuric corrosive, and seawater situations where steel fittings fail.
Zero-Defect Quality
100% PMI testing and NDT review kill inside porosity and surface cracks.
Precision Dimensional Tolerance
Center-to-face exactness inside ±1mm guarantees consistent fit-up amid establishment.
Product Information
| Product name | Titanium elbow |
| Standard | ASTM Standard B338 |
| Material | Gr1, Gr2, Gr7, Gr12 |
| Size | DN15--DN1200 |
| Thickness | 1mm--15mm |
| Packed | Wooden Case |
| Technics | Forged |
| Application | Industrial |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
Product Specification
| Nominal Pipe Size | Outside Diameter | Center to Face | |||
| in | mm | in | mm | in | in |
| 1/2″ | 15 | 0.84 | 21.34 | 1.50 | 38.10 |
| 3/4″ | 20 | 1.05 | 26.67 | 1.13 | 28.58 |
| 1″ | 25 | 1.32 | 33.40 | 1.50 | 38.10 |
| 1-1/4″ | 32 | 1.66 | 42.16 | 1.88 | 47.63 |
| 1-1/2″ | 40 | 1.90 | 48.26 | 2.25 | 57.15 |
| 2″ | 50 | 2.38 | 60.33 | 3.00 | 76.20 |
| 2-1/2″ | 65 | 2.88 | 73.03 | 3.75 | 95.25 |
| 3″ | 80 | 3.50 | 88.90 | 4.50 | 114.30 |
| 3-1/2″ | 90 | 4.00 | 101.60 | 5.25 | 133.35 |
| 4″ | 100 | 4.50 | 114.30 | 6.00 | 152.40 |
| 5″ | 125 | 5.56 | 141.30 | 7.50 | 190.50 |
| 6″ | 150 | 6.63 | 168.28 | 9.00 | 228.60 |
| 8″ | 200 | 8.63 | 219.08 | 12.00 | 304.80 |
| 10″ | 250 | 10.75 | 273.05 | 15.00 | 381.00 |
| 12″ | 300 | 12.75 | 323.85 | 18.00 | 457.20 |
| 14″ | 350 | 14.00 | 355.60 | 21.00 | 533.40 |
| 16″ | 400 | 16.00 | 406.40 | 24.00 | 609.60 |
| 18″ | 450 | 18.00 | 457.20 | 27.00 | 685.80 |
| 20″ | 500 | 20.00 | 508.00 | 30.00 | 762.00 |
| 24″ | 600 | 24.00 | 609.60 | 36.00 | 914.40 |
Manufacturing Process
Step 1: Material Selection
Raw titanium billets undergo XRF spectrometry to verify chemical limits per ASTM B348.
Step 2: Hot Forging
Billets are heated to 900°C and press-forged into Titanium elbow shapes using precision molds.
Step 3: Warm Treatment
Stress-relief tempering at 650–750°C reestablishes ductility and evacuates leftover shaping stress.
Step 4: Machining & Finishing
CNC machining accomplishes last measurements. Surface choices incorporate cured, cleaned, or sandblasted.

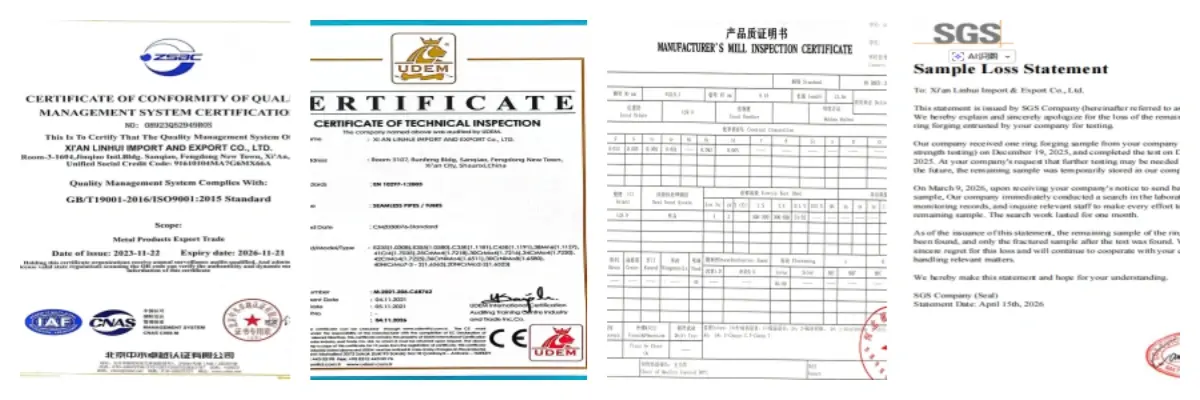

Quality Inspection
· PMI Testing: Handheld XRF affirms grade-specific composition
· Ultrasonic Testing (UT): Detects inside laminations in consistent elbows
· Radiographic Testing (RT): Mandatory for welded fittings to recognize weld defects
· Dye Penetrant (PT): Reveals surface breaks on high-stress extrados zones
· Dimensional Verification: Caliper and CMM review per ASME B16.9 resiliences
Applications
Chemical Handling Plants
Handles concentrated acids and soluble bases without setting or push erosion cracking.
Offshore Oil & Gas
Subsea pipelines and topside stages advantage from titanium's insusceptibility to chloride attack.
Desalination Systems
Seawater admissions and brine release lines keep up keenness for decades.
Aerospace Hydraulics
Lightweight fittings diminish flying machine weight whereas persevering extraordinary weight cycles.
Export Markets
North America | Europe | Center East | Southeast Asia | South America
Trusted by temporary workers in USA, Germany, UAE, Singapore, and Brazil for marine and petrochemical projects.
Why Choose Us?
Direct Process Supply – Production line estimating with no middlemen
Fast Turnaround – 4-hour citations, 3–7 day stock delivery
Full Traceability – EN 10204 3.1 certificates with warm numbers
Global Experience – Sent out to 60+ nations since 2000
Engineering Support – In-house metallurgists help with fabric selection
Packaging & Shipping

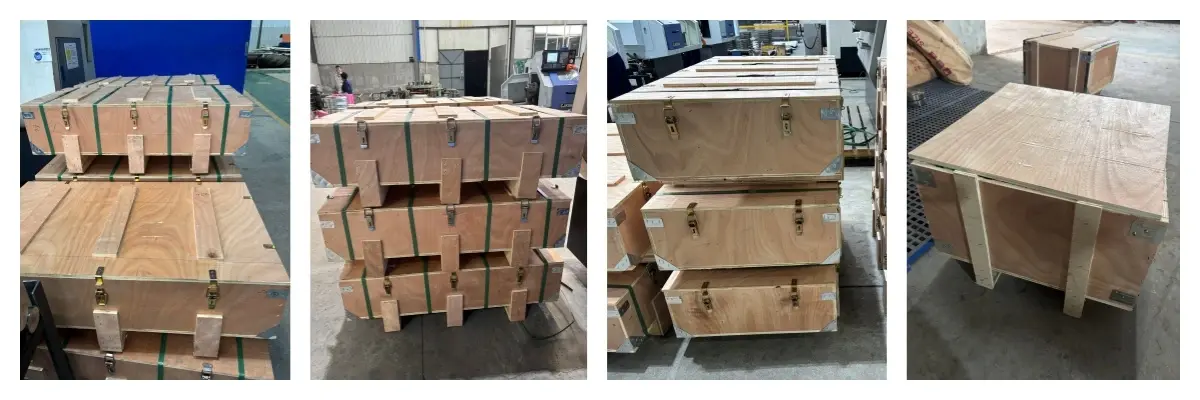

Each fitting is wrapped in bubble film and set in plywood cases lined with moisture-proof paper. Metal strapping secures the carton for holder shipping. Delicate things get froth corner defenders to anticipate travel damage.
FAQ
Q: What's the distinction between consistent and welded the product?
A: Seamless elbows suit high-pressure applications. Welded sorts are cost-effective for low-pressure lines with 100% X-ray inspection.
Q: Can I interface the items to stainless steel pipes?
A: Direct contact in electrolytes causes galvanic erosion. Utilize rib segregation packs to avoid steel degradation.
Q: Do fittings require post-weld warm treatment?
A: Yes. ASTM B363 suggests stretch help at 650°C to anticipate deferred breaking and reestablish ductility.
Q: Why select Review 7 over Review 2?
A: Grade 7's palladium expansion exceeds expectations in diminishing acids like HCl and H₂SO₄ where Review 2 may corrode.
Q: What's your least arrange quantity?
A: We bolster trial orders beginning from 100 kg for stock things.
Request a Quote
Need custom dimensions or urgent delivery with Titanium elbow? Contact our team at linhui@lhtitanium.com with your specifications.
