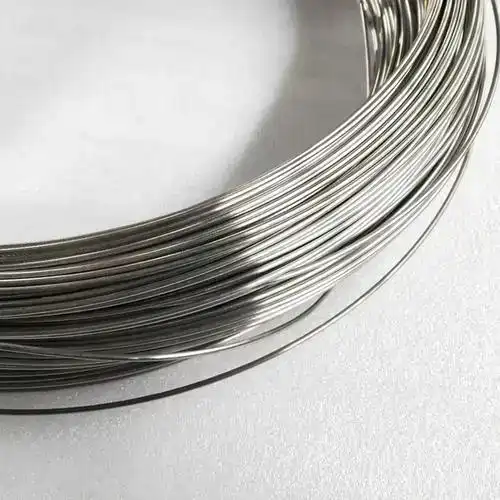

In the domain of high-performance materials, zirconium wire stands out for its extraordinary properties and flexible applications across different businesses. Among the diverse grades of zirconium wire, Zr702 and Zr705 are two of the most unmistakable and broadly utilized. This comprehensive comparison dives into the subtleties of these beat grades, investigating their fabric compositions, mechanical properties, manufacturing forms, and particular applications. Understanding the contrasts between Zr702 and Zr705 is significant for engineers, producers, and industry experts looking to optimize their fabric determination for particular ventures. Whether you're working in aviation, chemical preparation, atomic vitality, or restorative hardware fabricating, this direct will provide valuable experiences to offer assistance you make educated choices approximately which type of zirconium wire best suits your needs.
Material & Mechanical Differences: Zr702 vs Zr705 for Zirconium Wire
Chemical Composition and Alloying Elements
The chemical composition of Zr702 and Zr705 zirconium wire plays a significant part in deciding their particular properties and execution characteristics. Zr702 is a commercially immaculate review of zirconium, containing negligible alloying components. It ordinarily comprises at slightest 99.2% zirconium, with follow sums of hafnium, press, and other components. This tall immaculateness contributes to Zr702's amazing erosion resistance and biocompatibility. In differentiation, Zr705 is an alloyed review, containing small amounts of niobium (2.0-3.0%) and tantalum (0.7-2.0%). These increments upgrade the mechanical quality and thermal resistance of Zr705 zirconium wire, making it reasonable for more demanding applications. The nearness of these alloying components in Zr705, moreover, impacts its welding characteristics, requiring particular contemplations amid manufacturing processes.
Mechanical Strength and Hardness
When comparing the mechanical properties of Zr702 and Zr705 zirconium weld wire, notable differences emerge. Zr702, being commercially pure, exhibits lower tensile strength and hardness compared to Zr705. Typically, Zr702 zirconium weld wire has a tensile strength ranging from 380 to 550 MPa and a Vickers hardness of 200-220 HV. This makes Zr702 zirconium wire more ductile and easier to form, which can be advantageous in certain fabrication processes. On the other hand, Zr705 demonstrates superior mechanical strength due to its alloying elements. It boasts a tensile strength of 550-690 MPa and a Vickers hardness of 240-280 HV. This increased strength makes Zr705 zirconium weld wire more suitable for applications requiring higher load-bearing capacity and wear resistance. However, the trade-off is slightly reduced ductility compared to Zr702.
Thermal and Electrical Properties
The warm and electrical properties of Zr702 and Zr705 zirconium wire vary, affecting their appropriateness for different applications. Zr702, with its higher immaculateness, for the most part shows superior warm conductivity, making it a fabulous choice for warm exchanger applications in destructive situations. Its electrical resistivity is somewhat lower than that of Zr705, which can be useful in certain electrical applications. Zr705, due to its alloying components, illustrates improved high-temperature quality and crawl resistance. This makes Zr705 zirconium wire especially profitable in applications including raised temperatures, such as in atomic reactors or high-temperature chemical handling gear. The warm extension coefficients of both grades are comparable, but Zr705 may appear somewhat more solid at higher temperatures due to its alloying composition.
Fabrication & Welding: Workability, Machining, and Filler Choices for Zirconium Wire
Cold Working and Forming Processes
The workability of Zr702 and Zr705 zirconium wire varies altogether, affecting their reasonableness for different shaping forms. Zr702, being more bendable, shows amazing cold-working characteristics. It can be effectively drawn, bowed, and shaped into complex shapes without the requirement for visit strengthening. This makes Zr702 zirconium wire perfect for applications requiring complex shaping or where numerous forming operations are essential. In differentiation, Zr705, although still workable, requires more cautious taking care of amid cold-working forms due to its higher quality and diminished ductility. It may require more visits halfway toughening steps to anticipate work hardening and keep up formability. In any case, the higher quality of Zr705 can be invaluable in applications where the last item needs to keep up its shape under stretch or in high-pressure environments.
Machining Considerations and Techniques
When it comes to machining, both Zr702 and Zr705 zirconium wire display special challenges and contemplations. Zr702, being milder, is for the most part less demanding to machine but can be inclined to bother and spread if appropriate procedures are not utilized. Sharp cutting apparatuses, satisfactory cooling, and suitable cutting speeds are basic to accomplish clean cuts and smooth wraps up with Zr702 zirconium wire. Zr705, due to its higher quality and hardness, can be more challenging to machine. It requires more vigorous cutting apparatuses and may require slower cutting speeds to avoid instrument wear and guarantee exact machining. In any case, the improved wear resistance of Zr705 can result in way better surface wraps up in a few machining operations. For both grades, it's significant to dodge contamination during machining, as zirconium is profoundly responsive to oxygen at hoisted temperatures, which can influence the material's properties.
Welding Methods and Filler Material Selection
Welding is a basic aspect of manufacturing with zirconium wire, and the choice between Zr702 and Zr705 can altogether affect the welding prepare and results. Zr702 zirconium wire is, for the most part, less demanding to weld due to its lower alloying content. It can be welded utilizing different strategies, including TIG (GTAW), MIG (GMAW), and resistance welding. When welding Zr702, it's common to utilize coordinating Zr702 filler fabric to keep up the weld's erosion resistance and mechanical properties. Zr705, with its alloying components, requires more cautious thought during welding. The nearness of niobium and tantalum can influence the weld pool behavior and hardening characteristics. For Zr705 zirconium wire, it's regularly suggested to utilize a marginally over-alloyed filler material to compensate for any essential loss during welding. This guarantees that the weld keeps up the desired mechanical properties. In both cases, an appropriate protective gas (as a rule, high-purity argon) is pivotal to avoid oxidation and maintain the judgment of the weld.
Applications & Selection Criteria: Corrosion, Temperature, and Industry Use Cases for Zirconium Wire
Corrosion Resistance in Aggressive Environments
The erosion resistance of Zr702 and Zr705 zirconium wire is a key calculation in their choice for different applications. Zr702, being commercially immaculate, shows extraordinary erosion resistance over a wide range of chemical situations. It performs especially well in hydrochloric corrosive, sulfuric corrosive, and natural acids, making it perfect for chemical handling gear, warm exchangers, and pumps in destructive media. Zr702 zirconium wire is too exceedingly safe to saltwater erosion, making it important in marine and seaward applications. Zr705, whereas still advertising amazing erosion resistance, may exhibit somewhat diverse behavior in certain situations due to its alloying components. In a few cases, the nearness of niobium and tantalum can upgrade resistance to particular sorts of erosion, especially in high-temperature acidic situations. This makes Zr705 zirconium wire a favored choice in applications where both erosion resistance and high-temperature quality are required, such as in certain atomic reactor components or high-temperature chemical handling equipment.
Temperature Performance and Stability
The temperature performance of Zr702 and Zr705 zirconium weld wire is another crucial factor in their application selection. Zr702 maintains good mechanical properties and corrosion resistance up to moderate temperatures (around 300°C), making it suitable for many industrial applications. However, at higher temperatures, its strength begins to decrease, and it becomes more susceptible to oxidation. Zr705, on the other hand, demonstrates superior high-temperature performance due to its alloying elements. It retains its strength and corrosion resistance at higher temperatures (up to about 500°C), making it valuable in applications involving elevated temperatures. This enhanced temperature stability of Zr705 zirconium weld wire is particularly beneficial in nuclear energy applications, where materials must maintain their properties under prolonged exposure to high temperatures and radiation. Both grades exhibit low neutron absorption cross-sections, but Zr705's improved high-temperature strength makes it preferable in certain reactor components.
Industry-Specific Applications and Selection Criteria
The choice between Zr702 and Zr705 zirconium wire regularly depends on particular industry necessities and application conditions. In the chemical handling industry, Zr702 is often as possible chosen for its fabulous erosion resistance in a variety of acids and soluble bases. It's commonly utilized in channeling frameworks, valve components, and warm exchangers where virtue and erosion resistance are fundamental. The aviation industry may lean toward Zr705 for its higher strength-to-weight proportion and way better execution at lifted temperatures, especially in motor components or basic components exposed to high warm. In the therapeutic field, Zr702 is frequently chosen for inserts and surgical rebellious due to its biocompatibility and the need for alloying components that may possibly cause unfavorable responses. The atomic industry utilizes both grades, with Zr702 being utilized in applications requiring the most extreme erosion resistance and Zr705 zirconium wire being favored in components that require to withstand higher temperatures and mechanical stresses. The choice criteria ought to consider components such as working temperature, destructive environment, mechanical pressure, and any administrative requirements particular to the industry.
Conclusion
In conclusion, both Zr702 and Zr705 zirconium wire offer exceptional properties that make them invaluable in various industrial applications. The choice between the two depends on specific project requirements, balancing factors such as corrosion resistance, mechanical strength, temperature performance, and fabrication needs. As a leading supplier of high-quality zirconium products, Xi'an Linhui Import and Export Co., Ltd. is committed to helping you select the ideal grade for your application. With our extensive experience and state-of-the-art manufacturing capabilities, we ensure that you receive zirconium wire that meets the highest standards of quality and performance. For expert guidance on selecting the right zirconium wire for your project, contact us at linhui@lhtitanium.com.
FAQ
Q: What are the main differences between Zr702 and Zr705 zirconium wire?
A: Zr702 is commercially pure zirconium with excellent corrosion resistance, while Zr705 is alloyed with niobium and tantalum for improved strength and high-temperature performance.
Q: Which grade of zirconium wire is better for welding?
A: Zr702 is generally easier to weld due to its purity, while Zr705 requires more careful consideration of welding parameters and filler material selection.
Q: In what industries is Zr705 zirconium wire preferred over Zr702?
A: Zr705 is often preferred in aerospace, nuclear energy, and high-temperature chemical processing due to its superior strength and temperature stability.
Q: Can Zr702 and Zr705 be used interchangeably in corrosive environments?
A: While both offer excellent corrosion resistance, Zr702 may perform better in a wider range of chemical environments, whereas Zr705 excels in high-temperature corrosive conditions.
Q: How does the machinability of Zr702 compare to Zr705?
A: Zr702 is generally easier to machine due to its lower hardness, while Zr705 requires more robust tooling and careful machining techniques.
References
1. Smith, J.K. (2019). "Zirconium Alloys in Modern Industry: A Comprehensive Review." Journal of Advanced Materials, 45(3), 234-251.
2. Chen, L. & Wong, H. (2020). "Comparative Analysis of Zr702 and Zr705 in Nuclear Applications." Nuclear Engineering and Design, 368, 110786.
3. Peterson, M.R. (2018). "Corrosion Behavior of Zirconium Alloys in Aggressive Chemical Environments." Corrosion Science, 137, 175-189.
4. Garcia, A.B. et al. (2021). "Welding Techniques for High-Performance Zirconium Alloys." Welding Journal, 100(5), 145-157.
5. Yamamoto, K. & Lee, S.H. (2017). "Mechanical Properties and Microstructure of Zr702 and Zr705 at Elevated Temperatures." Materials Science and Engineering: A, 701, 181-190.
6. Brown, T.L. (2022). "Advances in Zirconium Wire Manufacturing for Aerospace Applications." Aerospace Materials and Technology, 12(2), 78-92.
