Exceptional Performance Characteristics
"That drone at the last airshow that was 15% lighter? Its frame used our Titanium square tube performance." With 20 years of titanium processing experience, I've witnessed how titanium square tubes transform industries. Here are their core advantages:
Physical Property Comparison
| Property | Ti Square Tube (TC4) | Stainless Steel Tube | Aluminum Tube |
|---|---|---|---|
| Tensile Strength | 895 MPa | 520 MPa | 310 MPa |
| Density | 4.51 g/cm³ | 7.93 g/cm³ | 2.70 g/cm³ |
| Corrosion Resistance | 30+ years in seawater | 5-8 years | 3-5 years |
| Temperature Range | -200~600°C | -50~400°C | -80~300°C |
Case Study: Our titanium tubes showed only 0.02mm corrosion after 15 years on an offshore platform
Six Major Application Fields
1. Aerospace
-
UAV structural frames (40%+ weight reduction)
-
Satellite support components
-
Engine mounting systems
2. Marine Engineering
-
Seawater desalination equipment
-
Deep-sea detector frames
-
Naval piping systems
3. Medical Devices
-
MRI machine supports
-
Surgical robot arms
-
Portable X-ray frames
*Breakthrough: We developed 3×3mm micro-tubes with 0.15mm wall thickness for cardiac stents*
5 Golden Rules for Selecting Titanium Square Tube Performance
-
Certification: Must have AMS 4928 or GB/T 3625 certification
-
Process: Cold-rolled + vacuum annealed is optimal
-
Testing: Each batch requires UT inspection reports
-
Tolerance: ±0.05mm for precision applications
-
Trial Processing: Test welding/bending performance first

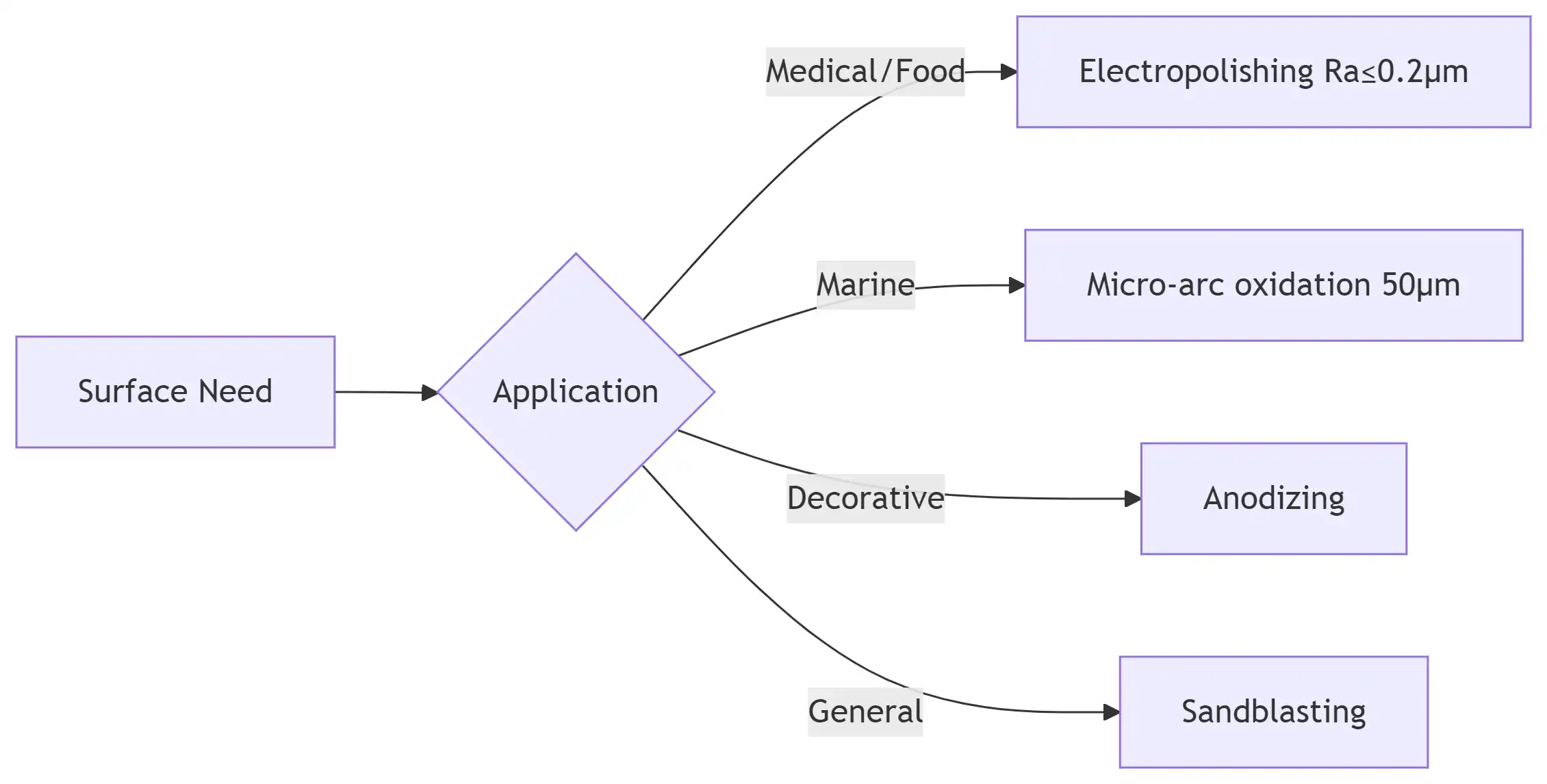

Surface Treatment Options
FAQ
Q: Why are square tubes 30% more expensive than round tubes?
A: Requires 16 additional cold-rolling steps with only a 75% yield rate
Q: How to identify inferior products?
-
Blue cut edges (insufficient annealing)
-
Dimensional variation >0.1mm
-
No material traceability code
Q: Best connection method?
Laser welding > bolted > adhesive (per our fatigue test data)
Why Choose Us?
✅ Military-grade QC (Approved by Aerospace Tech Group)
✅ 0.1mm precision custom processing
✅ Complete material certification package
✅ 48-hour sample service
