Precisely deploying and retracting in aircraft landing gear, gently supporting life in medical devices, and effortlessly handling complex road conditions in high-end vehicles... titanium alloy springs, with their unique performance advantages, are becoming indispensable key components in numerous high-end applications. This article will delve into the performance characteristics, processing challenges, and solutions for titanium alloy springs and showcase their diverse application scenarios.
I. Superior Performance: Multi-Dimensional Advantages
(I) High Specific Strength and Elasticity
Titanium alloys (such as TC4 and TA18) exhibit powerful comprehensive properties. Their strength is comparable to that of steel, with a tensile strength of 800-1100 MPa, yet their density is only 60% of that of steel. This combination of low density and high strength allows titanium alloy springs to achieve significant weight reductions while maintaining the same load capacity. Furthermore, their lower elastic modulus (110-120 GPa) provides greater elastic deformation capacity, a higher elastic work-to-weight ratio, and superior energy storage capacity to steel. In applications requiring high energy absorption, such as shock absorber springs, springs can more effectively absorb and release energy, providing stable elastic support for equipment.
(II) Superior Corrosion Resistance
Titanium alloys are immune to corrosive media such as seawater, chloride ions, and body fluids. In marine environments, ordinary metal springs are susceptible to corrosion, leading to rust and damage, which can affect the normal operation of equipment. Springs, however, provide long-term, stable operation without the need for additional corrosion protection. In the medical field, as implants such as heart stent springs, Springs do not chemically react with body fluids, preventing the harmful effects of corrosion-induced substances on the human body and ensuring patient health and safety.
(III) Long Fatigue Life
The fatigue limit of titanium alloys can reach 50%-60% of their tensile strength, compared to approximately 40% for steel. This means that under high-frequency dynamic loads, such as in aircraft engine valve springs, titanium alloy springs can withstand more cycles without fatigue fracture. Their long service life reduces equipment maintenance costs and replacement frequency, improving equipment reliability and safety.
(IV) Non-magnetic and Excellent Biocompatibility
Titanium alloys are non-magnetic, enabling them to function properly in MRI (magnetic resonance imaging) environments without interfering with imaging results. Furthermore, titanium alloys certified according to ISO 5832-3, such as TA1 pure titanium or TC4 ELI, exhibit excellent biocompatibility and are non-rejectable by the human body, making them widely used in medical implants.
II. Process Excellence: Overcoming Difficulties to Create Quality Products
(I) Material Selection: Precisely Matching Requirements
Different application scenarios require varying performance from titanium alloy springs, necessitating the precise selection of the appropriate alloy material. TC4 (Ti-6Al-4V) offers excellent overall performance at a reasonable cost, making it suitable for most spring applications. TA18 (Ti-5Al-4V-0.5Sn-0.5Mo) offers improved high-temperature resistance and can be used in environments ≤450°C, such as engine valve springs. Pure titanium (TA1/TA2) has excellent ductility but low strength, making it suitable for low-load springs, such as those requiring good elasticity but not high strength.
(II) Forming Processes: Both Hot and Cold Forming Processes Present Challenges
Cold forming: Suitable for wires ≤6 mm in diameter, such as medical microsprings. However, titanium alloys harden rapidly during cold work, requiring intermediate annealing (700-800°C) during the cold forming process to restore the material's plasticity. Furthermore, high springback is a major challenge in cold forming, exceeding that of steel by 20%-30%. To address this issue, die compensation design or multiple forming corrections are necessary to ensure the spring's dimensional accuracy meets requirements.
Hot forming: The temperature range is 750-900°C (TC4) or 700-850°C (TA18). An inert atmosphere is required during the hot forming process to prevent oxidation. The advantages of hot forming include the ability to process large springs, such as aviation coil springs, and the ability to reduce residual stress, thereby improving the spring's performance stability.
(3) Heat Treatment: Key to Optimizing Performance
Stress Relief Annealing: Annealing at 500-650°C for 1-2 hours eliminates cold working stresses, improves the spring's dimensional stability, and reduces deformation during use.
Solution Treatment + Aging (TC4 and other α-β alloys only): Solution treatment (900-950°C water quenching) followed by aging (480-550°C for 4-8 hours) can increase the spring's strength by 10%-15%, further improving its load-bearing capacity.
(4) Surface Treatment: Enhancing Performance and Life
Shot Peening: Shot peening creates a compressive stress layer on the spring surface, reaching a depth of 0.1-0.2 mm, effectively extending the spring's fatigue life and enhancing its resistance to fatigue fracture.

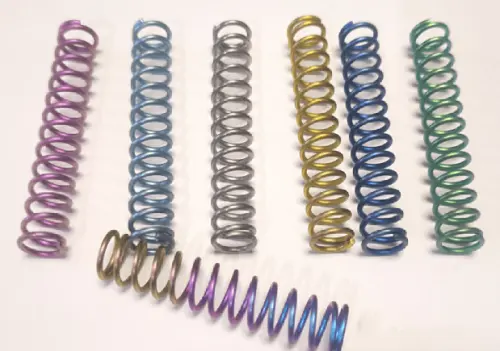

Anodizing: Producing a TiO₂ film (5-20 μm) not only enhances the spring's wear resistance but also improves its insulation properties, making it suitable for applications requiring both wear resistance and insulation.
(V) Welding and Joining: Ensuring Structural Stability
Laser welding is often used to connect closed-end springs. During the welding process, heat input must be strictly controlled to prevent coarsening and embrittlement of the β phase, which could affect spring performance. Precise welding techniques ensure the spring's structural stability and reliability.
III. Wide Applications: Demonstrating Prowess in Multiple Fields
(I) Aerospace: Reliable Support for Soaring
Titanium alloy springs play a vital role in the aerospace industry. Landing gear springs are made of TC4 material, undergoing hot forming and aging treatment, with a fatigue life exceeding 10⁷ cycles, capable of withstanding the tremendous impact and frequent load fluctuations during takeoff and landing. Engine valve springs are made of TA18 material, using cold-drawn wire and shot peening, with a temperature resistance of 450°C, ensuring stable engine operation in high-temperature environments.
(II) Medical Devices: A Gentle Power to Protect Life
The medical device industry places extremely high demands on the biocompatibility and performance stability of materials. Vascular stent springs are made from TA1 cold-drawn wire with a diameter of just 0.1-0.3 mm. Electrolytically polished to Ra <0.1 μm, the surface is smooth and harmless to blood vessels. Its excellent elasticity and biocompatibility provide stable support for blood vessels, helping patients recover.
(III) Automotive Industry: A Lightweight Choice for Enhanced Performance
Titanium Home reports that the use of titanium alloy springs in the automotive industry has seen explosive growth in recent years. Racing car suspension springs use TC4 material, which is 40% lighter than steel springs and offers adjustable stiffness. This weight reduction reduces energy consumption and improves acceleration and handling. Adjustable stiffness allows for optimization based on different track conditions and driving requirements, providing drivers with a better driving experience.
IV. Comparison with Steel Springs: Advantages and Challenges
Compared to steel springs (such as 60Si2MnA), springs offer significant advantages. With a density of 4.5 g/cm³, they are 40% lighter than steel springs, offering significant potential for lightweighting. The fatigue limit is 450-600 MPa, higher than the 300-400 MPa of steel springs, resulting in a longer service life. In terms of corrosion resistance, they are maintenance-free and suitable for use in marine and body fluid environments, whereas steel springs require plating or stainless steel, which increases costs. However, they also face challenges in terms of high material and processing costs.
V. Future Outlook: Innovation Drives Development
Springs, with their advantages of lightweight, high fatigue life, and corrosion resistance, present broad application prospects in high-end applications. However, issues such as springback control, oxidation protection during hot working, and high costs require further resolution. The development of low-cost β-type titanium alloys (such as Ti-3Al-8V-6Cr-4Mo-4Zr) will become a trend in the future. These alloys can further improve cold formability, reduce production costs, and promote the widespread application of them in more applications. With continuous technological advancement and innovation, titanium alloy springs are expected to become the mainstream choice for high-end springs, providing stronger support for the development of various industries.
