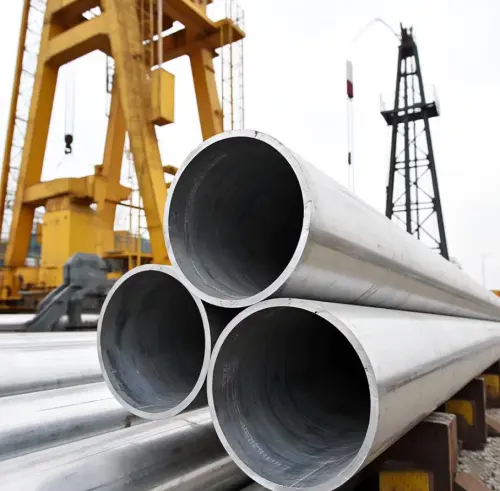

In the petroleum industry, oil well pipes are core equipment for oil and gas exploration and development. Their quality and performance directly affect the safety and efficiency of extraction operations. As global oil and gas resource extraction expands into deep wells, ultra-deep wells, and areas with complex geological structures, oil well pipes face increasingly severe challenges from extreme environments such as high temperatures, high pressures, and strong corrosion. Against this backdrop, titanium alloy oil well pipes, with their superior corrosion resistance, high strength, and lightweight properties, are gradually becoming an indispensable key material in the petroleum industry. Titanium Home, as a titanium industry information platform, has long focused on the application progress of titanium alloys in the energy field. This article, combining the latest domestic and international developments, provides a comprehensive analysis of the technical advantages, current application status, and prospects of titanium alloy oil well pipes.
Core Advantages of Titanium Alloy Oil Well Pipes
1. Excellent Corrosion Resistance
Titanium alloys exhibit extremely strong resistance to harsh corrosive environments such as acidic, alkaline, and high-mineralization brines, far exceeding that of conventional steel. The dense oxide film formed on its surface effectively isolates the substrate from the corrosive medium, thereby significantly reducing the corrosion rate. Titanium Home understands that this characteristic gives titanium alloy well tubing a significant advantage in oil and gas wells containing corrosive gases such as hydrogen sulfide and carbon dioxide. For example, the UNS R55400 titanium alloy developed in the United States, by adding elements such as palladium, further enhances its performance in extreme environments, especially in resistance to pitting corrosion, crevice corrosion, and sulfide stress corrosion cracking.
2. High Strength and Lightweight
The density of titanium alloys is only 57% that of carbon steel and 50% that of nickel-based alloys, but its specific strength (strength to density ratio) is significantly higher than both. This lightweight and high-strength characteristic helps reduce the load on the well tubing string, lower the power consumption of production equipment, and improve equipment safety. Titanium Home points out that titanium alloys have excellent fatigue and creep resistance, with a fatigue life more than 10 times that of ordinary steel, which is particularly important for long-life applications such as deep wells, ultra-deep wells, and marine risers.
3. Good High-Temperature Performance
Titanium alloys maintain stable mechanical properties and creep resistance even at high temperatures, making them suitable for high-temperature oil and gas well production. For example, Unocal Oil Company in the United States successfully applied Ti-3Al-8V-6Cr-4Mo-4Zr alloy tubing in the Salton Sea region, operating at temperatures exceeding 300℃; Chevron Corporation developed 145 grade titanium alloy thermal recovery well casing and applied it in multiple thermal recovery wells. Titanium Home believes that this characteristic provides technical support for the promotion of titanium alloy oil well tubing in high-temperature wells.
4. Non-magnetic and Good Weldability
Titanium alloys are non-magnetic, facilitating downhole logging and well logging operations; simultaneously, they possess excellent weldability, with high weld tensile strength, typically reaching 90% of the tubing body strength, providing convenience for the manufacture and installation of oil well tubing. Titanium Home's industry research indicates that this characteristic makes titanium alloy oil well tubing more adaptable to complex well conditions.
Current Application Status of Titanium Alloy Oil Well Tubing
Research and application of titanium alloy oil well tubing began abroad in the 1980s. Oil and gas companies in the United States, the United Kingdom, Norway, and other countries have pioneered the use of titanium alloy well tubing in deep, ultra-deep, and high-sulfur wells, achieving excellent results. According to Titanium Home, Equinor, the Norwegian national oil company, extended equipment life by more than three times and significantly reduced maintenance costs after using titanium alloy well tubing in its Troll gas field project in the North Sea.
2. Domestic R&D Achievements
My country's research and application of titanium alloy well tubing started relatively late, but significant progress has been made in recent years. Companies such as Sinopec and CNPC, in collaboration with research institutes, have successfully developed P110-grade α+β type titanium alloy well tubing, which has been successfully applied in deep and ultra-deep wells in the Yuanba gas field and Tahe oilfield in Sichuan. For example, in 2015, Sinopec used 634 titanium alloy tubing units for the first time in well 205-2 of the Yuanba gas field, with a depth exceeding 6200 meters. The corrosion resistance was close to that of nickel-based alloys, filling the gap in the application of titanium alloys in high-sulfur ultra-deep wells worldwide. Titanium Home learned from on-site investigations that the well has been operating stably to date, with no corrosion or leakage issues.
3. Standardization and Industrialization Promotion
To standardize the application of titanium alloy oil well tubing, my country has successively issued industry standards such as "Titanium Alloy Oil Tubing" (SY/T 6896.3-2016) and "Technical Specification for Titanium Alloy Casing" (SY/T 6896.4-2018), providing technical support for the industrial application of titanium alloy oil well tubing. Titanium Home noted that with the increasing maturity of domestic titanium alloy processing and manufacturing technology, the production cycle of seamless titanium pipes and welded pipes has been shortened, and costs have decreased, laying the foundation for the large-scale application of titanium alloy oil well tubing.
Challenges and Countermeasures Facing Titanium Alloy Oil Well Tubing
1. Performance Optimization and Cost Reduction
Currently, the large-scale application of titanium alloy oil well tubing still faces the dual challenges of performance "mismatch" and "too high" costs. On the one hand, most existing commercial titanium alloy materials are not designed for the extreme environments of oil and gas extraction, and their performance may plummet under high temperature and pressure. On the other hand, high-performance titanium alloys such as UNS R55400 rely on expensive rare metal elements such as palladium, resulting in high material costs. Titanium Home learned from industry experts that future efforts should focus on optimizing composition (such as finding affordable alternatives to palladium), innovating processes (such as improving smelting and processing technologies), and scaling up production (forming mass production capacity) to effectively reduce overall costs and overcome economic barriers.
2. Improvement of Standards System and Performance Evaluation
The performance evaluation standards and methods for titanium alloy oil well tubing still need further improvement. Although a series of performance testing standards have been established domestically, the suitability evaluation for extreme service environments, and the whole-life quality and safety supervision and assessment system still need to be improved. Titanium Home believes that it is necessary to strengthen research on the overall tubing string mechanical design of titanium alloy oil well tubing, establish corresponding design methods and specifications, and provide technical support for the widespread application of titanium alloy oil well tubing.
Titanium Home's Viewpoint: Future Prospects for Titanium Alloy Oil Well Pipes
As global oil and gas resource extraction expands into deeper and more complex areas, the market demand for titanium alloy oil well pipes will continue to grow. As a major titanium resource country, my country's titanium alloy processing and manufacturing technology is becoming increasingly mature, providing favorable conditions for the research and application of titanium alloy oil well pipes. Titanium Home predicts that in the next 5-10 years, with continuous progress in performance optimization and cost reduction, titanium alloy oil well pipes are expected to play a greater role in the petroleum industry, becoming an important tool for ensuring national energy security and advancing into deeper and more complex oil and gas resources.
