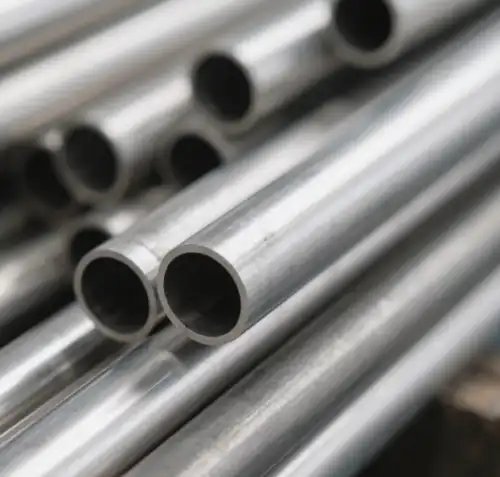

In the field of aerospace, the choice of materials directly affects the performance, safety, and service life of aircraft. Thin-walled titanium tubes have become an ideal material for key components such as aircraft, rockets, and satellites due to their high strength, light weight, corrosion resistance, and excellent high-temperature performance. This article will explore the advantages, application scenarios, technical standards, and market trends of thin-walled titanium tubes for aerospace to help buyers and engineers make more informed choices.
1. Why does the aerospace industry choose thin-walled titanium tubes?
(1) High strength and light weight
Titanium alloys (such as Ti6Al4V, GR5) have a strength close to that of steel, but weigh only 60% of it, which greatly reduces fuel consumption and improves flight efficiency.
Thin-wall design (wall thickness 0.5mm ~ 2mm) further reduces structural weight and is suitable for fuel systems, hydraulic pipelines, engine components, etc.
(2) Excellent corrosion resistance
Titanium remains stable under seawater, acidic environments, and high-temperature oxidation conditions, and is suitable for harsh environments such as aircraft fuel pipes and carrier-based aircraft cooling systems.
(3) High temperature stability
Titanium alloys maintain mechanical properties at 300-600°C and are suitable for high-temperature components such as engine nacelles and exhaust systems.
(4) Fatigue resistance
Titanium has a better fatigue life than aluminum alloys and is suitable for components that are subject to cyclic loads such as aircraft landing gear and wing support tubes.
2. Key applications of thin-walled titanium tubes for aerospace
| Application areas | Specific uses | Titanium alloy grades |
| Aircraft fuel system | Fuel delivery pipes, hydraulic pipes | GR2 (CP titanium), GR5 |
| Engine parts | Compressor ducts, heat exchanger tubes | GR5 (Ti6Al4V) |
| Fuselage structure | Wing support tubes, landing gear parts | GR5, GR9 (Ti3Al2.5V) |
| Spacecraft propulsion system | Rocket fuel pipes, satellite propellant pipes | GR5, GR12 (TiMo) |
| Thermal protection system | High temperature insulation ducts, exhaust systems | GR7 (Ti-Pd alloy) |
3. Technical standards for thin-walled titanium tubes for aerospace
The aerospace industry has extremely high requirements for material quality, and thin-walled titanium tubes must meet the following international standards:
- ASTM B338 (General standard for seamless titanium tubes)
- AMS 4928 (Specifications for aviation-grade Ti6Al4V titanium tubes)
- MIL-T-9046 (U.S. military titanium tube standard)
- GB/T 3625 (China Aviation Titanium Tube Stan)dard
Key parameter requirements:
✅ Tolerance accuracy: ±0.05mm (high-precision use)
✅ Surface treatment: pickling, polishing, or passivation (reducing friction resistance)
✅ Non-destructive testing: Ultrasonic (UT) or eddy current (ET) testing to ensure defect-free
4. Market trends and procurement recommendations
(1) Industry trends
Additive manufacturing (3D printing): integrated molding of thin-walled titanium tubes with complex structures to reduce welding requirements.
Mixed applications of composite materials + titanium tubes, such as carbon fiber-coated titanium tubes, to further reduce weight.
Sustainable aviation: The recyclability of titanium (100% remeltable) is in line with green aviation development.
(2) Procurement recommendations
🔹 Select certified suppliers: give priority to NADCAP-certified or AS9100-compliant manufacturers.
🔹 Customized requirements: provide detailed specifications such as wall thickness, length, end processing (flaring/threading), etc.
🔹 Cost optimization: Consider titanium-steel composite tubes or GR2 instead of GR5 (non-critical components).
5. Conclusion
Thin-walled titanium tubes for aerospace use have become an indispensable material for modern aircraft due to their advantages such as light weight, high strength and corrosion resistance. As the aviation industry develops towards a more efficient and environmentally friendly direction, the application of titanium tubes will be further expanded. When purchasing, you need to pay attention to material standards, supplier qualifications, and customized requirements to ensure optimal performance and reliability.
