Titanium alloys are widely used in various fields, including aerospace and chemical engineering, due to their exceptional performance. However, their unique machining properties present certain challenges for thread machining. In-depth research into titanium alloy machining characteristics, tool selection, and pipe fitting thread machining processes is crucial for improving titanium alloy thread machining quality and enhancing production efficiency.
Titanium Alloy Machining Characteristics and Features
(I) Low Thermal Conductivity
Titanium alloys have poor thermal conductivity, which directly leads to poor heat dissipation. During thread machining, heat cannot be effectively dissipated and cooled, causing the temperature of the machining area to rise rapidly. After machining, heat accumulation causes significant material springback, leading to deformation, which affects machining accuracy and part quality. Furthermore, high temperatures severely impact machining tools, increasing tool edge wear, significantly reducing tool life, and increasing machining costs.
(II) Low Deformation Coefficient
The low deformation coefficient of titanium alloys results in uneven cutting force distribution on the tool during machining, increasing tool wear. During the cutting process, the force applied to the tool per unit area increases, leading to accelerated tool wear and requiring more frequent tool replacement, impacting production continuity and efficiency.
(3) High Chemical Reactivity
Titanium alloys are highly chemically active and, under the high temperatures generated during Titanium alloy threading machining, are prone to chemical reactions with other metals. This reaction can cause adhesion between the tool and tap and the workpiece, resulting in "tool bite." A tool bite not only damages the tool, disrupting machining, but also reduces the surface quality of the threaded workpiece and increases the difficulty of subsequent processing.
(4) Excellent Overall Performance
To enhance the strength of the titanium metal, alloying elements are added to pure titanium to form titanium alloys. Titanium alloys are primarily classified into three types: TA titanium alloys, TB titanium alloys, and TC titanium alloys. TC titanium alloys are duplex alloys with extensive applications and are a key titanium alloy raw material in the aviation industry. Titanium alloys possess numerous excellent metallic properties: high strength and low density, yet their strength far exceeds that of many alloy steels; excellent heat resistance, with heat resistance hundreds of times greater than that of aluminum alloys, and excellent thermal stability; outstanding low-temperature performance, maintaining excellent performance even at ultra-low temperatures; and strong corrosion resistance, with strong resistance to acids, alkalis, moisture, and chlorides. However, they are chemically active, reacting with various chemical elements in the air, such as oxygen, nitrogen, and carbon. They also exhibit low thermal conductivity, with a coefficient far lower than that of metals like iron and aluminum.
Tests have shown that titanium alloys with varying compositional ratios exhibit varying performance indicators, further highlighting the importance of a thorough understanding of titanium alloy machining characteristics.
Selecting Tools for Threading Titanium Alloys
(I) Advantages of Staggered Tooth Taps
Titanium alloy threading is often performed using staggered tooth taps. Their unique design involves removing every other tooth, creating a staggered arrangement. This structure ensures single-sided contact between the workpiece and the tap, effectively reducing the friction and torque generated by friction. This method effectively prevents the tap from getting stuck or damaged, thereby improving thread processing quality.
When using staggered-tooth taps, the cutting thickness is doubled, and the depth is greater than the cold-work hardened layer. Although the increased cutting thickness increases the cutting force on the tap teeth, it is more beneficial for chip removal, reduces friction, and reduces the adhesion between the tap and chips, thereby improving tap durability and thread accuracy. In a staggered-tooth tap design, the number of completed tooth grooves should be an odd number to reduce the stress on the tooth edges and extend the tap life. When threading titanium alloys, using staggered-tooth taps can maintain tapping stability and improve thread accuracy.
(II) Combination of High-Speed Steel Taps and Carbide Taps
High-speed steel taps are recommended for threading titanium alloys. High-speed steel taps offer high toughness, deformation resistance, and excellent wear resistance. During the tapping process, a high-speed steel tap can be used for initial tapping, completing the majority of the cutting work. After initial tapping, a carbide tap can be used to correct the threaded hole. Carbide taps offer high hardness and strong wear resistance, further ensuring thread precision and quality. With the continued advancement of tool material research, tap materials more suitable for titanium alloy thread machining are expected to emerge in the future.

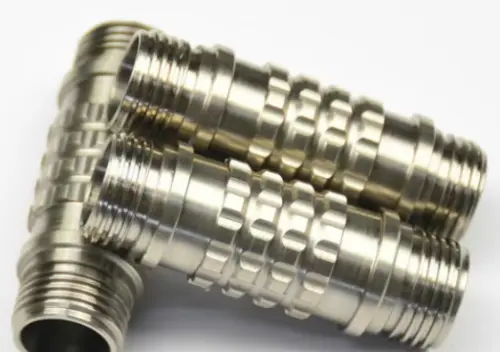

Processing Technology for Titanium Alloy Pipe Fitting Threads
(I) Thread Bottom Hole Treatment
Increasing the thread bottom hole can effectively reduce cutting forces and heat generated during machining. Due to the high strength of titanium alloy pipes, increasing the thread bottom hole diameter requires careful consideration of the required thread contact ratio and the specific number of thread starts. While ensuring threaded connection performance, the amount of increase in the bottom hole diameter should be appropriately determined. From a machining perspective, appropriately increasing the thread inside diameter can reduce the thread height. Appropriately increasing the thread diameter is particularly useful for tapping special materials such as titanium alloys. Although this reduces the thread contact ratio, the increased thread length ensures a stable and reliable threaded connection.
(II) Selecting a Machine Tapping Process
To prevent tap breakage due to excessive pressure during machining, machine tapping can be an option. Machine tapping offers advantages such as high stability and precise pressure control, ensuring even tap force during tapping and reducing the risk of tap breakage. Precise machine control can improve thread processing quality and consistency, meeting the high-precision requirements of titanium alloy pipe fitting threads.
Titanium alloy thread processing requires careful consideration of its unique machining characteristics, ensuring the optimal selection of tooling and processing techniques. By employing staggered-tooth taps, combining high-speed steel taps with carbide taps, optimizing thread base preparation, and employing machine tapping techniques, the quality and efficiency of titanium alloy thread processing can be effectively improved, providing strong support for the widespread application of titanium alloys in various fields.
