Introduction: The Importance of NDT in Aerospace Titanium Tube Manufacturing

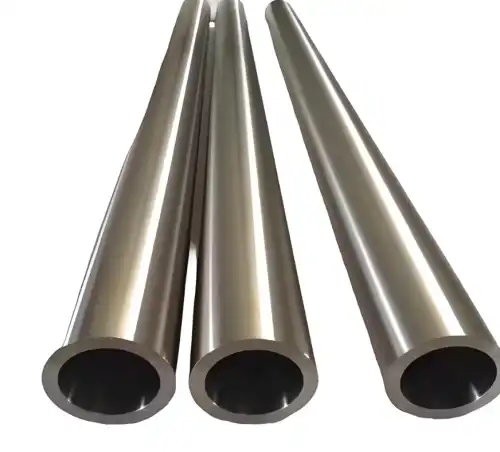

Titanium tubes are widely used in aerospace applications, such as aircraft hydraulic systems, engine fuel lines, and spacecraft structural components, due to their high strength-to-weight ratio and exceptional corrosion resistance. However, even microscopic material defects can lead to catastrophic failures, making Non-Destructive Testing (NDT) a critical step in ensuring titanium tube reliability.
As the aviation industry demands higher material integrity, NDT technologies continue to evolve. This article explores the latest NDT methods for aerospace titanium tubes, emerging trends, and their impact on the industry.
1. Key NDT Methods for Aerospace Titanium Tubes
(1) Ultrasonic Testing (UT)
Principle: High-frequency sound waves detect internal flaws (cracks, voids, inclusions) by analyzing echo patterns.
Application: Ideal for thick-walled titanium tubes, such as aircraft engine fuel lines.
Advantages: High accuracy, deep flaw detection, suitable for automated inspection.
(2) Radiographic Testing (RT)
Principle: X-rays or gamma rays penetrate the tube, revealing internal structures via imaging.
Application: Commonly used for weld inspections in aircraft hydraulic systems.
Advantages: Provides visual records, permanent documentation.
(3) Eddy Current Testing (ET)
Principle: Electromagnetic induction detects surface and near-surface defects.
Application: Best for thin-walled tubes (e.g., aircraft air conditioning lines).
Advantages: No couplant needed, fast inspection, ideal for mass production.
(4) Liquid Penetrant Testing (PT)
Principle: Fluorescent or dye penetrant reveals surface-breaking defects.
Application: Used for crack detection in spacecraft fuel delivery tubes.
Advantages: Low cost, simple operation, effective for complex geometries.
(5) Infrared Thermography (IRT)
Principle: Thermal imaging identifies defects based on temperature variations.
Application: Suitable for hybrid composite-titanium structures in next-gen aircraft.
Advantages: Non-contact, rapid, large-area scanning.
2. Emerging Trends: AI & Automated NDT Inspection
With advancements in Artificial Intelligence (AI) and Machine Learning (ML), NDT is shifting toward smart, automated solutions:
(1) AI-Powered Defect Recognition
Deep learning algorithms analyze UT/RT images with higher accuracy.
Example: Airbus and Boeing now use AI for automated weld inspections.
(2) Robotic NDT Systems
Industrial robots equipped with UT/ET probes enable 24/7 inspections, reducing human error.
GE Aviation uses robotic NDT for jet engine titanium tube inspections.
(3) Digital Twin Technology
Virtual simulations predict titanium tube performance under extreme conditions (high/low temps, pressure), optimizing NDT strategies.
3. Industry Challenges & Future Outlook
Challenges
Balancing Speed & Precision: Aerospace production demands fast NDT without compromising accuracy.
Testing Hybrid Materials: Carbon fiber-titanium composites require advanced NDT techniques.
Future Trends
Smart In-Line Inspection: Integration with 5G and IoT for real-time monitoring.
Stricter Standards: Evolving aerospace regulations (AS9100, NADCAP) will drive NDT advancements.
Conclusion: NDT is the Backbone of Aerospace Titanium Tube Safety
NDT testing plays a pivotal role in aviation safety. With AI, robotics, and digital twin technologies, inspection efficiency and reliability will reach new heights. The future lies in intelligent, automated NDT solutions to meet aerospace industry demands.
