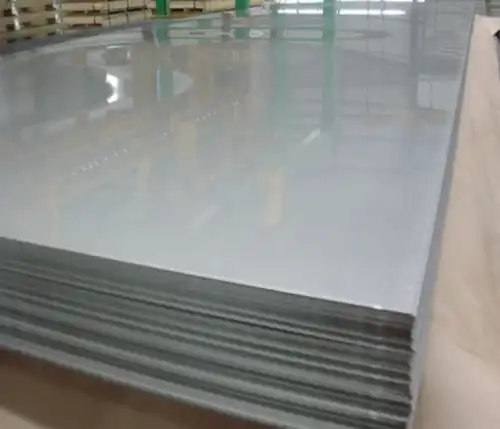

With the increasing demand for high-efficiency energy-saving and green environmental protection in the electroplating industry, titanium alloy anode plates are gradually replacing traditional electrode materials with their unique material properties and process advantages, becoming a key technological breakthrough in the electroplating industry. The following are the four core advantages of titanium alloy anode plates in electroplating applications:
1. Titanium alloy matrix enables efficient conductivity and ultra-long life
The titanium alloy anode plate uses high-strength titanium alloy as the substrate and combines the composite structure design of precious metal oxide coating to show performance far exceeding that of traditional materials. Its current efficiency is more than 30% higher than that of conventional electrodes, and it can stably carry a limiting current density of up to 10,000A/m². The natural corrosion resistance of titanium alloy anode plates and the synergistic effect of the coating extend the life of the anode in strong acid and alkali electrolytes to 2-3 times that of traditional platinum-plated electrodes, significantly reducing the frequency of equipment replacement.
2. Titanium alloy substrate achieves breakthrough in energy saving and consumption reduction
The optimized combination of titanium alloy substrate and precious metal ceramic coating, the electrode oxygen evolution overpotential being reduced to 1.385V (relative to mercurous sulfate), which has significant energy-saving advantages over platinum-plated electrodes (1.563V). Taking the copper foil alkaline copper plating process as an example, this technology reduces the voltage of the electrolytic cell by 15%-20%, and the annual power saving of a single production line can reach hundreds of thousands of degrees. The excellent thermal conductivity of titanium alloy can accelerate the heat diffusion of the reaction system and further reduce energy consumption.
3. Titanium alloy-ceramic coating synergistically ensures green production
The metallurgical bonding technology of nano-scale precious metal oxide ceramic coating (18-40μm) and titanium alloy substrate is used to form a composite interface with extremely stable chemical properties. Laboratory data show that the dissolution rate of the coating is less than 0.001 ppm/year in the pH range of 0-14, which fully meets the RoHS environmental protection standards. The actual test case of Baoji Qixin Titanium Co., Ltd. shows that after the titanium alloy anode plates is used continuously for 5,000 hours, the heavy metal ion concentration in the electroplating solution still maintains more than 98% of the initial value.
4. Titanium alloy process innovation reconstructs cost advantages
Compared with traditional platinum-plated electrodes, titanium alloy anodes achieve comprehensive cost optimization through material innovation: the amount of precious metals is reduced by 60% (the coating thickness is only 3.5μm), the manufacturing cost is reduced by 20%; the maintenance cost due to the extended service life is reduced by 40%. Taking the PCB electroplating production line with an annual output of 10,000 tons as an example, the equipment investment payback period is shortened to 1.5 years after the use of titanium alloy anodes, and the long-term operating costs can be saved by more than 35%.
At present, titanium alloy anode plates have been successfully applied to more than 20 fields such as high-end PCB copper plating, new energy battery foil processing, and aerospace precision electroplating. As leading companies such as Baoji Qixin continue to promote the research and development of titanium alloy surface modification technology, this technology will show greater application potential in emerging fields such as three-dimensional integrated circuit packaging and flexible electronic device manufacturing in the future.
