Titanium alloys are widely used in chemical processing, aerospace, marine engineering, and medical industries due to their excellent strength, corrosion resistance, and lightweight properties. ASTM B363 Gr5 (Ti-6Al-4V) is one of the most commonly used titanium alloys, and welding its elbows requires specialized techniques and procedures. This guide provides a detailed breakdown of the key steps for welding ASTM B363 Gr5 titanium elbows and answers related questions, including "What is the ASTM standard for elbows?", to help ensure high-quality weld results.

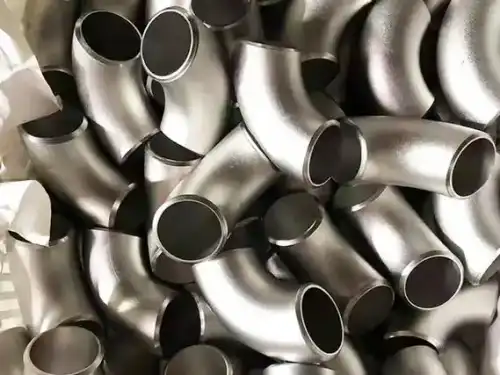

What is the ASTM Standard for Elbow?
Before diving into welding techniques, it’s essential to understand the ASTM B363 standard. This specification covers seamless and welded titanium and titanium alloy pipe fittings, including elbows, tees, reducers, and more. It defines material requirements, dimensions, tolerances, testing, and inspection methods.
ASTM B363 Gr5 applies to Ti-6Al-4V (Grade 5), the most widely used high-strength titanium alloy.
ASME B16.9 complements this standard by defining dimensional requirements for industrial pipe fittings.
Understanding these standards ensures compliance with industry regulations, making the fittings suitable for high-pressure, high-temperature, or corrosive environments.
Key Steps for Welding ASTM B363 Gr5 Titanium Elbows
1. Material Preparation
Surface Cleaning: Titanium is highly reactive with oxygen, nitrogen, and carbon. Before welding, thoroughly clean the elbow and pipe surfaces to remove grease, oxides, and contaminants. Use acetone or alcohol for degreasing, and avoid touching the weld zone with bare hands.
Beveling: Prepare a V-groove or U-groove bevel to ensure proper penetration and weld strength.
2. Selecting the Right Welding Method
Common welding techniques for titanium include:
TIG (Tungsten Inert Gas Welding): The most widely used method, offering high precision. Requires ultra-high-purity argon (99.999%) shielding.
Laser/Electron Beam Welding: Ideal for high-precision automated welding, but involves higher equipment costs.
3. Shielding Gas & Welding Environment
Inert Gas Protection: Titanium reacts rapidly with air at high temperatures, so the weld zone must be shielded with argon or helium, covering the front, back, and heat-affected zone (HAZ).
Welding Chamber or Trailing Shield: For critical applications, use a purge box or trailing shield to extend gas coverage.
4. Welding Parameter Control
Current & Voltage: Use DCEN (Direct Current Electrode Negative), adjusting amperage based on material thickness (typically 60-150A).
Travel Speed: Avoid excessive speed (risk of lack of fusion) or slow speed (overheating).
Interpass Temperature: Keep below 150°C to prevent grain growth and embrittlement.
5. Post-Weld Treatment & Inspection
Cooling Protection: Continue argon shielding until the weld cools below 400°C.
Visual Inspection: Check weld color—silvery white is ideal; blue/gray indicates oxidation.
Non-Destructive Testing (NDT): Perform X-ray, ultrasonic, or liquid penetrant testing (PT) to detect cracks, porosity, or other defects.
Common Challenges & Solutions
Q1: Why does porosity occur when welding titanium elbows?
Causes: Insufficient shielding gas, contamination, or improper travel speed.
Solution: Increase argon flow, enhance cleaning, and optimize welding parameters.
Q2: How to prevent brittle titanium welds?
Control heat input, maintain low interpass temperatures, and apply post-weld heat treatment if necessary.
Q3: Can ASTM B363 Gr5 titanium elbows be welded to other materials?
Yes, but galvanic corrosion is a risk. Use transition joints or insulation to mitigate this.
Conclusion
Welding ASTM B363 Gr5 titanium elbows demands strict process control—proper cleaning, inert gas shielding, parameter optimization, and post-weld inspection. Understanding "What is the ASTM standard for elbow?" ensures compliance with industry requirements for demanding applications.
For high-quality titanium welding services or fittings procurement, choose suppliers compliant with ASME/ASTM standards and consult professional welding engineers for optimal results.
