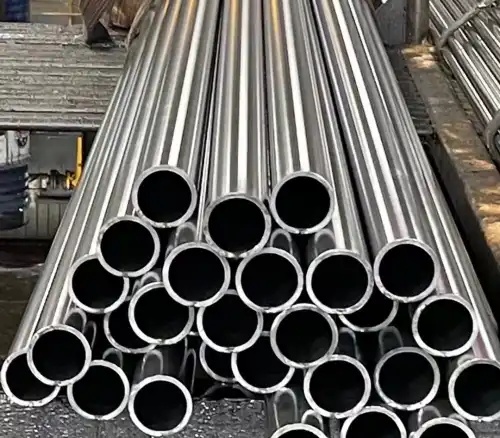

Selecting the ideal titanium pipe for aerospace applications is a basic choice that can altogether affect the execution, safety, and lifespan of aircraft and shuttle systems. As aviation engineers and acquisition pros explore the complex scene of materials science, understanding the subtleties of titanium amalgams, fabricating forms, and industry benchmarks gets to be foremost. This comprehensive direct dive into the key variables to consider when choosing titanium pipe for aerospace, including review determination, weight evaluations, erosion resistance, and weariness resistance. By investigating these pivotal viewpoints, we aim to prepare experts with the information required to make educated choices that will guarantee the success of their aviation endeavors, from commercial flying to cutting-edge space exploration missions.
Grade Selection & Standards: Picking the Right Titanium Alloy (Grade 2, Grade 5, Grade 9) for Aerospace
Understanding Titanium Grades for Aerospace Applications
When selecting Titanium Pipe For Aviation ventures, understanding the distinctive grades available is significant. Review 2 titanium, known for its great erosion resistance and formability, is frequently utilized in less basically requesting applications. Review 5 (Ti-6Al-4V), the workhorse of the aviation industry, offers a remarkable strength-to-weight proportion and is broadly utilized in aircraft structures and motor components. Review 9 (Ti-3Al-2.5V) strikes a adjust between quality and formability, making it perfect for water-powered and fuel frameworks in Aviation Titanium Pipe applications. Each review has special properties that cater to particular aviation necessities, and selecting the right one depends on components such as working temperatures, stretch levels, and natural conditions.
Compliance with Aerospace Industry Standards
Adherence to rigid aviation benchmarks is non-negotiable when choosing aerospace titanium pipe. Key details incorporate AMS 4928 for consistent and welded titanium tubing, ASTM B338 for consistent and welded titanium and titanium amalgam tubes for condensers and warm exchangers, and ASME SB-338 for weight vessel applications. These measures guarantee that aerospace titanium pipe meets the thorough quality and execution requirements of the industry. Also, producers must comply with AS9100 quality administration frameworks, particularly in aviation and defense. When selecting a provider, confirm their certifications and capacity to give full fabric traceability, which is essential for aerospace titanium pipe applications.
Optimizing Titanium Alloy Selection for Specific Aerospace Components
The choice of Titanium Pipe for Aviation must be custom-made to the particular component and its working conditions. For high-temperature applications like fly motor deplete frameworks, Review 5 titanium with its predominant quality maintenance at lifted temperatures is regularly the go-to choice. In differentiation, for cryogenic fuel lines in the shuttle, Review 9 titanium may be favored due to its great low-temperature sturdiness. Aviation Titanium Pipe utilized in auxiliary applications, such as landing equipment components, might require the tall strength-to-weight proportion of Review 5. It's pivotal to work closely with metallurgists and aviation engineers to analyze the stretch profiles, temperature ranges, and natural variables of each application to optimize the titanium combination selection.
Pressure Rating & Compliance: Navigating ASTM/ASME Specs for Aviation-Grade Titanium Tubing
Determining Pressure Ratings for Aerospace Titanium Piping
Accurate weight rating assurance is basic when selecting Titanium Pipe For Aviation applications. Engineers must consider variables such as divider thickness, distance across, working temperature, and security components as sketched out in ASME B31.3 Handle Channeling Code. For high-pressure frameworks in air ship hydrodynamics or fuel conveyance, Aviation Titanium Pipe must be appraised to withstand weights regularly surpassing 3000 psi. Producers regularly give pressure-temperature appraisals based on ASTM and ASME benchmarks, which serve as a starting point for plan calculations. Be that as it may, aviation applications frequently require extra security measures and thorough testing to guarantee unwavering quality under extraordinary conditions, including quick weight changes and vibration.
Navigating ASTM and ASME Specifications for Aerospace Titanium Tubing
Understanding and exploring ASTM and ASME details is pivotal when selecting titanium pipe for aerospace ventures. ASTM B338 covers consistent and welded titanium and titanium combination tubes for condensers and warm exchangers, whereas ASME SB-338 is its identical for weight vessel applications. These determinations detail prerequisites for chemical composition, mechanical properties, and non-destructive testing strategies. For aerospace titanium pipe, extra details like AMS 4928 may apply, which cover consistent and welded tubing for aviation liquid frameworks. It's basic to audit these benchmarks completely and guarantee that the chosen titanium pipe for aerospace not as it were meets but surpasses the minimum necessities for the planning aviation application.
Ensuring Compliance with Aviation-Specific Pressure Testing Protocols
Compliance with aviation-specific weight testing conventions is fundamental for Titanium Pipe for Aviation applications. These conventions regularly go past standard mechanical weight tests, joining cyclic weight testing, burst testing, and spill location beneath reenacted flight conditions. Aviation Titanium Pipe must experience thorough hydrostatic or pneumatic testing as per AS1001 or identical benchmarks. Furthermore, non-destructive testing strategies such as ultrasonic review and whirlpool current testing are utilized to distinguish any blemishes or irregularities in the pipe fabric. Producers must give comprehensive test reports and certifications, guaranteeing full traceability and compliance with flying specialist prerequisites like those set by the FAA or EASA.
Corrosion & Fatigue Performance: Evaluating Titanium Pipe Applications in High-Stress Aerospace Systems
Assessing Corrosion Resistance in Aerospace Environments
The extraordinary erosion resistance of Titanium Pipe For Aviation is one of its most important properties in harsh flying situations. Titanium's common oxide layer provides prevalent security against different destructive media, including saltwater spray, pressure-driven liquids, and de-icing chemicals commonly experienced in aviation operations. When assessing Aviation Titanium Pipe for erosion execution, consider components such as galvanic compatibility with other metals, resistance to push erosion breaking, and behavior in particular chemical situations pertinent to the application. For example, Review 2 titanium offers fabulous common erosion resistance, whereas Review 5 gives improved quality with great erosion properties, making it appropriate for auxiliary components exposed to destructive environments.
Evaluating Fatigue Performance in High-Stress Aerospace Applications
Fatigue performance is a critical consideration when selecting Titanium Pipe for Aerospace systems subject to cyclic loading and vibration. Aerospace Titanium Pipe must withstand the repeated stress cycles inherent in aircraft operations, from takeoff and landing to in-flight pressurization cycles. Grade 5 titanium (Ti-6Al-4V) is often preferred for its superior fatigue strength, especially in high-stress applications like engine components or landing gear systems. When evaluating fatigue performance, consider factors such as the pipe's microstructure, surface finish, and any stress concentration points. Advanced fatigue testing protocols, including high-cycle fatigue and low-cycle fatigue tests under simulated aerospace conditions, should be conducted to ensure the longevity and reliability of the titanium piping in critical systems.
Optimizing Titanium Pipe Design for Long-Term Reliability in Aerospace Systems
Designing Titanium Pipe For Aviation applications with long-term unwavering quality in intellect requires an all-encompassing approach that considers both fabric properties and system-level components. This incorporates optimizing divider thickness for weight reduction while keeping up essential quality, executing smooth moves and appropriate bolster to minimize stress concentrations, and considering warm development characteristics in multi-material frameworks. For Aviation Titanium Pipe utilized in basic applications, progressed design techniques such as finite element analysis (FEA) and computational fluid flow (CFD) ought to be utilized to mimic real-world conditions and recognize potential failure modes. Also, joining lessons learned from in-service execution information and conducting quickened life testing can assist in improving the long-term unwavering quality of titanium channeling frameworks in aviation applications.
Conclusion
Choosing the best titanium pipe for aerospace projects requires a multifaceted approach, considering grade selection, pressure ratings, corrosion resistance, and fatigue performance. By carefully evaluating these factors and adhering to stringent industry standards, engineers can ensure the optimal performance and longevity of aerospace systems. As the aerospace industry continues to push the boundaries of technology, the role of high-quality titanium piping remains crucial in enabling safer, more efficient, and increasingly advanced aircraft and spacecraft designs. For expert guidance and top-tier titanium products, consider partnering with industry leaders like LINHUI TITANIUM, who bring decades of experience and a commitment to excellence in aerospace materials.
LINHUI TITANIUM, founded in 2000 and headquartered in Xi'an, China, stands as a leading manufacturer and supplier of titanium and titanium alloys. With a global presence and a commitment to quality, LINHUI TITANIUM has established itself as a trusted partner in the aerospace industry. Their extensive range of certifications, including ISO 9001:2015, OHSAS 18001:2007, and approvals from major inspection agencies, underscores their dedication to meeting the highest industry standards. For inquiries and support, contact LINHUI TITANIUM at linhui@lhtitanium.com.
FAQ
Q: What are the main titanium grades used in aerospace applications?
A: The main titanium grades used in aerospace are Grade 2 for general applications, Grade 5 (Ti-6Al-4V) for high-strength requirements, and Grade 9 (Ti-3Al-2.5V) for a balance of strength and formability.
Q: How do I determine the appropriate pressure rating for aerospace titanium piping?
A: Pressure ratings are determined based on wall thickness, diameter, operating temperature, and safety factors as per ASME B31.3, with additional consideration for aerospace-specific requirements and safety margins.
Q: What standards govern titanium pipe quality for aerospace use?
A: Key standards include AMS 4928, ASTM B338, ASME SB-338, and AS9100 for quality management systems specific to aerospace and defense.
Q: How does titanium's corrosion resistance benefit aerospace applications?
A: Titanium's natural oxide layer provides excellent protection against corrosive media common in aerospace, such as saltwater spray, hydraulic fluids, and de-icing chemicals.
Q: What factors are important when evaluating fatigue performance of titanium pipes?
A: Key factors include the pipe's microstructure, surface finish, stress concentration points, and performance under cyclic loading and vibration typical in aerospace operations.
References
1. Boyer, R. R. (1996). An overview of the use of titanium in the aerospace industry. Materials Science and Engineering: A, 213(1-2), 103-114.
2. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
3. Inagaki, I., Takechi, T., Shirai, Y., & Ariyasu, N. (2014). Application and features of titanium for the aerospace industry. Nippon Steel & Sumitomo Metal Technical Report, 106, 22-27.
4. Lutjering, G., & Williams, J. C. (2007). Titanium (2nd ed.). Springer-Verlag Berlin Heidelberg.
5. Aerospace Materials Specification (AMS) 4928: Titanium Alloy Tubing, Seamless or Welded. SAE International.
6. ASTM B338-17: Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers. ASTM International.
