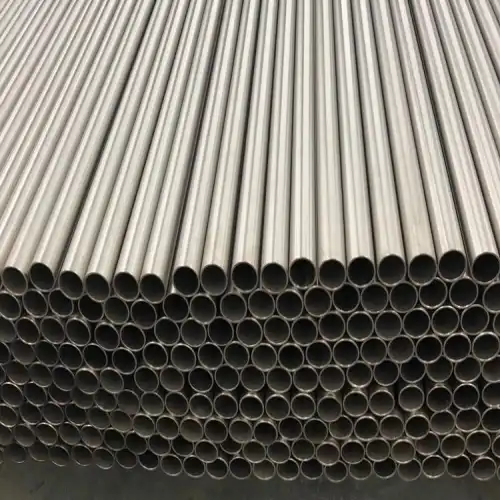

ASTM B861 Titanium Pipe resists corrosion through the spontaneous formation of a dense, self-healing titanium dioxide (TiO2) passive layer on its surface. This protective oxide film provides exceptional resistance to chlorides, acids, and seawater environments commonly encountered in oil, gas, and chemical processing applications. The seamless manufacturing process eliminates weld-induced vulnerabilities, while the precise chemical composition—featuring controlled oxygen, iron, and palladium content—ensures superior electrochemical stability and long-term reliability in aggressive industrial conditions.
Understanding ASTM B861 Titanium Pipe and Its Corrosion Resistance
Definition and Specification Overview
ASTM B861 is the standard measure for smooth titanium and titanium alloy pipes made for general service uses that need to fight corrosion and work at high temperatures. Unlike welded pipes that are covered by ASTM B862, these seamless pipes are made by extrusion or rotating piercing. This means that they don't have any weak spots that could affect their strength in harsh settings. The standard covers 34 different types of titanium alloys, from ones that are commercially pure to ones that are used in high-strength aircraft applications. Because it has the best combination of corrosion protection and mechanical qualities, Grade 2 (UNS R50400) is the material of choice for most chemical handling tasks. Meanwhile, Grade 7 has small amounts of palladium added to it, which makes it more resistant to reducing acid conditions where other grades might not work as well.
Chemical Composition and Material Properties
Titanium smooth pipes don't rust because the chemicals that make them up are carefully managed. Titanium is the main element in commercially pure grades. There are also small amounts of oxygen (0.18 to 0.25% maximum), iron, and other elements that affect both strength and rusting behavior. The amount of oxygen in a material is very important for setting its mechanical qualities and keeping its natural resistance to corrosion. Modern production methods make sure that the pipe wall has the same metallurgical qualities all the way through. Vacuum arc remelted (VAR) titanium billets get rid of impurities that could make them less resistant to rust. Precise cold-rolling and CNC cutting make it possible to get dimensions within ±0.1mm. Post-process heating gets rid of any remaining pressures and improves the microstructure so it works better in high-pressure situations.
Industrial Applications and Performance Requirements
Titanium pipes are used in chemical processing plants to move harsh media like sulfuric acid (H2SO4), hydrochloric acid (HCl), and chlorine compounds. Because it doesn't crack when exposed to chloride, the material is essential for desalination systems and remote bases where regular stainless steels would break quickly. The high strength-to-weight ratio is used in aerospace applications. For example, ASTM B861 Titanium Pipe is used in hydraulic systems for Boeing and Airbus providers. The material can keep its qualities even at very low temperatures and high temperatures up to 600°F (315°C). This makes it stable in harsh flight conditions.
Mechanisms Behind the Corrosion Resistance of ASTM B861 Titanium Pipe
Passive Oxide Layer Formation
When titanium pipes are introduced to oxygen-containing surroundings, they instantly form a titanium dioxide (TiO2) passive layer. This is how they protect themselves. Even though this oxide film is only 2 to 5 nanometers thick, it does a great job of protecting against acid attack. Because this layer is self-healing, any damage caused by mechanical forces is quickly fixed when it comes into contact with small amounts of oxygen or water. The inactive layer is very stable across a wide pH range, from very acidic to very basic conditions, according to research. The thick, sticky structure of the film stops harmful ions from getting through, successfully protecting the titanium below from the acidic environment. This process works all the time, so the safety lasts a long time and doesn't get worse over time.
Electrochemical Stability and Corrosion Potential
Titanium behaves electrochemically well in most situations, which puts it in a good place in the galvanic series. The material's corrosion potential stays the same in all kinds of media, which stops the electrical pushing force that is needed to start corrosion. This trait is especially useful in mixed-metallurgy systems, where galvanic interaction could speed up the breakdown of less desirable materials. Titanium's passive current density stays very low over a wide range of potentials, which means that it dissolves very slowly even when the conditions are polarized. Because titanium is electrochemically stable, it doesn't lose much material over long periods of time. This makes it perfect for important infrastructure where replacing a part could have big effects on safety and operations.
Heat Treatment Effects on Corrosion Performance
After they are made, heat treatment methods have a big effect on how resistant seamless titanium pipes are to rust. Controlled heating processes make the structure of the grains better and get rid of any leftover stresses that could lead to better corrosion sites. The even microstructure that is created by using the right heat treatment ensures that the rust protection is the same all the way through the thickness of the pipe wall. Stress-relief annealing works best for Welded titanium pipe B861 in high-pressure situations where leftover production stresses could weaken the stability of the passive layer. The thermal process helps even out the formation of oxides and makes the material more resistant to cracking caused by the climate in chloride-containing media.
Comparing ASTM B861 Titanium Pipe With Other Pipes in Corrosion Resistance
ASTM B861 vs. ASTM B862 Performance Differences
The seamless design of ASTM B861 pipes makes them more resistant to rust than ASTM B862 pipes that are soldered together. Weld areas in B862 pipes can have changed microstructures and leftover stresses that make them more likely to corrode, especially in chloride settings. Because ASTM B861 Titanium Pipe doesn't have any lengthwise weld lines, these weak spots are eliminated. Heat-affected areas next to welds often have changed grain patterns that can change how rust acts in that area. Seamless pipes have the same mechanical qualities all the way through their cross-section, so the whole part works the same way. This evenness is very important in situations where localized rust could cause a catastrophic failure.
Comparison with Stainless Steel and Nickel Alloys
Even though 316L stainless steel is good at resisting corrosion in many situations, it has problems with chloride-induced pitting and pocket corrosion that titanium can easily get around. In uses involving seawater, titanium pipes work better than stainless steel types, which quickly lose their strength. The ability to resist microbiologically-induced corrosion (MIC) is another benefit in coastal and offshore settings. In some environments, super-duplex stainless steels and high-nickel metals like Inconel 625 are almost as resistant to rust as titanium, but they cost a lot more. Titanium has a great strength-to-weight ratio—it is about 45% lighter than steel, which makes it useful in uses that need to be light while still having the same or better mechanical qualities.
Grade-Specific Performance Characteristics
Titanium grade 2 is very resistant to rust and can be used in most industrial settings that use oxidizing acids and salt solutions. Its middling strength makes it a good compromise between low cost and normal chemical processing equipment performance needs. Palladium additions in Grade 7 make it much more resistant to reducing acid conditions, especially hot, strong sulfuric acid and hydrochloric acid solutions. This grade is great for uses where other grades of titanium might rust more quickly. Its higher price is justified by the fact that it lasts longer and needs less upkeep.
Practical Procurement Considerations for Corrosion-Resistant ASTM B861 Titanium Pipes
Quality Certifications and Standards Compliance
To make a purchase go smoothly, you need to make sure that the quality certifications you get cover both the features of the materials and the way they were made. Some important certifications are ISO 9001:2015 for quality management systems, ASME compliance for pressure tank uses, and standards specific to the business, like API 5LC for oil and gas service.
Independent checks of material qualities and size compliance are done by third-party testing agencies like DNV, SGS, and TUV. These approvals make sure that ASTM B861 Titanium Pipe meets strict standards for important uses where failure could have major effects on safety and the environment.
The following certifications show that the product is made well and can be relied on:
- PED 2014/68/EU approval proves that European pressure equipment rules have been followed.
- The NACE MR0175 certification makes sure that the product can be used in bad service settings.
- Compliance with AMS 4928 and AS9100 meets the quality standards of the aircraft business
- API 5LC certification proves that the rules in the oil and gas business are being followed
These thorough approvals give purchasing managers faith in the quality of materials and the skills of suppliers. This lowers project risks and makes sure that regulations are followed in all global markets.
Supplier Selection Criteria and Geographic Considerations
When evaluating a supplier, you need to look at their manufacturing skills, quality processes, and how reliable their service is. Manufacturers that have been around for a while and have worked with big oil companies, military contractors, and chemical makers show that they have the skills needed for important jobs. Being close to big industrial areas can cut down on shipping costs and delivery times, and it can also make it easier to get technical help and supplies in case of an emergency. When working on big projects that need a lot of pipes on short notice, manufacturing capacity and flexibility are very important. Buying from suppliers that offer a range of grades and the ability to make products to specific sizes can save you money when projects need specific requirements or faster delivery times.
Cost Factors and Procurement Logistics
The price of a material changes a lot depending on the grade, the amount needed, and the state of the market. For normal corrosion protection uses, Grade 2 titanium is usually the most cost-effective option. On the other hand, specialty grades like Grade 7 are more expensive, but their better performance makes up for it. When planning a project, it's important to think carefully about minimum order numbers (MOQ) and wait times. Standard grades may have faster shipping times, but production processes for specialized metals may need to be longer. To get the best total project economics, the procurement, engineering, and operations teams need to work together to balance inventory prices and project plans.
Maintenance and Long-Term Performance of ASTM B861 Titanium Pipes in Corrosive Conditions
Inspection and Monitoring Protocols
Maintenance programs that work focus on keeping the inactive oxide layer intact by inspecting and keeping an eye on it on a regular basis. Visual screening methods can find surface damage or contamination that could weaken rust protection, and non-destructive testing methods make sure that the structure stays strong over time. Changes in rust behavior can be found by electrochemical tracking systems before they cause a lot of material loss. These advanced tracking methods are especially useful in mission-critical settings where unplanned system failures cost a lot of money. Keeping an eye on process factors like temperature, pressure, and chemical make-up on a regular basis helps keep working conditions within the limits set by the designer.
Preventive Maintenance Best Practices
Maintaining ideal surface conditions stops deposits from building up that could damage the structure of the inactive layer. Cleaning titanium regularly with the right tools and chemicals will keep the surface in good shape and keep the protective oxide film from getting damaged. Handling things correctly during installation and care stops mechanical damage that could lead to rust starting points. Process control measures make sure that working conditions stay within the parameters that were planned. This keeps the material from being exposed to surroundings that might not be as resistant to corrosion as titanium. To keep long-term dependability and stop surprising degradation processes, temperature and concentration limits must be followed.
Real-World Performance Data and Case Studies
Chemical processing plants say that ASTM B861 Titanium Pipe installations last longer than 20 years in harsh settings where stainless steel pipes need to be replaced every two to three years. When you look at the total cost of ownership, these proven performance benefits add up to high cost savings over the product's life. Marine systems are very durable in saltwater environments. For example, offshore platforms that have been in use for 15 years or more have reported very little rust. The material's resistance to marine fouling and microbiological attack gives it practical benefits beyond simple corrosion resistance. It lowers the need for upkeep and increases the time between inspections. When geothermal power plants move steam, they use titanium pipes because they can handle the high temperatures, high pressures, and harsh chemicals that are used in these situations. Service lives of more than 15 years in these tough environments prove the material's outstanding performance and cost-effective advantages.
Conclusion
The self-healing passive oxide layer, smooth structure, and carefully controlled metallurgy of ASTM B861 Titanium Pipe make it the best at resisting corrosion. Because it is electrochemically stable, has great mechanical qualities, and is lightweight, the material is the best choice for important uses in chemical processing, offshore operations, and aircraft systems. Proper procurement practices, including verification of quality certifications and supplier capabilities, ensure optimal performance and long-term reliability. With documented service lives exceeding 15 to 20 years in harsh settings. They provide a high lifecycle value by requiring less upkeep and making operations safer.
FAQ
What makes ASTM B861 titanium pipes more corrosion-resistant than welded alternatives?
The smooth construction gets rid of weld zones that can make rust sites and metallurgical flaws more likely. The pipe wall has a uniform microstructure that makes sure the passive layer generation and rust protection qualities are always the same.
How do different grades of ASTM B861 pipes perform in various corrosive environments?
For most commercial uses, Grade 2 is great at resisting corrosion, while Grade 7, with palladium added, is better at working in conditions that are less acidic. Which grade to use varies depending on the chemicals being used and the conditions of the job.
What certifications should I look for when procuring ASTM B861 titanium pipes?
PED 2014/68/EU, NACE MR0175 for sour service, API 5LC for oil and gas uses, and AMS 4928 for aircraft needs are all important certificates. Third-party inspections by companies like DNV, SGS, or TUV add to the quality guarantee.
How long can ASTM B861 titanium pipes last in corrosive environments?
In the real world, systems have service lives of more than 15 to 20 years in harsh chemical conditions and marine settings where normal materials might only last 2 to 3 years. Service life is extended by keeping things in good shape and working within their designed limits.
What are the key maintenance requirements for titanium pipes in corrosive service?
It is very important to check the passive oxide layer often, keep the surface clean, and make sure that the working conditions stay within the design limits. Compared to other materials, the oxide layer doesn't need as much upkeep because it can fix itself.
Partner with LINUI TITANIUM for Superior Corrosion-Resistant Piping Solutions
LINUI TITANIUM stands as your trusted ASTM B861 Titanium Pipe manufacturer, delivering exceptional quality through advanced vacuum arc remelted billets and precision manufacturing processes. Our comprehensive certification portfolio, including PED, API 5LC, and NACE MR0175 compliance, ensures your projects meet the most stringent industry standards. With over two decades of experience serving major oil companies, aerospace contractors, and chemical processors across 60+ countries, we understand the critical importance of reliable, corrosion-resistant piping solutions. Contact our technical team at linhui@lhtitanium.com to discuss your specific requirements and experience the LINUI TITANIUM advantage in quality, reliability, and global delivery capabilities.
