Driven by economic growth, titanium and titanium alloys, known as the "King of Biometals," are embarking on a broader journey of medical applications. Their exceptional biocompatibility allows for bone-to-skin integration, their superior mechanical properties support load-bearing and protection, and their exceptional corrosion resistance ensures lasting durability. These unrivaled qualities underpin their core value as cutting-edge medical materials.
Major Application Areas
1. Orthopedic Implants - The Largest Application Market
Artificial Joints

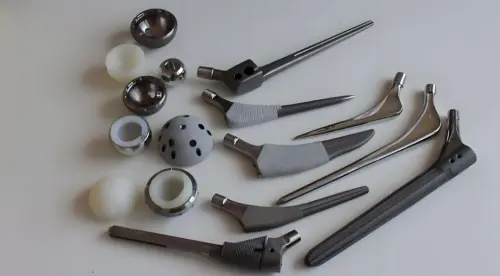

Artificial Hip Joints: Titanium alloys are commonly used in the manufacture of femoral stems (the portion implanted into the femur). Their surfaces are roughened or coated with hydroxyapatite (HA) to promote bone ingrowth and achieve biological fixation.
Artificial Knee Joints: Titanium alloys are also commonly used in femoral condyles and tibial trays.
Trauma Repair Products:
Bone Plates, Screws, and Intramedullary Nails: Used to stabilize fractures. Titanium plates' strength and toughness are ideal for bearing bone stress, and they facilitate postoperative CT or MRI follow-up (non-magnetic, minimal artifacts).
Spinal Implants:
Intervertebral Fusion Devices and Screw-Rod Systems: Used to treat conditions such as herniated discs, scoliosis, and spinal stenosis. The compatibility and strength of titanium alloys are crucial to successful surgery.
2. Dental Implants and Restorations
Dental Implants: This is one of titanium's most classic applications. Through sophisticated thread design and surface treatments (such as sandblasting and acid etching), titanium implants form a secure "osseointegration" with the jawbone, serving as artificial roots and supporting the crowns above. They are currently the preferred option for tooth replacement.
Dental Frameworks, Crowns/Bridges: Titanium alloys can be used to create frameworks for removable dentures and base crowns for porcelain veneers, due to their lightness, comfort, durability, and hypoallergenic properties.
3. Cardiovascular Interventional Devices
Pacemaker and Implantable Defibrillator Housings: Titanium housings offer excellent sealing and high biocompatibility, perfectly protecting the delicate internal circuitry and allowing for long-term maintenance in the human body. Vascular Stents: While cobalt-chromium alloys are the mainstream, nickel-titanium alloys, thanks to their superelasticity and shape memory effect, have important applications in non-coronary applications (such as peripheral vascular stents). They can be compressed at low temperatures and, after being delivered into a blood vessel, return to their pre-set shape at body temperature, thereby opening narrowed vessels.
4. Craniomaxillofacial Repair
Skull plates and maxillofacial implants: Used to repair skull and maxillofacial bone defects caused by trauma, tumor resection, or congenital malformations. Titanium mesh can be 3D-printed based on the patient's CT data, enabling personalized, precise repairs that perfectly restore the patient's physiological appearance.
5. Surgical Instruments and Equipment
Surgical Instruments: Titanium forceps, scissors, retractors, and other instruments are lighter than stainless steel instruments, reducing fatigue during prolonged surgeries. They are also more corrosion-resistant and easier to sterilize.
Current Trends and Future Outlook
The development of titanium in the medical field is evolving towards greater precision, intelligence, and bioinspired technologies.
1. 3D Printed (Additive Manufacturing) Personalized Implants
This is the most disruptive trend. Based on patient CT data, 3D printing can:
Customization: Create complex implants (such as artificial vertebral bodies and pelvic prostheses) that perfectly match the patient's anatomy.
Porous Structure: Print implants with biomimetic microporous structures that mimic the cancellous bone of human bone, significantly promoting bone ingrowth, achieving stronger biological fixation, and further optimizing elastic modulus.
2. Surface Functionalization
Making titanium implants "smarter."
Promoting Osseointegration: Developing new bioactive coatings (such as those incorporating growth factors like BMP) to accelerate the healing process.
Antimicrobial and Anti-infection: Surface loading with silver ions or antibiotics or leveraging the inherent antimicrobial properties of nanostructures can address the challenge of post-implant infection.
3. Development of New Medical Titanium Alloys
Low-Elastic Modulus Alloys: Developing β-type titanium alloys, such as the Ti-Nb-Zr-Sn series, whose elastic modulus more closely resembles that of human bone, is more beneficial to bone health.
Aluminum- and Vanadium-Free Alloys: Although vanadium and aluminum have extremely low toxicity, developing safer alloy compositions (such as Ti-6Al-7Nb or Ti-Zr alloys) is a long-term goal.
Looking ahead, the development prospects of titanium and titanium alloys in the medical field are broad and far-reaching. The core trend is moving from "bioinert" alternative materials to a new stage of "bioactivity" and "intelligent functionality." With the popularization of 3D printing technology and advances in surface engineering, titanium will continue to lead the future of personalized and precision medicine, bringing benefits to more patients.
