Introduction: Why Choose Non-standard Customized Titanium Tube?
In industries like aerospace, medical implants, semiconductors, and specialty chemicals, standard titanium tubes often fail to meet unique operational requirements. Non-standard customized titanium tube manufacturing delivers mission-critical solutions through precise dimensional control, specialized alloy formulations, and tailored surface treatments. This comprehensive guide examines the custom fabrication process, technical challenges, and industrial applications of this advanced manufacturing specialty.
1. Core Capabilities in Non-standard customized titanium tube
(1) Non-Standard Dimensional Processing
-
Ultra-thin walls: Down to 0.3mm (requires real-time laser diameter monitoring)
-
Large-diameter thin-wall tubes: Maintain 0.8mm wall uniformity even at Φ300mm+ diameters
-
Special cross-sections: Elliptical, square, corrugated for advanced fluid dynamics
(2) Specialty Material Options
| Alloy Grade | Characteristics | Typical Applications |
|---|---|---|
| GR1 | Ultra-high purity (O₂<0.18%) | Semiconductor equipment |
| GR5 (Ti6Al4V) | Strength up to 1100MPa | Aircraft hydraulic systems |
| GR7 (Ti-0.2Pd) | HF acid resistance | Chemical reactors |
| Beta-C | Superior cold-forming | Complex bent components |
(3) Precision Surface Engineering
-
Medical-grade polishing: Ra≤0.4μm (ISO 13485 implant standard)
-
Anodizing: Custom color coding for aerospace identification
-
Internal coatings: PTFE/PVD coatings for reduced fluid friction
2. Key Manufacturing Process Comparison
| Process | Tolerance | Min Wall Thickness | Cost Index | Best For |
|---|---|---|---|---|
| Cold Rolling + Fine Drawing | ±0.03mm | 0.5mm | ★★☆ | Medium-volume precision tubes |
| Laser Welding + Sizing | ±0.1mm | 0.3mm | ★★★ | Ultra-thin special profiles |
| Flow Forming | ±0.15mm | 1.0mm | ★★☆ | Large-diameter thin-wall tubes |
| 3D Printing (DED) | ±0.2mm | 1.5mm | ★★★★ | Topology-optimized structures |
Note: Aerospace applications require residual stress testing (X-ray diffraction)
3. Industry Case Studies
Case 1: Neurosurgical Titanium Microtubes
-
Specs: Φ0.8mm×0.1mm wall
-
Challenge: Burr-free internal polish to Ra0.2μm
-
Solution: Electrochemical polishing + ultra-pure argon annealing
Case 2: Rocket Fuel Distribution Networks
-
Requirements: Φ50mm×0.6mm wall / 15MPa pressure rating
-
Process: EB welding + hydroforming calibration
-
QA: 100% industrial CT scanning (5μm resolution)

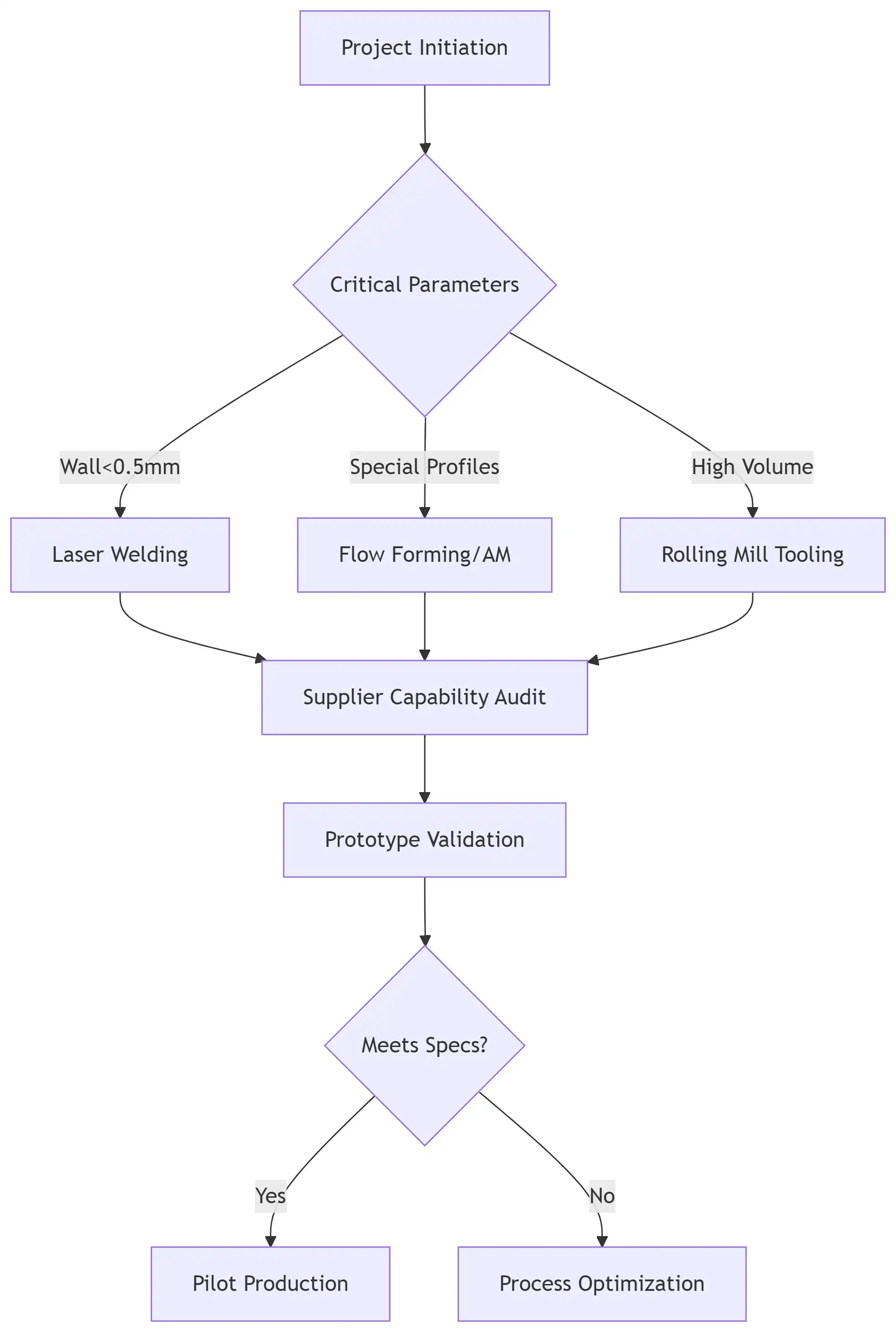

4. Procurement Decision Tree
5. Emerging Technology Trends
-
AI Process Optimization: Machine learning for crack prediction
-
Hybrid Manufacturing: Titanium-CFRP composite tubes (30% weight reduction)
-
Digital Twin: Virtual prototyping reduces development costs
6. Gold Standards for Supplier Selection
-
Certifications: Dual ISO13485 (medical) + AS9100 (aero) required
-
Equipment: Must have precision 3-roller planetary mills (±0.02mm)
-
Quality Systems: SPC charts demonstrating Cpk≥1.67
-
Portfolio: Fatigue test reports for comparable projects
