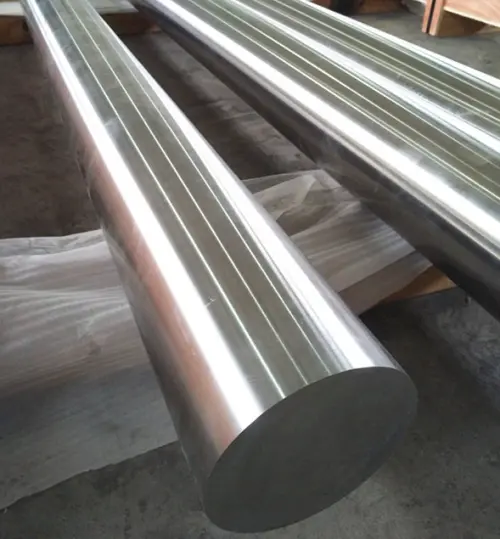

In industrial production and practical applications, titanium rods are widely used in numerous fields due to their excellent properties, such as high strength, low density, and excellent corrosion resistance. However, some troubling issues have also emerged: some titanium rods produced using the rolling process, while showing no defects during flaw detection, develop microcracks on the surface after a short period of use, seriously affecting their performance. This phenomenon not only causes headaches for manufacturers but also raises concerns about product quality among users. As an industry information platform, Titanium Home has been following this incident as soon as possible, aiming to provide the industry with comprehensive and in-depth information and help resolve the issue.
A Preliminary Exploration of the Causes of Cracks
Rolling Orientation and the Suspicion of Near-Surface Thermal Shear Bands
Some believe that rolling orientation or the presence of thermal shear bands near the surface may be the culprit. Under the influence of ultrasound, the alloy detaches along grain or phase boundaries, initiating cracks. However, due to the lack of detailed information on the titanium rod's alloy grade, rolling process, and specifications, it's difficult to definitively determine whether this factor is the direct cause of the cracks. However, this speculation provides a promising avenue for research: microstructural changes during the rolling process may have a significant impact on the performance of the titanium rod.
The Disadvantages of Insufficient Deformation During Coarse Forging
Further analysis revealed that a key issue may exist during the coarse forging process prior to rolling. Specifically, insufficient drawing cycles, or in other words, insufficient deformation, prevents complete grain refinement. Coarse grains are a significant risk for material degradation, impairing mechanical properties such as strength and toughness, making them more susceptible to cracking under stress or environmental factors. Furthermore, the rolling process itself exacerbates material anisotropy, meaning differences in properties in different directions. If the preceding forging process is improperly controlled, this anisotropy can become more pronounced, further increasing the risk of cracking.
Oversights in Key Process Steps
In actual production, simply focusing on the temperature and specifications of the final product is insufficient. The numerous preceding process steps are the key factors affecting titanium rod performance. For example, precise control of composition is crucial. Different alloying elements and their concentrations can significantly alter the microstructure and properties of titanium alloys. Deviations in composition can increase the material's brittleness or decrease its corrosion resistance, leading to cracks. The rationality of the forging and drawing process is also crucial. A proper drawing and drawing process can achieve a more uniform and dense internal structure. The amount of deformation during each heat treatment must also be precisely controlled. Excessive deformation can lead to internal defects, while too little deformation will fail to achieve grain refinement. Furthermore, the final heat treatment temperature and duration have a decisive influence on the properties of titanium rods. Heat treatment can eliminate residual stress within the material and improve the microstructure. However, excessively high temperatures or prolonged treatment can lead to overburning or re-growth of the grains. Excessively low temperatures or short treatment times will not fully achieve the desired effect.
The Impact of Titanium Alloy Microstructure on Ultrasonic Propagation
In addition to the causes of cracks, the different microstructures of titanium alloys can also significantly affect the propagation of ultrasonic waves within them. Ultrasonic testing is a commonly used nondestructive testing method that detects internal defects by analyzing the propagation of ultrasonic waves through the material. However, titanium alloys have a complex and diverse microstructure. Different phase compositions, grain sizes, and orientations can alter the propagation path and velocity of ultrasonic waves. For example, coarse grains can cause ultrasonic waves to scatter and reflect at grain boundaries, increasing signal attenuation and affecting defect detection accuracy. Different phase boundaries can also create similar obstacles to ultrasonic waves, leading to deviations in detection results. Therefore, when using ultrasonic testing on titanium rods, it is necessary to fully consider the impact of the titanium alloy's microstructure on ultrasonic propagation and select appropriate testing parameters and methods to improve detection accuracy.
Countermeasures and Recommendations
To address the problem of cracks in titanium rods during use, comprehensive measures must be taken from multiple perspectives. First, during the production process, process parameters must be strictly controlled at every stage. Regarding composition control, ensure that the alloying element content meets standard requirements through precise batching and smelting processes. During the forging and drawing process, the number of drawing cycles and the amount of deformation per firing should be appropriately determined based on the characteristics of the titanium alloy and product requirements to ensure sufficient grain refinement. Furthermore, the heat treatment process should be optimized, and the optimal heat treatment temperature and time should be determined through experiments to achieve the ideal microstructure and properties.
Secondly, strengthen quality inspection and monitoring. In addition to conventional flaw detection, metallographic analysis and mechanical property testing can be used to comprehensively evaluate the internal structure and properties of titanium rods. During the production process, a strict quality inspection system should be established, and random inspections should be conducted on each batch of products to promptly identify potential problems.
Finally, strengthen R&D and technological innovation. In-depth research should be conducted on the relationship between the structure and properties of titanium alloys, and new processes and materials should be developed to improve the crack resistance and performance of titanium rods. For example, by adding specific alloying elements or adopting new heat treatment processes, the microstructure of titanium alloys can be improved to reduce the tendency to crack.
The cracking problem that occurs during the use of titanium rods is a complex systemic process involving multiple production links and factors. Only by thoroughly analyzing the causes and implementing effective response strategies can the quality and reliability of titanium rods be improved to meet the application needs of various fields.
