In the field of industrial materials, pure titanium plates and composite titanium plates show completely different engineering values due to structural differences. This article systematically analyzes the nature of materials, performance characteristics, and practical applications to provide a scientific basis for engineering material selection.
1. Genetic differences like materials

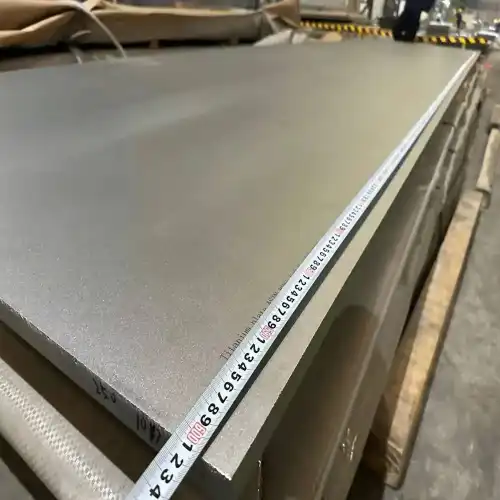

As a representative of single metal materials, pure titanium plates are based on α-type crystal structures and generally have a purity of more than 99%. Its preparation relies on vacuum consumable arc melting (VAR) technology, and the thickness tolerance can be controlled within the range of ±0.02mm through multiple precision rolling. This single metal property gives it excellent homogenization performance, especially in the field of aerospace. TA1ELI-grade electronic pure titanium (oxygen content ≤0.07%) has become the core material for the Boeing 787 fuselage skin.
Composite titanium plates have ushered in a new era of layered composites, and the 0.5-5mm titanium layer is permanently combined with the carbon steel/stainless steel substrate through explosive composite or hot rolling composite processes. The transition layer uses Ag72Cu28 brazing filler metal to achieve metallurgical bonding, with a shear strength exceeding 140MPa and a bonding rate of up to 98%. This structural innovation enables the material to have both the corrosion resistance of titanium and the strength of the substrate, showing unique advantages in the manufacture of PTA oxidation reactors with a diameter of more than 5 meters.
2. Arena of performance parameters
In terms of adaptability to extreme environments, pure titanium plates are the best with a temperature resistance span of-196~600℃. Its specific strength reaches 3.8-4.5, far exceeding most alloy steels, and is irreplaceable in ultra-low temperature scenarios such as liquid nitrogen storage tanks. In terms of biocompatibility, its surface oxide film meets the ISO 5832-2 standard, making it the preferred material for artificial joint implants.
Composite titanium plates have emerged in wear-resistant composite working conditions. The titanium protective layer can resist corrosion from seawater media (corrosion rate ≤0.001mm/a), and the substrate layer provides structural support. This synergistic effect increases its service life in seawater desalination devices by more than 3 times. In terms of economy, compared with the all-titanium structure, it can save 40-70% of titanium consumption, which has great cost advantages in the construction of large storage tanks.
3. Division and integration of application scenarios
Aerospace and medical fields are the main battlefields of pure titanium plates. The weight reduction of the skin per square meter of the Boeing 787 fuselage is 20kg, and the long-term biological stability of the pacemaker shell has confirmed its irreplaceability. In the chemical industry, pure titanium plates have become the liner material of special reactors due to their stability in strong corrosive media such as concentrated hydrochloric acid and acetic acid.
Composite titanium plates dominate the manufacturing of process industry equipment. In the field of pressure vessels, its breakthrough pressure bearing capacity (≥10MPa) and anti-crevice corrosion properties make it a standard configuration for oxidation reactors of PTA devices. In marine engineering, a 3m wide composite plate can be used to form a seawater pump housing in one go, with both anti-cavitation and seawater corrosion resistance.
4. Double helix of technological evolution
Material innovation is driving both to a higher dimension: in the field of pure titanium plates, wide titanium strips with a width of more than 2000mm are continuously produced, and electron beam cold bed melting technology reduces the impurity content to ppm level; new gradient composite processes have emerged in composite plate technology, and the interface bonding strength is increased by 30% through the design of nano-transition layer. The online monitoring system integrates ultrasonic C-scan technology to achieve 100% non-destructive testing of the composite interface.
When selecting engineering models, it is necessary to follow the ASTM B265 and ASME SB898 standard frameworks and make decisions in combination with life cycle cost analysis (LCCA). Current data shows that the market share of composite titanium plates in pressure vessels has reached 35%, while pure titanium plates still maintain an absolute advantage of 95% in the biomedical field. This complementary development pattern will continue to promote the in-depth application of titanium materials in the field of high-end manufacturing.
