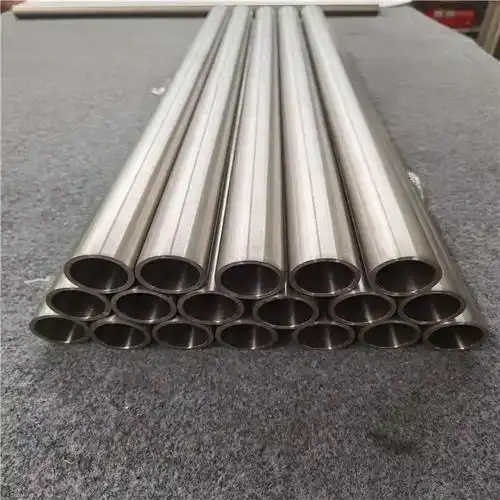

Introduction: Why Does ASTM B861 Titanium Seamless Pipe Require Special Welding Procedures?
ASTM B861 titanium seamless pipes are widely used in critical industries like oil & gas, chemical processing, and aerospace due to their exceptional corrosion resistance and high strength. However, titanium welding demands specialized techniques - improper procedures can lead to weld embrittlement, porosity, or contamination. This comprehensive guide details the essential welding considerations for ASTM B861 Titanium Seamless Pipe Welding to achieve high-quality welded joints.
1. Critical Preparations Before ASTM B861 Titanium Seamless Pipe Welding
(1) Material Preparation
-
Surface cleaning: Remove oils and oxides using acetone or alcohol (titanium readily reacts with oxygen/nitrogen at high temperatures)
-
Groove preparation: Recommended V or U grooves (60-75° angle, 0.5-1mm root face)
-
Protection measures: Full argon shielding (≥99.999% purity) covering weld zone, backside, and HAZ
(2) Welding Equipment Selection
| Equipment Type | Recommended Specifications |
|---|---|
| Welding Process | GTAW (TIG) |
| Tungsten Electrode | Ceriated tungsten (WC-20) |
| Shielding Gas | Argon (15-25L/min flow rate) |
| Power Characteristics | DCEN (Direct Current Electrode Negative) |
2. Welding Parameters for ASTM B861 Titanium Seamless Pipes
(1) Typical Parameters (6mm wall thickness example)
| Parameter | Range |
|---|---|
| Current | 90-150A |
| Voltage | 10-15V |
| Travel Speed | 3-8cm/min |
| Interpass Temperature | ≤150°C |
(2) Professional Welding Techniques
-
Low heat input multi-pass welding: Prevents grain coarsening
-
Torch angle: Maintain 15° inclination, 4-6mm electrode extension
-
Filler wire: ERTi-2 or ERTi-5 (matching base metal composition)
3. Weld Quality Inspection & Defect Solutions
(1) Essential Inspection Methods
-
Visual inspection: Check weld color (silver-white = acceptable, blue/gray indicates oxidation)
-
Liquid penetrant testing (PT): Detects surface cracks
-
Radiographic testing (RT): Identifies internal porosity/lack of fusion
(2) Common Defect Solutions
| Defect Type | Root Cause | Corrective Action |
|---|---|---|
| Porosity | Inadequate shielding/contamination | Improve gas coverage, increase argon purity |
| Cracking | Rapid cooling/stress concentration | Preheat to 100-150°C, slow post-weld cooling |
| Discoloration | Insufficient gas coverage | Add a trailing shield, check the gas line integrity |
4. Welding Differences: ASTM B861 Seamless vs. Welded Titanium Pipes (e.g., ASTM B862)
| Comparison | ASTM B861 Seamless | ASTM B862 Welded |
|---|---|---|
| Weldability | Better (homogeneous material) | More challenging (base metal vs. weld metal differences) |
| HAZ | Narrower | Wider |
| Residual Stress | Lower | Higher (requires more PWHT) |
5. Post-Weld Treatment Recommendations
-
Stress relieving: 600-700°C for 1 hour (thick-walled pipes)
-
Pickling/passivation: Remove oxide layer, restore corrosion resistance
-
Final testing: Hydrostatic test (1.5x working pressure) + ultrasonic inspection
Conclusion: How to Ensure Quality Welds on ASTM B861 Titanium Seamless Pipes
Successful ASTM B861 Titanium Seamless Pipe Welding requires:
-
Meticulous cleaning (eliminate contamination sources)
-
Perfect shielding (complete argon coverage)
-
Precise heat control (avoid overheating)
-
Professional inspection (multi-stage quality control)
