Introduction: Why Understand Titanium Elbow Standards?
In high-end industries such as petrochemical, aerospace, and marine engineering, titanium alloy elbows are highly valued for their exceptional corrosion resistance and high strength. However, when procuring or manufacturing titanium elbows, ASTM B363 and ASME B16.9 are two frequently encountered yet often confused standards. This article provides an in-depth analysis of the differences and connections between these critical standards to help you make more informed technical decisions.
Part 1: Fundamental Understanding of the Standards
1. ASTM B363 Standard Explained
Full Title: Standard Specification for Seamless and Welded Titanium and Titanium Alloy Fittings
Key Coverage:
Material chemical composition (e.g., Gr1-Gr12 titanium alloys)
Mechanical property requirements (tensile strength, yield strength, etc.)
Heat treatment processes
Non-destructive testing methods
Typical Products: Seamless/welded titanium elbows, tees, reducers, etc.
2. ASME B16.9 Standard Explained
Full Title: Factory-Made Wrought Butt-Welding Fittings
Key Coverage:
Fitting size ranges (DN15-DN1200)
Wall thickness tolerances (e.g., Sch5S-Sch160)
End preparation forms
Dimensional tolerances
Typical Products: Butt-welding fittings in steel/stainless steel/titanium, etc.
Part 2: Key Differences Comparison
| Comparison Aspect | ASTM B363 | ASME B16.9 |
|---|---|---|
| Standard Type | Material & manufacturing standard | Dimensional & tolerance standard |
| Primary Focus | Chemical composition, mechanical properties | Dimensions, connection compatibility |
| Applicable Materials | Exclusive to titanium alloys | Multi-material (including titanium) |
| Testing Requirements | Mandatory material test certificates (MTC) | Material testing is not typically required |
| Typical Applications | High-pressure corrosive environments | Piping system dimensional matching |
Part 3: Synergistic Relationship in Engineering Applications
Best Practices for Compliance
Dual Certification Selection:
Prioritize titanium elbows marked with both "ASTM B363 Gr5 + ASME B16.9"
Example marking:
Material: Ti-6Al-4V (ASTM B363 Gr5)
Dimensions: ASME B16.9 Sch40
Material: Ti-6Al-4V (ASTM B363 Gr5) Dimensions: ASME B16.9 Sch40
Typical Application Scenarios:
Chemical Piping: ASTM B363 ensures corrosion resistance + B16.9 guarantees piping compatibility
LNG Cryogenic Systems: B363 controls low-temperature toughness + B16.9 standardizes flange dimensions
Marine Seawater Systems: Dual standards ensure long-term reliability
Part 4: Frequently Asked Questions
Q1: Can ASME B16.9 alone be used to procure titanium elbows?
→ Risk Alert: Compliance with only B16.9 may not guarantee titanium material purity. Always request ASTM B363 material certificates from suppliers.
Q2: Differences in Sch40 between standards?
→ Technical Note: ASME B16.9 defines dimensions, but actual wall thickness must comply with ASTM B363 tolerance ranges.
Q3: How to verify standard authenticity?
→ Practical Advice:
Request third-party test reports (e.g., SGS/BV)
Verify heat numbers against MTC documentation
Part 5: Industry Trends & Selection Guidance
Latest Standard Updates
ASTM B363-23: Added electron beam welding requirements
ASME B16.9-2021: Optimized ovality tolerances for large elbows

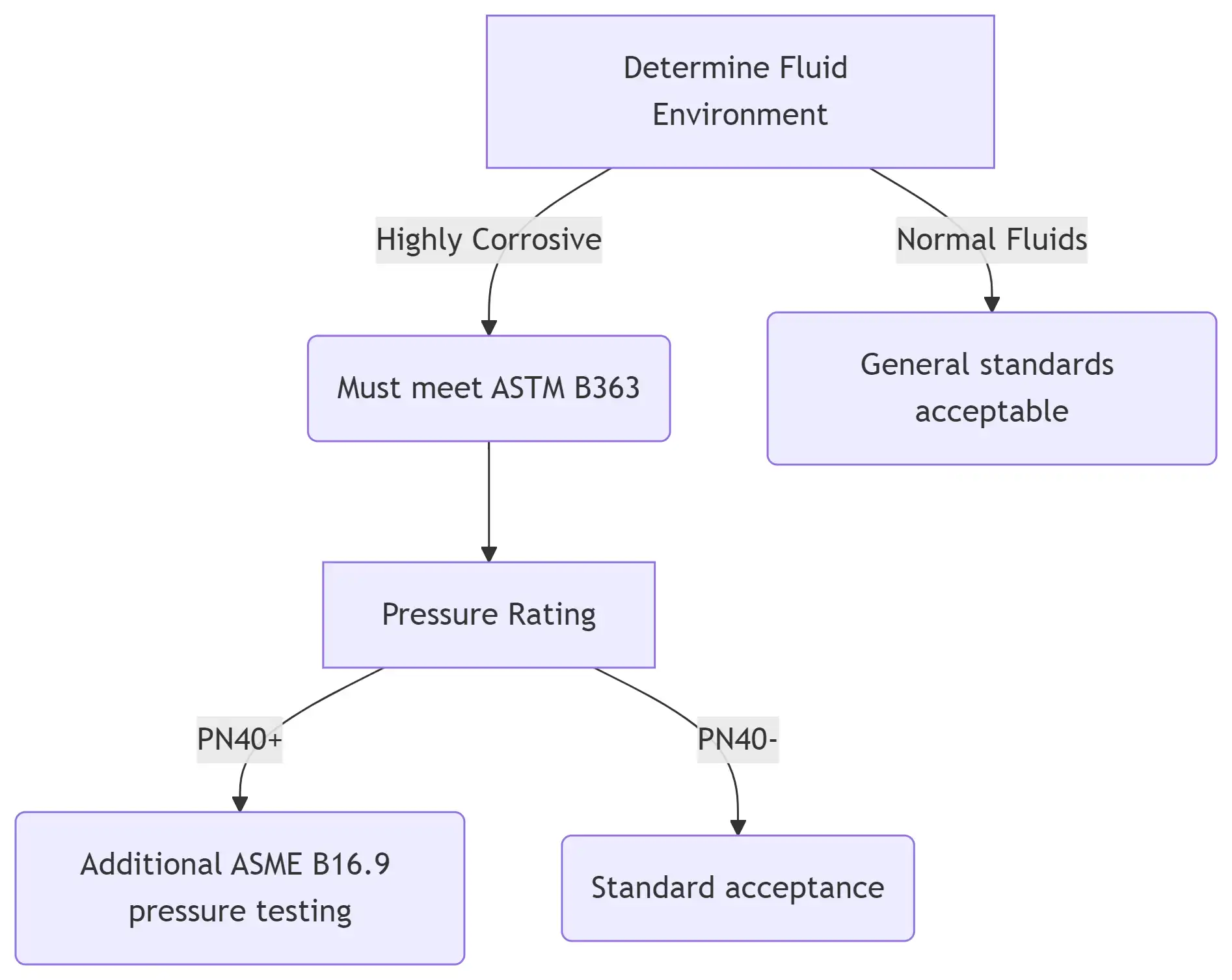

Procurement Decision Tree
Conclusion: Standards as the Foundation of Quality
Understanding the fundamental differences between ASTM B363 and ASME B16.9 enables engineers to:
✔️ Prevent premature failures from standard misuse
✔️ Optimize procurement costs (avoid over-specification)
✔️ Enhance overall system reliability
