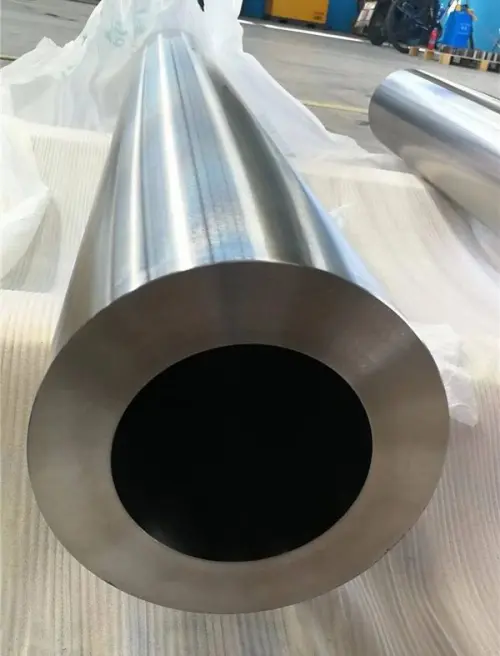

Titanium tubes, due to their excellent corrosion resistance, high strength, and low density, are widely used in aerospace, shipbuilding, chemical engineering, and other fields with stringent material performance requirements. However, during actual use, titanium tubes may become damaged due to various reasons. In such cases, repair welding becomes an effective repair method. Proper repair welding techniques not only restore the performance of titanium tubes but also ensure their safety and reliability during use. As a professional information platform in the industry, Titanium Home closely monitors the development of titanium tube repair welding technology. This article will detail the process steps and key considerations for repairing titanium tubes.
Preparation Before Repair Welding
The first step in repair welding is thorough preparation, and cleaning and preparing the titanium tube surface to be repaired is crucial. Impurities such as oil, oxides, and dust on the titanium tube surface can affect weld quality and lead to weld defects. Therefore, a thorough surface cleaning method is essential.
For oil stains, wipe with an organic solvent such as acetone or alcohol to ensure complete removal of the surface oil. For oxides, mechanical polishing can be used, using tools such as sandpaper and a wire brush, to remove the oxide layer until a shiny metal surface is exposed. When polishing, apply even pressure to avoid over-polishing, which may damage the titanium tube surface. During cleaning, ensure the operating environment is clean to prevent new impurities from adhering to the titanium tube surface.
Welding Method Selection
The physical and chemical properties of titanium alloys dictate the specificity of the welding method used. Currently, TIG welding (argon arc welding) or laser welding are commonly used for titanium alloy repair welding.
TIG Welding (argon arc welding)
TIG welding is a commonly used titanium alloy welding method. It uses a non-consumable tungsten electrode and is performed under the protection of argon gas. Argon, as a shielding gas, effectively isolates the atmosphere, preventing the titanium alloy from reacting with oxygen, nitrogen, and other gases at high temperatures, thereby preventing defects such as porosity and cracks in the weld joint. TIG welding offers advantages such as high weld quality, aesthetically pleasing weld appearance, and ease of control. It is suitable for repair welding titanium tubes of various thicknesses and shapes. During operation, welders can control welding heat input by adjusting parameters such as welding current and arc voltage to achieve high-quality welds.
Laser Welding
Laser welding utilizes a high-energy-density laser beam as a heat source. It offers advantages such as concentrated energy, high welding speed, and a small heat-affected zone. For titanium tube repair welding, laser welding enables precise welding, minimizes thermal impact on surrounding materials, and thus reduces weld distortion and residual stress. Laser welding also allows for automated welding, improving welding efficiency and quality consistency. However, laser welding equipment is relatively expensive and requires relatively high operator skill.
In actual application, the appropriate welding method should be selected based on a comprehensive consideration of factors such as the titanium tube's material, thickness, degree of damage, and production conditions.
Repair Welding Procedure
After completing preparatory work and selecting a welding method, repair welding can begin. During repair welding, the repair area should be precisely determined based on the actual damage to the titanium tube. For small, localized damage, spot welding or short welds can be used; for larger areas, continuous welding is required. During the welding process, strict control of welding parameters, including welding current, arc voltage, and welding speed, is crucial. The welding current and arc voltage directly affect the heat input. Excessive heat input can lead to overheating of the titanium tube, resulting in coarse grains and weld deformation. Insufficient heat input can lead to poor weld fusion, resulting in defects such as incomplete fusion and slag inclusions. Welding at too high a speed can lead to poor weld formation and the formation of porosity. Welding at too slow a speed can increase heat input and increase weld deformation. Therefore, optimal welding parameters should be determined through testing based on the material and thickness of the titanium tube, and these parameters should be maintained stable throughout the welding process.
Also, proper welding operation is crucial. The welder should maintain a correct welding posture and carefully control the distance and angle between the welding gun or laser beam and the titanium tube to ensure a uniform and aesthetically pleasing weld. When performing multi-pass welding, careful cleaning between passes is crucial. The oxide film and spatter on the surface of the previous weld must be removed to ensure good fusion between layers.
Post-Weld Treatment
After repair welding, necessary heat treatment and surface treatment of the weld are crucial steps in achieving the desired performance requirements.
Heat Treatment
The purpose of heat treatment is to eliminate weld residual stress and improve the microstructure and properties of the welded joint. Annealing is a common heat treatment method for titanium tube repair welding. Annealing involves heating the welded joint to an appropriate temperature, holding it for a specified period, and then slowly cooling it. Annealing refines the grain size, eliminates internal stress, improves the plasticity and toughness of the welded joint, and reduces the tendency to crack. The specific annealing temperature and holding time should be determined based on the titanium tube material and welding process.
Surface Treatment
Surface treatment is primarily intended to further enhance the corrosion resistance and appearance of the welded joint. Mechanical polishing, chemical polishing, or electrochemical polishing can be used to polish the welded joint to remove defects such as oxide films and burrs generated during welding, resulting in a smooth and even surface. Coating treatments, such as spraying anti-corrosion coatings or anodizing, can also be applied as needed to enhance the corrosion resistance of the titanium tube surface.
Key Considerations During Repair Welding
When repairing titanium tubes, special attention must be paid to controlling parameters such as welding temperature, welding atmosphere, and welding speed to ensure weld quality and avoid defects that could affect the performance of the tube.
Welding Temperature Control
Titanium alloys react easily with gases like oxygen and nitrogen at high temperatures, forming brittle oxides and nitrides, which can degrade the performance of the welded joint. Therefore, the welding temperature must be strictly controlled during the welding process to avoid excessive temperatures. This can be achieved by selecting appropriate welding methods and parameters, as well as employing preheating and postheating. Preheating reduces the cooling rate of the welded joint, reducing weld stress and also shortening the titanium alloy's contact time with air. Postheating helps eliminate residual weld stress and improve the microstructure of the welded joint.
Welding Atmosphere Control
The welding atmosphere is crucial to the quality of titanium alloy welds. During welding, an inert gas (such as argon) must be used to shield the weld from the atmosphere. Ensure the purity and flow rate of the shielding gas meet requirements to avoid contamination of impurities such as oxygen and nitrogen. Additionally, ensure adequate ventilation in the welding environment to prevent outside air from entering the welding area.
Welding Speed Control
As mentioned above, welding speed has a significant impact on weld quality. While ensuring weld quality, the welding speed should be appropriately selected based on the material and thickness of the titanium tube. Excessively fast welding speeds can lead to defects such as incomplete fusion and porosity; excessively slow welding speeds increase heat input, resulting in greater weld distortion. Therefore, welders need to master the appropriate welding speed through continuous practice and experience.
The Importance of Consulting a Professional Engineer
Because titanium tube repair welding is a complex and specialized process, it is recommended to consult an experienced welding engineer before proceeding. A welding engineer can provide professional technical guidance and advice based on the specific conditions of the titanium tube, such as the material, degree of damage, and intended use. They can assist in selecting the appropriate welding method, welding parameters, and post-weld treatment procedures to ensure effective and safe repairs. Furthermore, a welding engineer can provide on-site supervision and guidance during the repair process, promptly resolving any issues and ensuring a smooth repair.
Titanium tube repair welding is a highly technical process. By carefully preparing for the repair, selecting the appropriate welding method, strictly controlling the repair process and post-weld treatment, and paying attention to key parameters during the welding process, damaged titanium tubes can be effectively repaired and their performance restored. Consulting with experienced welding engineers can also provide strong technical support for the repair work, ensuring both effectiveness and safety. In practical applications, continuous experience should be gained to improve the repair process to meet the quality requirements of titanium tubes in various fields.
