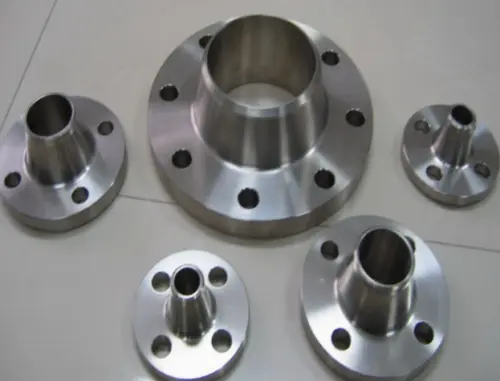

As an important metal structural material, titanium flanges occupy a key position in numerous industrial sectors due to their excellent properties, such as high strength, low density, and corrosion resistance. Hot working, encompassing processes such as forging, rolling, and extrusion, is a fundamental method for producing semi-finished and finished titanium flanges. However, the microstructure of it is extremely sensitive to hot working processes. The correct selection and precise control of process parameters are crucial for ensuring the product's dimensional accuracy and internal quality. As an information platform for the titanium industry, Titanium Home's related reports provide a wealth of case studies and data support for titanium flange processing research, helping to deepen understanding of key process points and improve product quality.
The Importance of Titanium Flange Hot Working Process Parameters
Given the high sensitivity of titanium flange microstructure to hot working processes, the selection and control of process parameters are crucial. Appropriate process parameters not only ensure that the product meets precise dimensional requirements but also ensure the uniformity and stability of the internal structure, thereby improving the product's overall performance. For example, during the forging process, even slight variations in parameters such as heating temperature, degree of deformation, and cooling rate can lead to defects such as cracks and coarse grains, seriously impacting product quality and service life. Therefore, precise control of process parameters is a key step in the hot working of titanium flanges.
Characteristics and Challenges of Hot Working of Titanium Flanges
1. High Deformation Resistance and Narrow Deformation Temperature Range
Compared to general metal structural materials, it has greater deformation resistance and a narrow deformation temperature range. This is primarily due to titanium's hexagonal crystal structure, which makes it less susceptible to deformation at room temperature. To improve the plasticity of titanium flanges, β processing is typically performed by heating the metal to the β phase above the phase transformation point. However, it has a significant tendency to overheat, and high-temperature heating causes rapid growth of the β grains. If the deformation is insufficient, the coarse Widmanstätten structure formed after cooling significantly reduces the alloy's plasticity and fatigue strength. This overheated structure is difficult to eliminate during subsequent heat treatment. Therefore, during production, the starting temperature of the hot working process for the finished product or the preceding hot working process must not exceed the critical point Tb, which poses a significant challenge to process control.
2. Sensitivity of Deformation Resistance to Temperature and Rate
Its deformation resistance is highly sensitive to decreasing the deformation temperature or increasing the deformation rate. When the stop forging temperature is too low, the deformation resistance increases dramatically, potentially preventing the workpiece from achieving the desired degree of deformation and even causing defects such as cracks. This sensitivity limits the processing temperature range for most titanium flanges to 800-950°C. This narrow temperature range is difficult to precisely control in practice. However, for the initial casting of the ingot, the temperature range can be appropriately expanded to 850-1150°C. During subsequent heat treatments, the temperature can be gradually lowered to improve the material's microstructure.
Temperature Control Strategies During Titanium Flange Processing
1. Precise Control of the Finished Product Processing Temperature Range
Due to the two constraints mentioned above, the finished product processing temperature range for most titanium flanges is narrow and difficult to control. In actual production, advanced temperature monitoring equipment, such as infrared thermometers, is required to monitor workpiece temperature changes in real time. Furthermore, operators must possess extensive experience and sophisticated skills to adjust the heating power and deformation speed according to temperature fluctuations to ensure that the processing temperature remains within the appropriate range of 800-950°C.
2. Temperature Adjustment for Coiling and Subsequent Fire Processing
For cogging, a higher temperature range (850-1150°C) helps reduce deformation resistance and facilitates plastic deformation. During subsequent fire processing, gradually lowering the temperature can refine the grain size and improve the overall material properties. For example, after the first fire, the temperature is lowered to 1000-1050°C for the second fire. Through multiple temperature adjustments and deformation processes, the material structure is gradually optimized, improving product quality.
Controlling the Deformation Rate and Amount During Titanium Flange Processing
1. Problems Caused by Poor Thermal Conductivity
Titanium flange alloys have poor thermal conductivity. During rapid deformation, the core of the workpiece heats up rapidly. Due to slow heat transfer, this core can easily overheat. Meanwhile, the surface temperature of the workpiece remains relatively low, making surface cracks more likely to form during deformation. This internal and external temperature difference, resulting in defects, seriously affects product quality and service life.
2. Coordination of Deformation Rate and Amount
To avoid the aforementioned problems, precise control of the deformation rate and amount is crucial during processing. Excessive deformation rates can lead to increased core overheating, while excessive deformation can cause surface cracks to develop. Therefore, the deformation rate and deformation amount should be appropriately selected based on material properties and processing requirements. For example, during rolling, a multi-pass rolling process with small deformation amounts can be employed, with the deformation amount per pass controlled between 10% and 20%. At the same time, the rolling speed can be appropriately reduced to minimize core overheating and surface cracking.
Conclusion
The thermal processing of titanium flanges is a complex and sophisticated technology that involves multiple aspects, including process parameter selection, temperature control, and coordination between deformation rate and deformation amount. Their unique thermal processing characteristics, such as high deformation resistance, narrow deformation temperature range, and poor thermal conductivity, present numerous challenges to the production process. By thoroughly analyzing these characteristics and implementing appropriate process control strategies, such as precise control of process parameters, appropriate adjustment of temperature range, and coordination between deformation rate and deformation amount, the product quality of titanium flanges can be effectively improved, meeting the demand for high-performance titanium flanges in various applications. In the future, with the continuous development of materials science and processing technology, the thermal processing technology of titanium flanges is expected to continue improving and innovating, providing strong support for the upgrading and development of related industries.
